ESD Toe Grounders

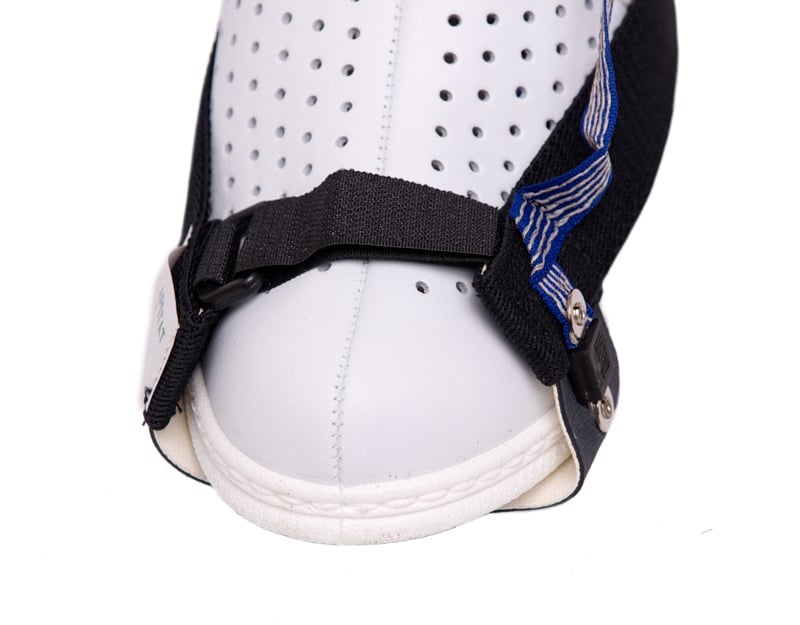

Elasticated, non-marking, ESD toe grounder incorporating a 1 meg-ohm safety resistor. Fully adjustable with a hook and loop strap fastening. Can be fitted to any shoe size or style. Ideal for grounding heeled shoes. Re-usable and designed for repeated use . One size fits all.

Quantity Discount Per Item Price
25+ £4.94 £4.45 £4.45

£4.94 excl. VAT

Description

ESD toe grounders are fully adjustable and can be fitted to any shoe size or style with the adjustable hook and loop strap fastening. They are suitable to use when heel grounders are not practical (for example, heeled shoes). ESD toe grounders are robust, hard wearing, and have elasticated straps for good support and comfort. Designed for repeated use, the ESD toe grounder provides long term ESD protection to all personnel when used in conjunction with grounded ESD flooring or matting. Each toe grounder incorporates a 1 meg ohm safety resistor. All grounding products are manufactured to the very highest quality to ensure high comfort and long life. Please note: It is recommended that one toe grounder is to be worn on each foot.

Construction:

Constructed using a two layer rubber sheet, insulative white and conductive black, attached to 3⁄4” elastic garter, with one meg ohm resistor and conductive tab, assembled with plastic connectors and hook and loop tape for adjustable feature. Rubber is punched with flat washer to the plastic connector through ultrasonic sealing.

Key Features:

  • Black rubber surface conductivity: 8 x 10^(4) ohms
  • White rubber surface conductivity: 1 x 10^(12) ohms
  • Metal film resistor: 1 meg ohm + 20%
  • Conductive tab: 160 ohms / inch (max.)
  • Plastic parts: Made of static dissipative nylon material
  • Markings: Our logo with date code
  • One size fits all, with its hook and loop adjustable fastening
  • Ideal solution for grounding heeled shoes
  • Elasticated and non-marking
  • Durable and hard-wearing
  • Re-usable and designed for repeated use
  • Compliant to the IEC 61340-5-1 Standard
  • RoHS and REACH compliant
  • CE approved

Dimensions:

  • Toe ground length: 180± 10mm (garter) x 95± 10mm (rubber)
  • Garter width: 19 -20mm
  • Rubber width: 35 ± 1mm
  • Conductive tab length: 430 ± 10mm
  • Tab width: 12 – 13mm
  • Hook tape length: 95 ± 10mm
  • Loop tape length: 120 ± 10mm
  • Hook and loop width: 19 – 20mm

ESD Standards & Regulations Compliance:

ESD safe label - Bondline IEC-61340-5-1 CE Icon WEB-min-alt CE approved
bondline RoHS compliant bondline REACH compliant

View our full range of ESD heel strap products.

Additional information

Weight N/A
Select a product:

TG2 – Toe Grounder – Hook & Loop Fastening

Technical Datasheet

Technical Datasheet:
