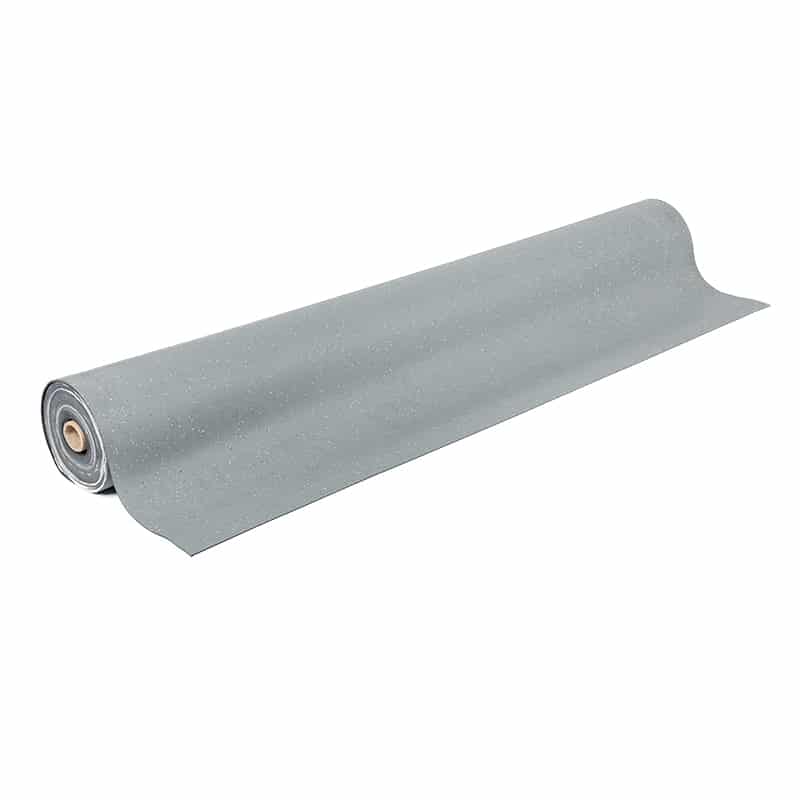

ESD Rubber Floor Material

ESD rubber floor material from Bondline is designed to safely ground operators to Earth in an ESD protected area.

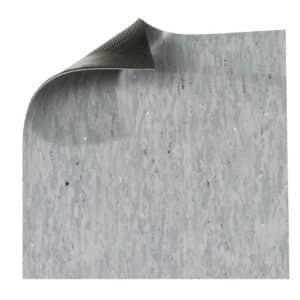

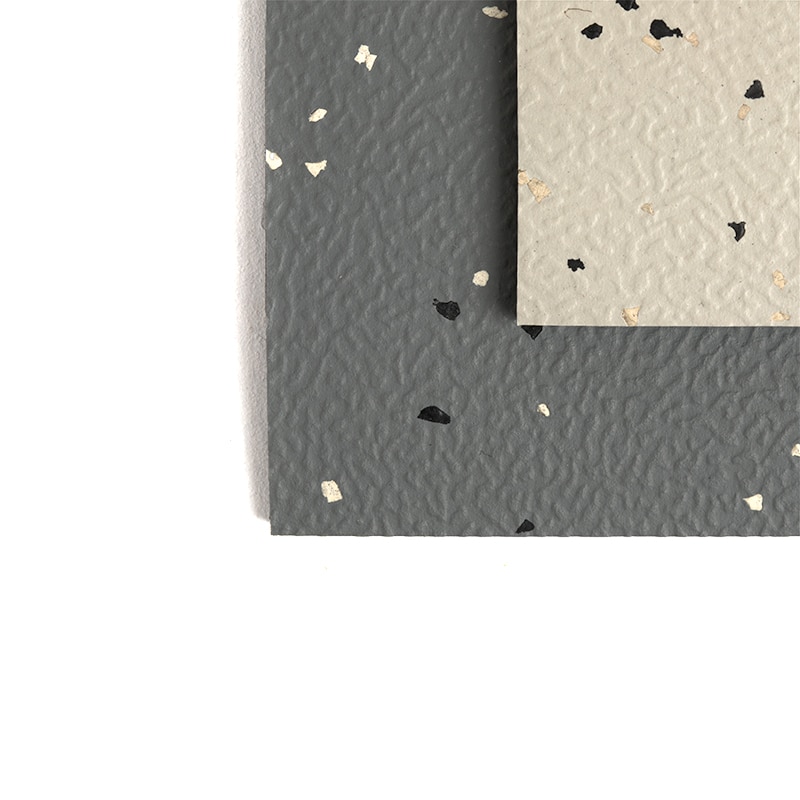

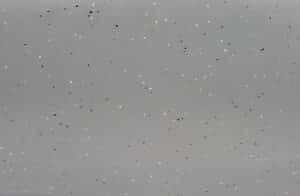

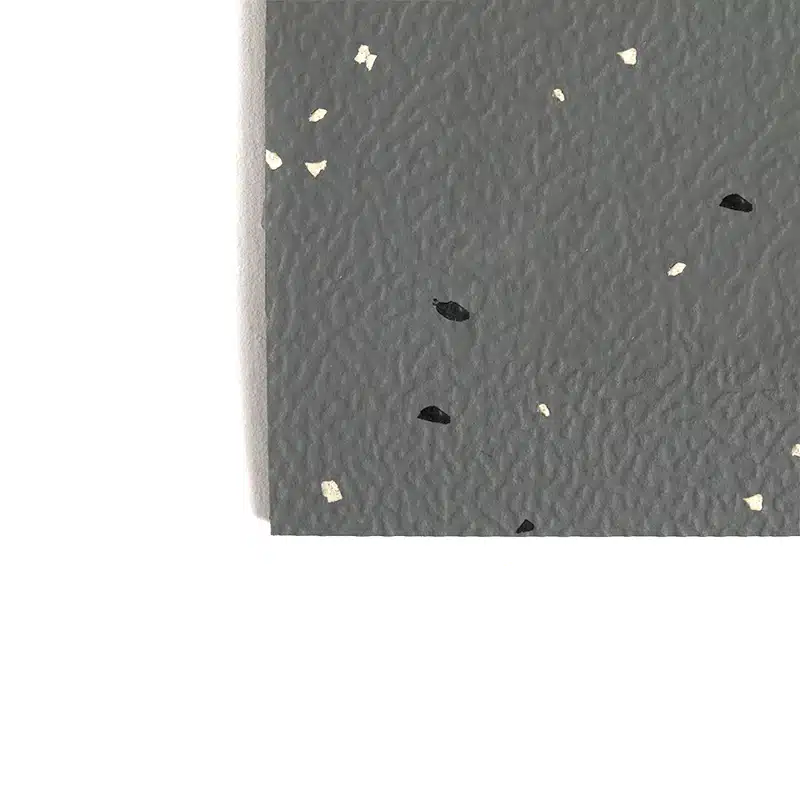

Constructed with two layers, the rubber ESD floor matting consists of a static dissipative surface and a conductive backing. The black conductive bottom layer provides a superior and consistent ground path to Earth. The top layer of the floor mat is smooth, allowing for easy cleaning with a Killstat floor cleaner. The ESD rubber floor material comes in two colour options including light grey fleck and dark grey fleck. The matting fully complies to the DIN EN 61340-5-1 ESD standard and has an insulation resistance that accords to DIN VDE 0100-410 (personnel safety). The rubber material is heat resistant and remains in its same form even in cold and warmer conditions. The ESD properties will not fluctuate. The rubber material will not melt like other vinyl floor material, making it very durable.

Anti-static floor matting is abrasion-resistant and suitable for chair castors (depending on substrate). The ESD floor matting is 2.5mm thick as standard. The maximum roll size is 1500mm wide and 10 metres long. Installation of the rubber ESD floor material can be secured with double sided tape.

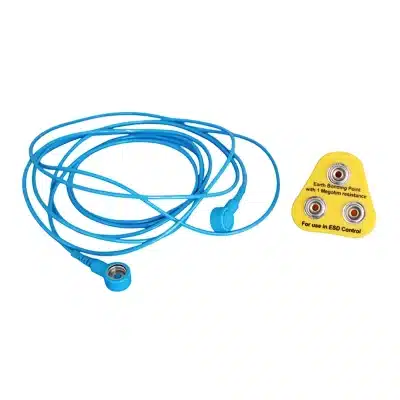

Please note, the rubber ESD floor mat must be grounded to Earth via a grounding cable and Earth bonding point to enable static charges to be grounded. ESD heel straps or ESD footwear must be worn in conjunction with any ESD floor material to prevent a build-up of static charge. The matting should be maintained on a regular basis for maximum efficiency. Custom sizes available on request to suit any requirement.

Key Features:

• Two colour options: Light and dark grey fleck.
• Two layers: Static dissipative surface, conductive backing.
• Manufactured to the highest quality to prevent static build-up.
• Rubber remains in its same form even in cold or warmer conditions (ESD properties will not fluctuate).
• Abrasion-resistant and heat resistant.
• Suitable for chair castors (depending on substrate).
• Smooth surface allows for easy cleaning.
• Installation can be secured with double-sided tape.
• Custom sizes available to suit any requirement.
• Complies to DIN EN 61340-5-1 standards.
• Insulation resistance accords to DIN VDE 0100-410 (personnel safety).

Specification:

• Material: Synthetic rubber
• Construction: Two layer, static dissipative top surface, black conductive bottom layer
• Thickness: 2.50mm.

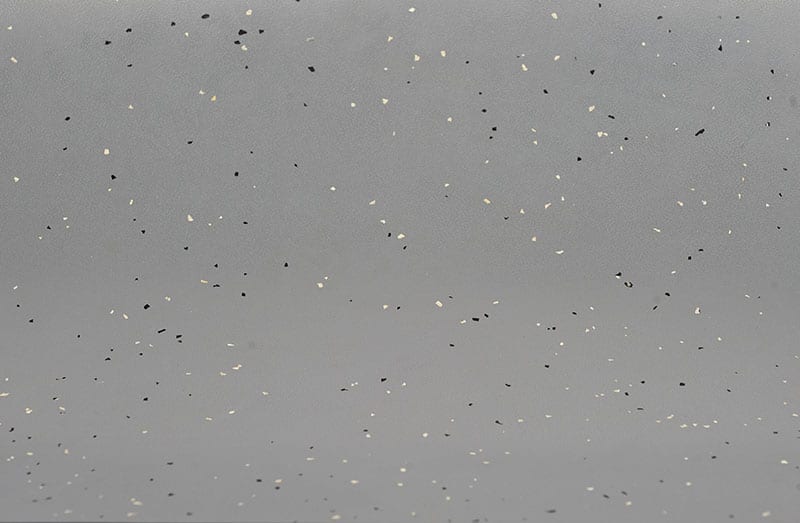

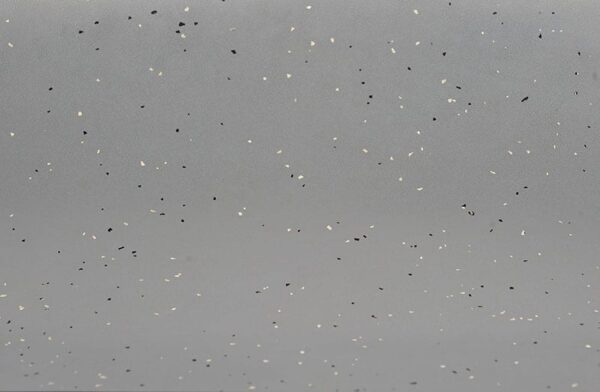

• Colour: Dark grey or light grey fleck.
• Static dissipative top surface: 10^(6) – 10^(9)
• Black conductive bottom layer: 10^(3) – 10^(6)
• Resistance to ground: Less than 10^(9)
• Electrostatic dissipation time: <0.1s
• Scratch resistance: No clear scratch
• Heat resistance: Heat and solder resistant. Rubber material will not melt like other vinyl floor material.

ESD Standards & Regulations Compliance:

	IEC-61340-5-1		CE approved
	RoHS compliant		REACH compliant

Due to variations in computer monitor displays, colour shown may not be exact. All bespoke cut mat sizes will have a +/-10% tolerance dependent on size.
