Description

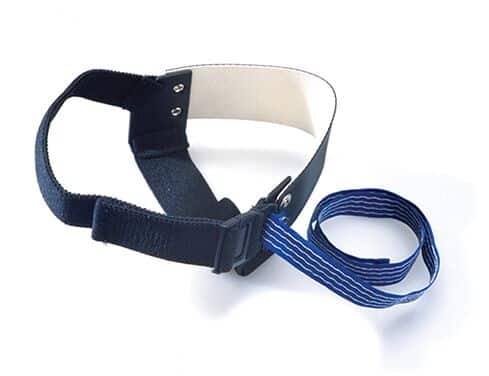

Part of our premium range, this durable, quick release ESD heel strap is designed with a simple clip fastener for quick open and close function. The quick release ESD heel strap ensures continuous ESD protection when used in conjunction with grounded ESD flooring or matting. The heel strap can be used for long-term use and offers a convenient alternative to a hook and loop strap. Each heel strap incorporates a 1 meg ohm safety resistor as standard.
The quick release ESD heel strap is made with a soft, two-layer rubber material, with black conductive on the outside and white on the inside to avoid any shoe marking. We recommend testing the heel straps before every use with a CWST3 footwear test station.

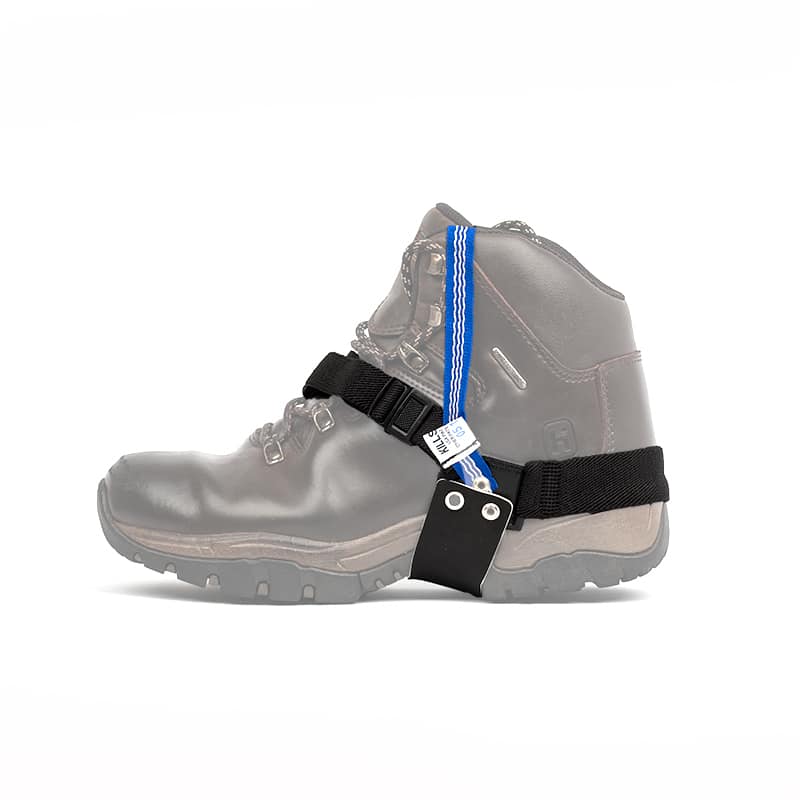

All grounding products are manufactured to the highest quality to ensure high comfort and long life. Heel straps should be worn on both feet for effective static dissipation to ground.
Quick Release ESD Heel Strap Features:
- Construction: Strip of two-layered rubber sheet, insulate white and conductive back, attached to 1″ garter forming heel cup and 3/4″ elastic garter, with built-in 1 meg-ohm resistor on plastic connector, joined in series with the conductive tab and assembled with quick release clip.
- Black rubber surface conductivity: 8 x 10^(4) ohms
- White rubber surface conductivity: 1 x 10^(12) ohms
- Metal film resistor: 1 meg ohm + 20%
- Conductive tab: 160 ohms/inch (max.)
- Markings: With customer logo and date code
- Plastic parts: Made of antistatic nylon material
- Colour: Available in black/white rubber, black plastic connector and black quick release clip. (Elastic garter colours are available on request.)

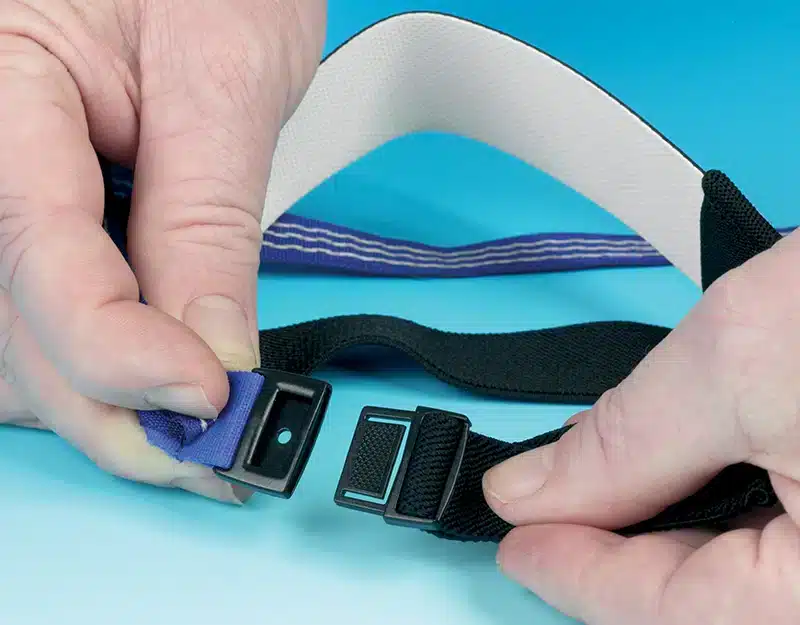

- Quick-release clip for quick open and close function
- Custom configurations available on request
- Conforms to IEC 61340-5-1, ANSI-ESD S-20.20 and EIA 625 Standards
- RoHS and REACH compliant
- CE approved
HS2QR Dimensions:
- Cutting length: garter – 305 + 2mm & 76 + 2mm, garter width – 19 ~ 20mm
- Cutting length: garter – 130 + 2mm, garter width – 25 ~ 26mm
- Cutting length: rubber –147 + 2mm, rubber width – 12 ~ 13mm
- Cutting length: tab– 432 + 2mm, tab width – 12 + 13mm
ESD Standards & Regulations Compliance:
 | IEC-61340-5-1 |  | CE approved |
 | RoHS compliant |  | REACH compliant |
View our full range of ESD heel strap products.
