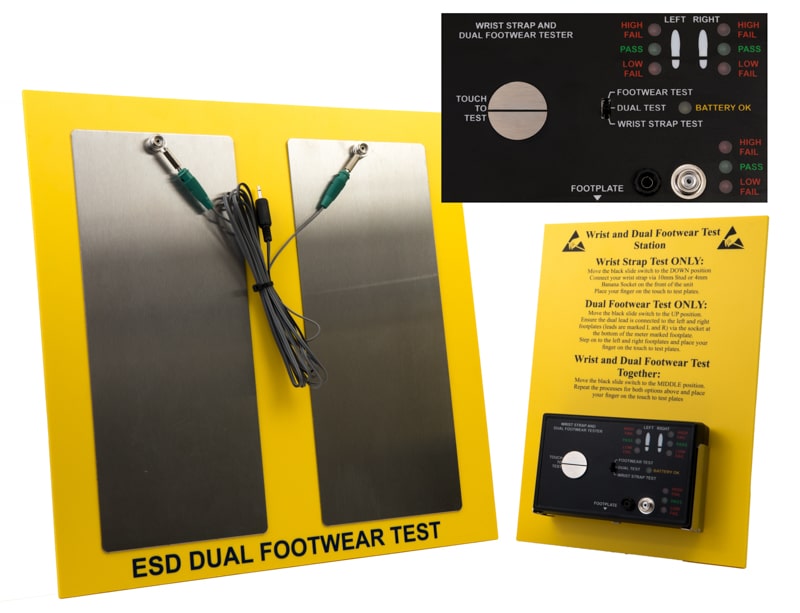

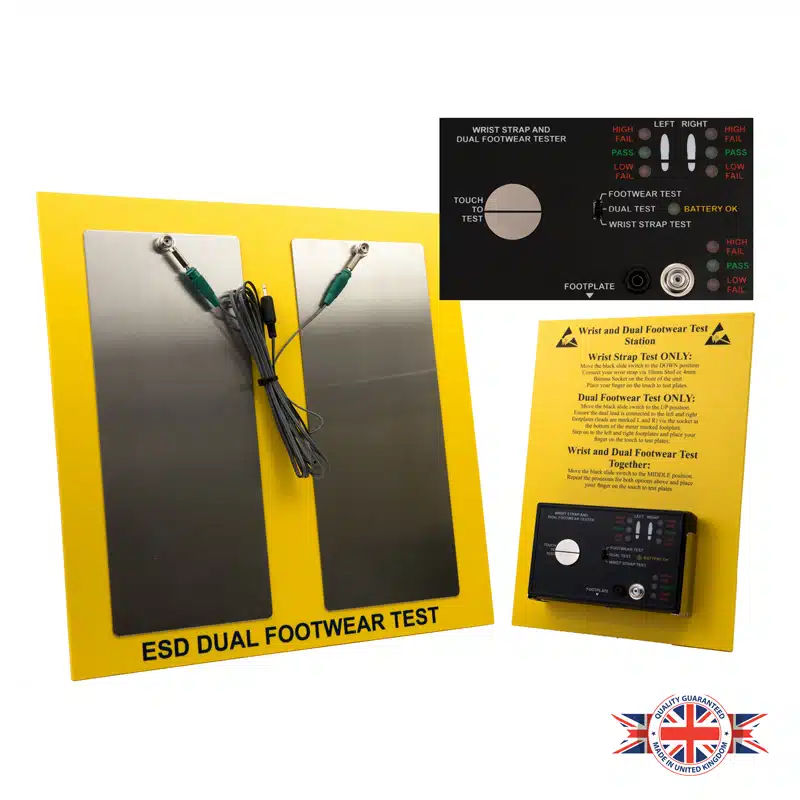

Dual ESD Footwear and Wrist Strap Tester

Dual ESD Footwear and Wrist Strap Tester from Bondline gives the user the ability to not only test their wrist strap but also their footwear (both feet) at the same time. The tester quickly measures the resistance of fitted wrist straps, and with the footwear plate fitted, heel straps and ESD shoes with ease. The ESD wrist-strap test unit is wall mounted and is sold as a complete set with a calibration certificate. Three test settings. Manufactured in the UK. CE approved.

£290.00 excl. VAT

Description

Quickly measure the resistance of fitted anti-static wrist straps, and with the footwear plate fitted, ESD heel straps and shoes with Bondline’s Dual ESD Footwear and Wrist Strap Tester.

Bondline’s unique, new combination Dual ESD Footwear and Wrist-Strap Tester gives the user the ability to not only test their wrist strap but also their footwear (both feet) at the same time. This unit quickly measures the resistance of fitted wrist straps, and with the footwear plate fitted, heel straps and ESD shoes with ease. There are three settings: wrist strap only test, footwear only test and also the dual test feature where you can test your wrist strap and footwear at the same time. The unit will pass equipment within the range of 750KΩ to 35MΩ, meeting the EN IEC 61340-5-1 specification. The ESD wrist-strap test unit is wall mounted and is sold as a complete set with a calibration certificate. Our Dual ESD Footwear and Wrist-Strap Tester is manufactured in the United Kingdom and is CE approved.

Key Features of Dual ESD Footwear and Wrist Strap Tester:

  • Wrist Strap Test between 750 Kilohms – 35 Megohms.
  • Footwear Test between 100 Kilohms – 100 Megohms.
  • Alternative test limits on request.
  • Weight of tester: 500 grams.
  • Dimensions of tester: 91 x 31.8 x 146 mm.
  • Power supply: 9 volt PP3 alkaline battery.
  • Wall plate material: Foamex.
  • Dual footplate material: Foamex and Stainless Steel.
  • Various wrist strap connections: 10mm stud and 4mm banana socket.
  • Included in the kit: Test unit, wall mounting board, 6 inch (150mm) cord (0 meg-ohm), 6 ft (1.8m) cord (0 meg-ohm), dual footplate, 9V battery.
  • Sold as a complete set with calibration certificate.
  • Calibration required annually.
  • Full calibration service available with Bondline.
  • Customisable: Private labelling, colours, logos, backboards and specific resistance ranges can be made on request.
  • Manufactured to the very highest quality allowing qualification to council directives 89/336/EEC.
  • ESD Susceptibility Symbol printed on backboard.
  • Compliant to IEC 61340-5-1, CE, UKCA, RoHS and REACH standards.
  • Bondline is a leading UK supplier and vast stockist of ESD control equipment.
Made in the UK logo UK Manufactured

Supplied with:

  • Test unit
  • Wall mounting board/plate
  • 6 inch (150mm) cord (0 meg-ohm)
  • 6 ft (1.8m) cord (0 meg-ohm)
  • Dual footplate
  • 9V battery

Meets the Following ESD Standards & Regulations:

ESD safe label - Bondline IEC 61340-5-1 ESD safe label - Bondline  Qualification to council directives 89/336/EEC
CE Icon WEB-min-alt European Conformity UKCA Compliance Icon WEB-min UK Conformity Assessed
bondline RoHS compliant bondline REACH compliant



See our full range of ESD Testing Equipment here – ESD Test Instruments | Bondline.

Additional information

Weight N/A
Select a product:

CWST3 – Dual Footwear And Wrist Strap Tester

Technical Datasheet

Dual ESD Footwear & Wrist Strap Test Station: Technical Datasheet

Instruction Manual

Read our handy Dual Footwear & Wrist Strap Test Station Instruction Manual for instructions on how to use the dual footwear and wrist strap test station correctly. Keep in mind the wrist strap and foot grounders should be worn while being tested.

Watch our short video below to see how to use it correctly.

Customisation

If you would like to customise your Dual ESD Footwear and Wrist Strap Test Station, please make an enquiry to Bondline.

Customisation options include:

  • Private labelling
  • Customised logos
  • Customised backboards
  • Colours
  • Alternative test limits

Contact Us

Our sales and technical team are available to support you with any questions you may have regarding our products, services and more.

To contact our team, please fill in the form below or click here.
