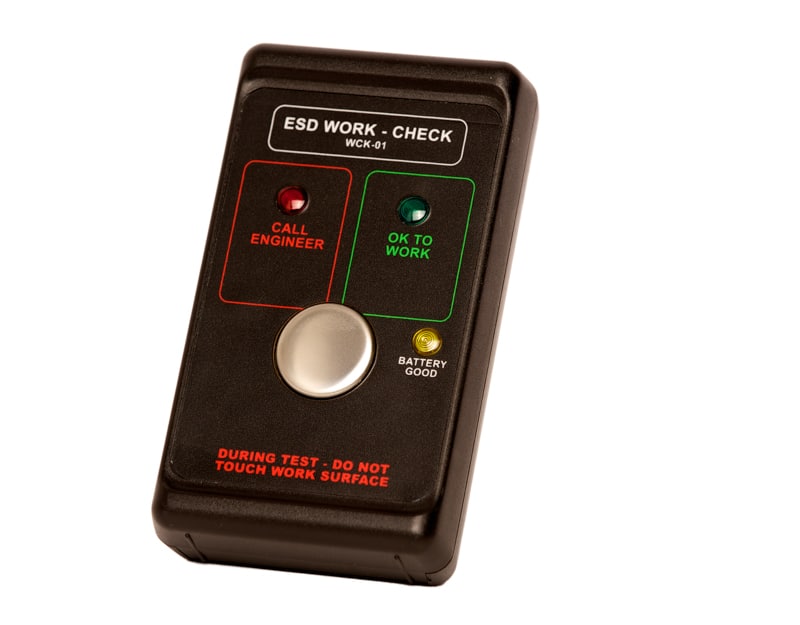

ESD Work Check

The ESD Work Check test instrument is very simple and easy to use. It is very effective for checking and verifying many working features of an ESD workstation such as Earthing point connection to ground and ESD work station dissipation to ground. Manufactured in the UK and CE approved. Supplied with 1 year calibration certificate. Customised printing/logos available on request.

£57.00 excl. VAT

Description

ESD Work Check is an effective unit for checking many working features of an ESD workstation. Simple and easy to use.

This handheld testing instrument is very simple and easy to use. It is very effective for checking and verifying many working features of an ESD workstation. This product is CE approved. All test instruments are manufactured to the highest quality allowing qualification to council directives 89/336/EEC. Each unit is supplied with a 1 year calibration certificate. Calibration is recommended on a regular basis (annually). The test instrument can be customised with logos or special printing on request.

The instrument tests the following with only one simple test:

  • The ESD work surface is clean allowing good contact and static dissipation to ground
  • The ESD work surface is grounded
  • The wrist-strap or ESD footwear/heel-strap is worn correctly and functioning correctly
  • The Earthing point is connected to the ground

Directions:

To use the ESD Work Check, simply place the instrument on the ESD work surface you want to test. When the operator presses the button, the instrument will indicate whether the following features are working to enable an ESD safe working area. If there is a workstation problem, the red light will illuminate and a buzzer will sound. This will indicate to the operator that there is a problem with the workstation and should be checked by an engineer before work commences.

Key Features of ESD Work Check:

  • Power Supply: 9 volt PP3 alkaline battery
  • Accuracy: +/- 10%
  • Tester weight: 350g
  • Tester dimensions: 130mm x 70mm x 25mm
  • Stainless steel single push-button for test activation
  • Relative humidity: 0% to 90% (non-condensing)
  • Temperature range: Operating at 5°C to 49°C (40°F to 120°F), Storage -15°C to +60°C
  • Test voltage: Nominal 9v-stepped to 100v
  • Test range: Pass Green LED <10 Gig-ohms, Fail Red LED >10 Gig-ohms
  • Pass range (ohms): 0 –  2 x 108
  • Supplied with 1 year calibration certificate
  • Customise to bespoke requirements
  • Portable and easy to use
  • All test instruments are manufactured to the very highest quality allowing qualification to council directives 89/336/EEC
  • UK manufactured
  • Compliant to IEC 61340-5-1, CE, UKCA, RoHS and REACH standards
  • Bondline is a leading UK supplier and vast stockist of ESD control equipment
Made in the UK logo UK Manufactured

Meets the Following ESD Standards & Regulations:

ESD safe label - Bondline IEC 61340-5-1 ESD safe label - Bondline  Qualification to council directives 89/336/EEC
CE Icon WEB-min-alt European Conformity UKCA Compliance Icon WEB-min UK Conformity Assessed
bondline RoHS compliant bondline REACH compliant



See our full range of ESD Testing Equipment here – ESD Test Instruments | Bondline.

Additional information

Weight N/A
Select a product:

WCK01 – ESD Work-Check

Technical Datasheet

ESD Work Check – Technical Datasheet

Instruction Guide

ESD Work Check – Instruction Manual Guide

Customisation

If you would like to customise your ESD Work Check tester, please get in touch with our team on +44 (0)1793 511000 or email sales@bondline.co.uk.

Customisation options include:

  • Private labelling
  • Special printing
  • Customised logos
  • Colours
  • Specific resistance ranges to conform to many standards in the electronics industry
