Description

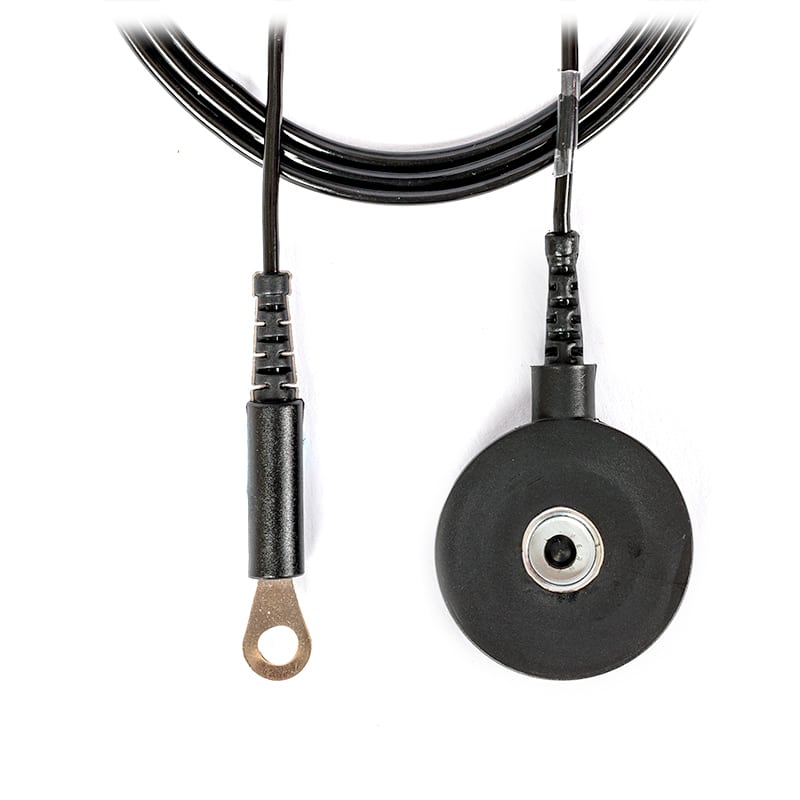

Flat moulded ground cords are ideal for grounding ESD floor mats. The cord is 3 metres long (10ft) and has a moulded-in male snap fastener with 1 meg-ohm resistor on one end. The flat moulded ground cord has two terminations including a 10mm snap and an eyelet terminal. The flat moulded grounding cord from Bondline provides a strong connection to ground. Standard colour is black. Custom grounding products can be manufactured on request.
Key Features:
- 3m long (10ft)
- Provides a strong connection to ground.
- All snaps have 1 meg-ohm safety resistor.
- Eyelet termination and moulded fixture with 10mm snap.
- Ideal for grounding ESD floor mats, providing extra protection to avoid disconnection.
- Premium cord, exceeding 20,000 cycles of bending life test.
- Custom Configurations and colours available on request.
Specifications:
- Conductor: Diameter is 2.5mm, with 7 tinsel wires.
- Insulator: Straight cord is insulated with PU material.
- Electrical Properties: The cord conductor shall have an end to end resistance of not greater than 50 ohms.
- Resistivity: Snap to terminal end = 1 meg-ohm ± 20%.
- Bending Life Test: Exceeds 20,000 cycles of bending life test without any physical damage on the strain relief.
- Breakaway Force: 1 to 5 lbs of pull away force is required to disconnect the snap in a normal disconnect direction.
- Connection Integrity: The tensile strength of the end connections shall be not less than 66% of the tensile strength of the wire, and in no case shall it be less than 5 lbs.
- Hardware: All metal parts shall show no evidence of corrosion and rust after 24 hours submersion to salt solution. Preferably made from stainless steel or brass alloy plated with nickel.
- Markings: With identification logo, resistance value, and date code.
- Colour: Available in black, other colours are available upon request.
- Dimension: 3 metres long (10ft).
- Plastic Parts: Made of static dissipative nylon material.
ESD Standards & Regulations Compliance:
 | IEC 61340-5-1 compliant |  | RoHS compliant |
 | CE approved |  | REACH compliant |
Bespoke Grounding Cords
Our ESD cords can include either a 4mm, 7mm or 10mm female stud. Custom colours are available on request. Please contact Bondline on +44 (0)1793 511000 or sales@bondline.co.uk if you would like to enquire about our bespoke ESD cords.
