Grounding Accessories

Description

Simple, effective grounding accessories that can be added to grounding plugs/snaps for a secure connection.

ESD grounding cords are available in a wide variety of connector types, which can sometimes seem confusing. These include 4mm banana jack plugs, 10mm studs, 10mm female snaps, crocodile clips and M5 eyelets. Fortunately, grounding cord accessories make it easy to convert one connector type to another. This provides a straightforward solution to a common compatibility challenge.

ESD grounding accessories are essential components in ESD grounding systems. They are used in environments where static electricity poses a risk to static sensitive electronic equipment. These accessories enable effective electrical grounding, helping to prevent electrostatic buildup. They are commonly used to connect and integrate ESD-safe mats, continuous monitors, wrist straps, ESD-safe footwear and apparel, and other static-sensitive surfaces.

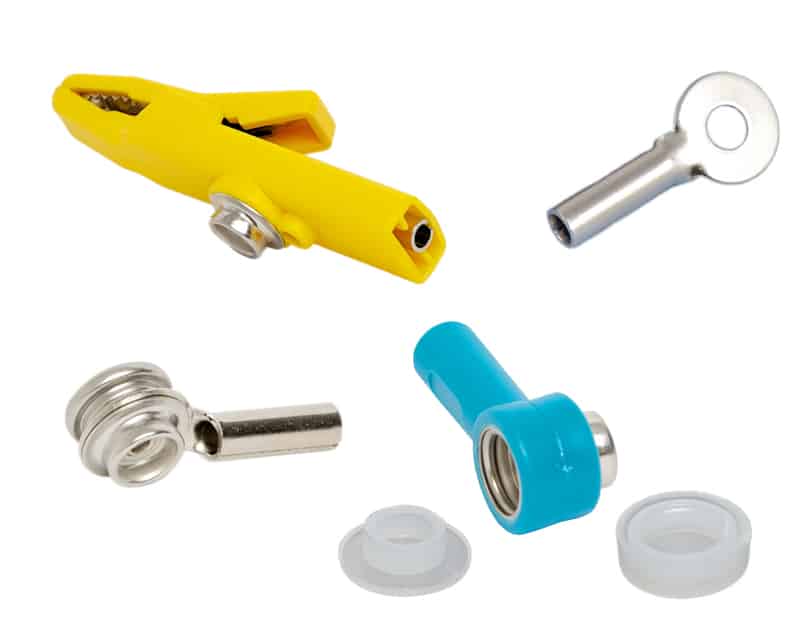

Grounding Accessories Options:

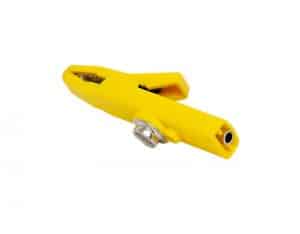

BG Bananagator Heavy Duty Crocodile Clip

The bananagator is an insulated crocodile clip with a heavy duty moulding designed for the connection of cords to grounding points in static controlled areas. The bananagator connector features a 10mm male snap and 4mm jack plug socket.

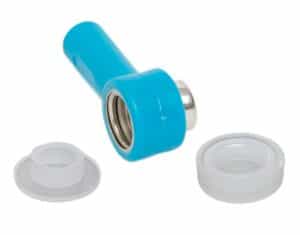

AS10 Adaptor Snap Insulated Adaptor

The adaptor snap is a moulded connector adaptor which features a 10mm male stud, 10mm female stud, 4mm jack plug socket. The adaptor snap includes snap caps. It can be used to convert a 10mm stud to a 4mm banana socket for wrist strap cord attachment. Ideal for use on the workbench or with earth bonding plugs in the factory and in the field.

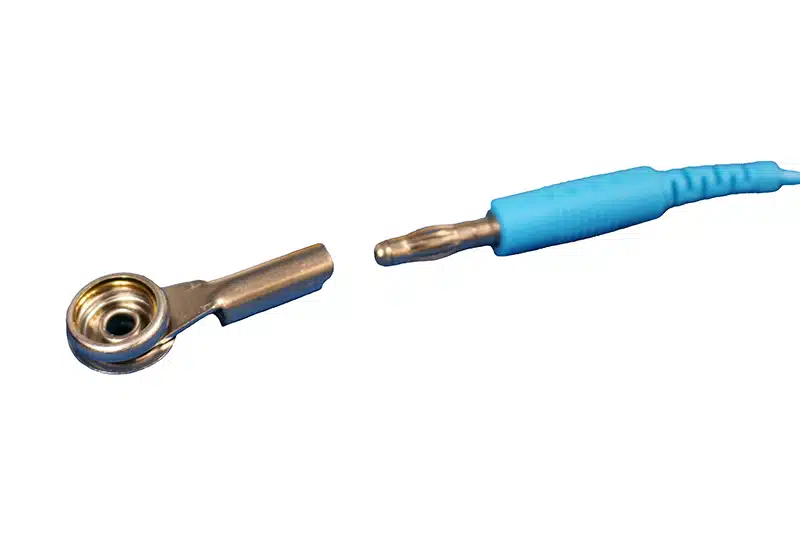

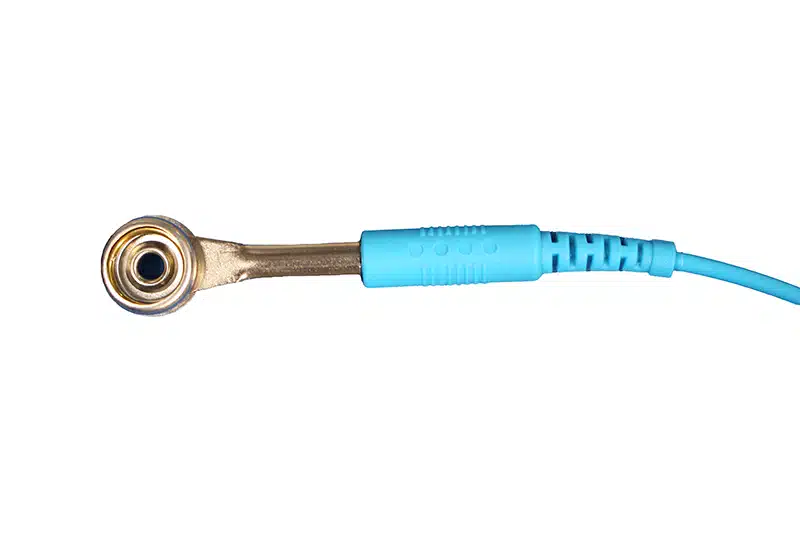

SS10 Stack Snap Stacking Snap

The stack snap features a 4mm banana jack receptacle and 10mm male/10mm female snaps. It can be attached to the jack end of a grounding cord and can be used for grounding anti static mats. The stack snap can connect 1 single wire banana plug, 1 male 10mm snap, and 1 female 10mm snap. It’s intended for use in static control grounding and common point ground applications.

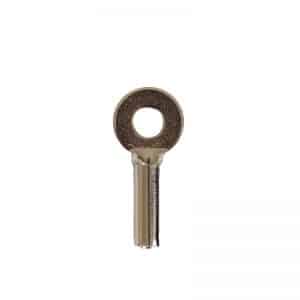

TLUG Terminal Lug Grounding Socket

The terminal lug grounding socket has a 4mm jack to M5 eyelet. It can be attached to the jack end of a grounding cord and connected to an M5 post on an earth bonding plug/point.

Complies With The Following ESD Standards and Regulations:

	IEC 61340-5-1		European Conformity
	RoHS compliant		REACH compliant

View our range of grounding wrist-straps and cords here.
