Description

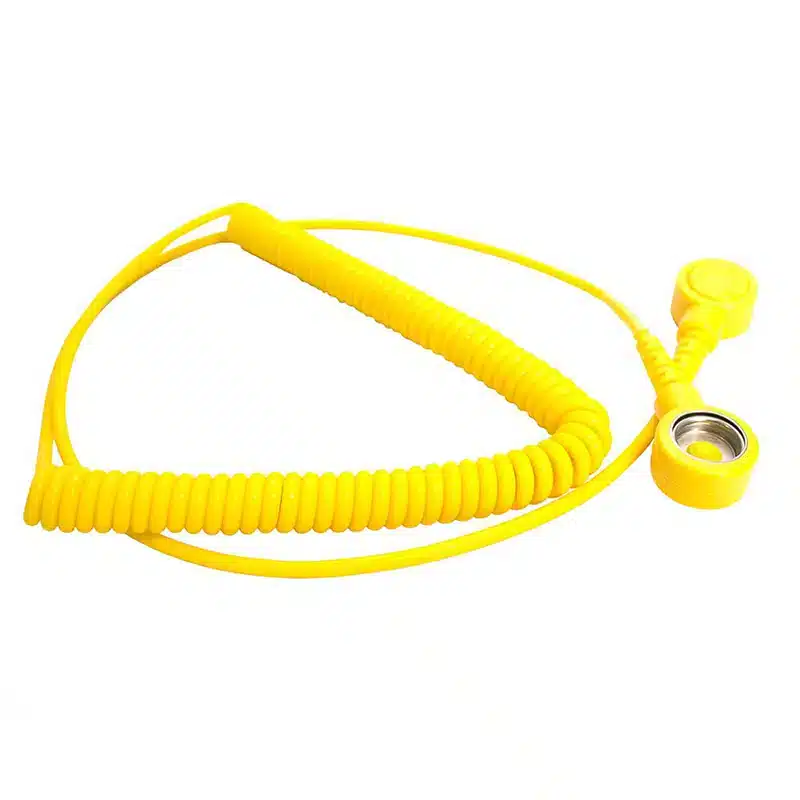

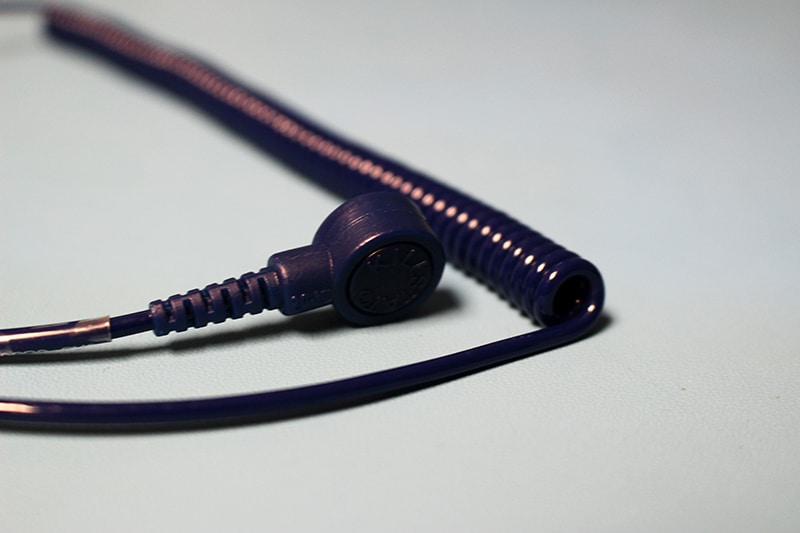

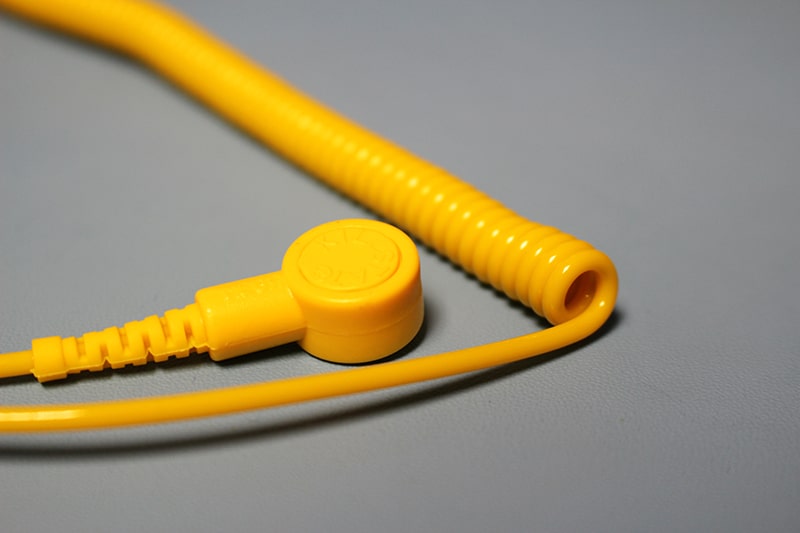

Premium ESD coil cord from Bondline provides a strong connection to ground. This cord can be stretched and recoiled back to its original length, helping to keep a clear working area for efficiency and comfort. Unlike many other ESD cords, our premium ESD coil cord is made with a double thickness material to provide outer layer insulation for complete operator safety. Designed to be used in an ESD working area.

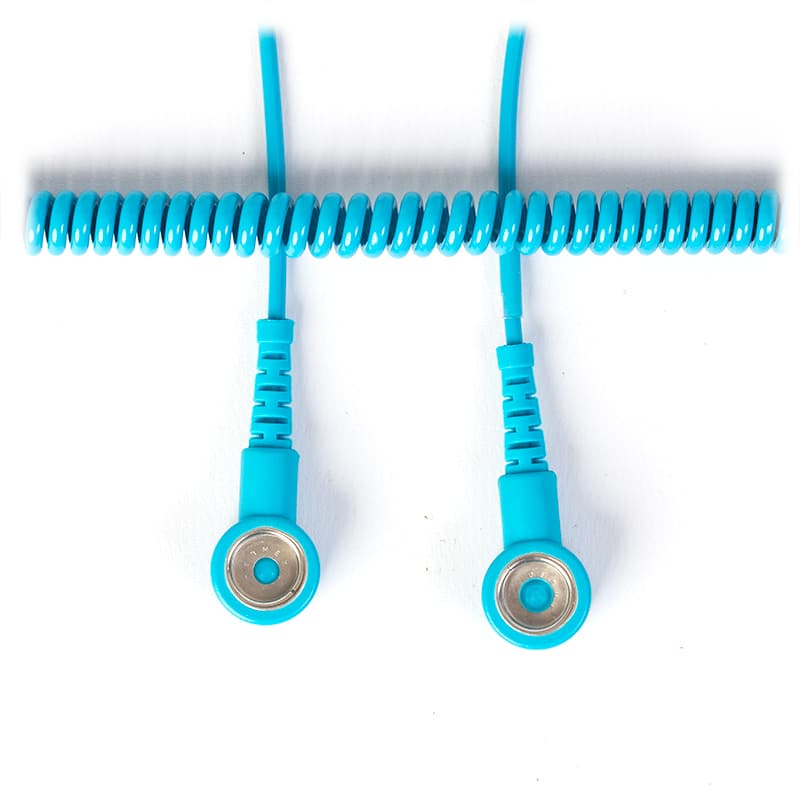

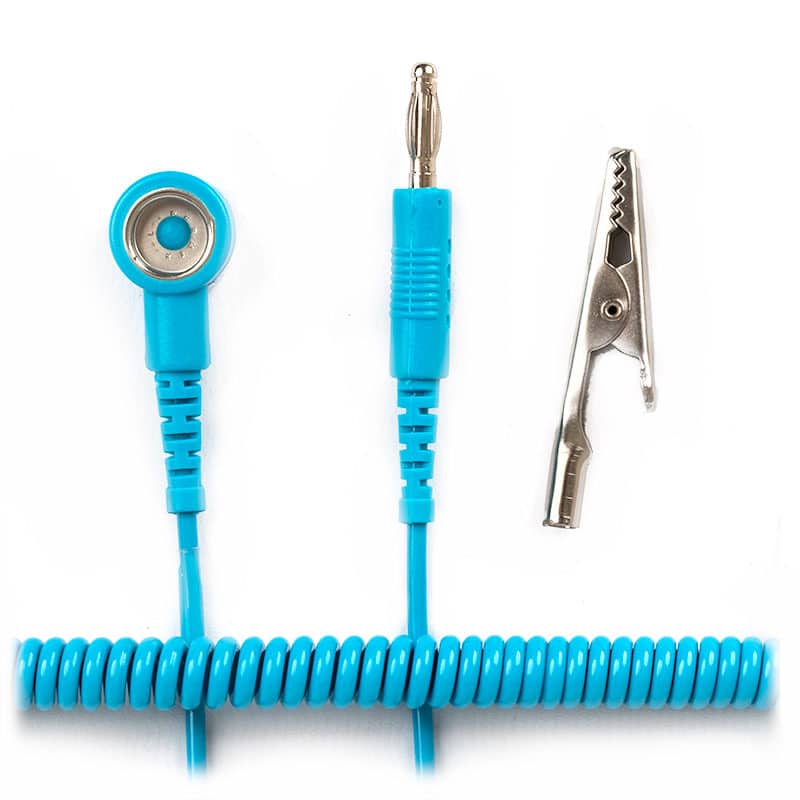

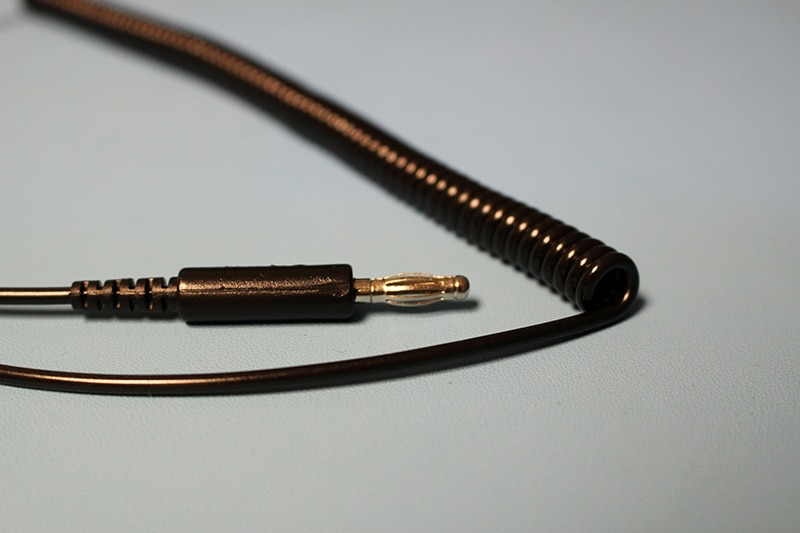

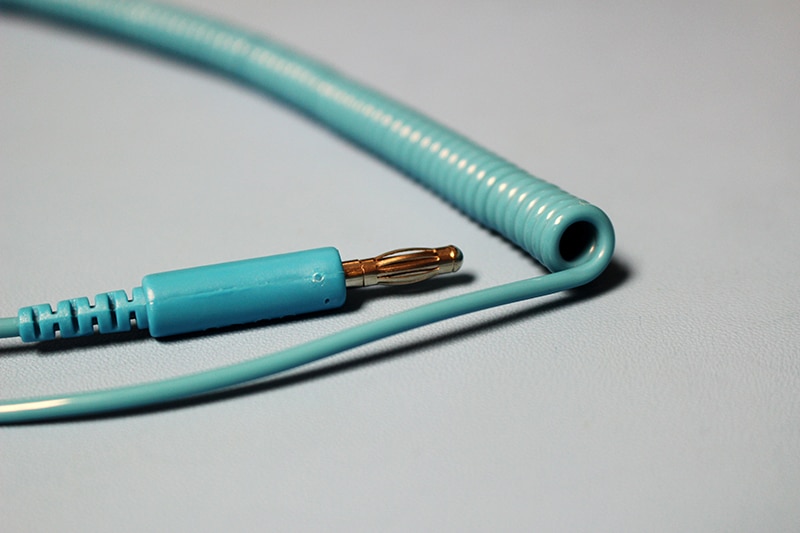

The body housing of the coil cord contains a female snap in any sizes of 4mm, 7mm and 10mm, with or without a resistor, joined in series to the conductor with ordinary banana plug of another snap on the other end. The ground end of the cord is moulded with a single nylon material (strain relief/body housing). The coil cord is insulated with PU material. The plastic parts of the coil cord are made with anti-static nylon materials.
Premium ESD coil cord has been manufactured to the highest quality with dual mouldings exceeding 20,000 cycles of bending life test without any physical damage on the strain relief. All snaps have a 1 meg-ohm safety resistor. Standard colour is light blue. Custom configurations and colours available on request.
Key Features of Premium ESD Coil Cord:
- Dual moulding on terminations for maximum strain relief.
- Stretches and recoils back to original length.
- All snaps have 1 meg ohm safety resistor.
- Durable and long lasting.
- Polyurethane (PU) insulated.
- 10mm female snaps as standard.
- Cord is available in 6ft and 12ft (6ft standard).
- Use in combination with an Earth Bonding Point and anti-static wrist strap.
- Manufactured to the highest quality with dual mouldings exceeding 20,000 cycles of bending life test without any physical damage on the strain relief.
Specification:
- Conductor: Diameter is 2.5mm with 7 tinsel wires.
- Insulation: Coil cord is insulated with PU material.
- Electrical Properties: The cord conductor shall have an end to end resistance not greater than 50 ohms.
- Resistivity: current limiting resistance = 1 meg ohm + 20%.
- Breakaway Force: 1 to 5lbs of pull away force is required to disconnect the snap in a normal disconnect direction.
- Ground Lead Extendability: Cord should return back to at least 85% of its original length in less than 10 minutes after hanging for 24 hours, with 1KG weight on the other end.
- Hardware: All metal parts shall show no evidence of corrosion and rust after 24 hours submersion to salt solution. Preferably made from stainless steel or brass alloy plated with nickel.
- Connection Integrity: The tensile strength of the end connections shall be not less than 66% of the tensile strength of the wire, and in no case shall it be less than 5 lbs.
- Plastic Parts: Anti-static nylon materials.
- Markings: With logo and resistance value.
- Colour: Blue as standard.
ESD Standards & Regulations Compliance:
 | IEC 61340-5-1 compliant |  | RoHS compliant |
 | CE approved |  | REACH compliant |
Bespoke Coil Cords
Our coil cords can include either a 4mm, 7mm or 10mm female stud. Custom colours are available on request. Please contact Bondline if you would like to enquire about our bespoke coil cords.
