Description

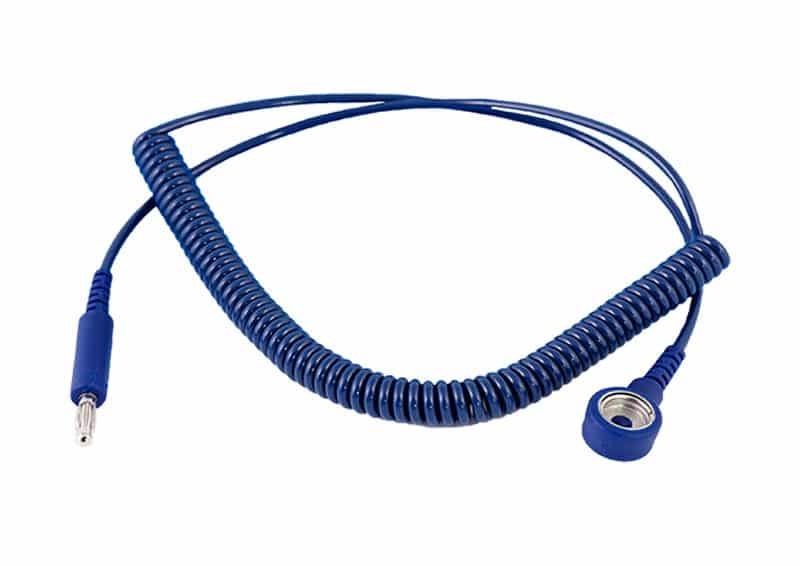

Lightweight ESD coil cords from Bondline provide a strong connection to ground when used in combination with an ESD wrist strap and Earth Bonding Point. These antistatic coil cords are single moulded and 1.8m in length (6ft long) – an ideal length for working at workstations. The lightweight ESD coil cords are available with either ’10mm snap both ends’ or ’10mm snap to jack with a crocodile clip’. All snaps are fitted with a 1 meg-ohm safety resistor. The lightweight ESD coil cords are specifically manufactured for the safe grounding of operators working with ESD sensitive components to prevent the build-up of static discharge (ESD).
Lightweight ESD cords can be stretched and recoiled back to at least 85% of its original length, helping to keep a clear working area for efficiency and comfort. These lightweight ESD coil cords are a cost-effective option for grounding personnel at a workstation in ESD protected areas. The coil cords are polyurethane (PU) insulated and the ground end of the cord is moulded with single nylon material. The cords are compliant according to IEC-61340-5-1 International Standard and meet RoHS and REACH standards. Light blue and dark blue cord colours are available to order.
Key Features:
- 1.8m length (6ft) coil cord.
- Polyurethane (PU) insulated cord.
- 10mm female snaps as standard.
- All snaps have 1 meg-ohm safety resistor.
- Lightweight and provides a strong connection to ground.
- Can be stretched and recoiled back to at least 85% of its original length.
- A cost-effective option for grounding personnel at a workstation.
- Ground end of the cord is moulded with single nylon material.

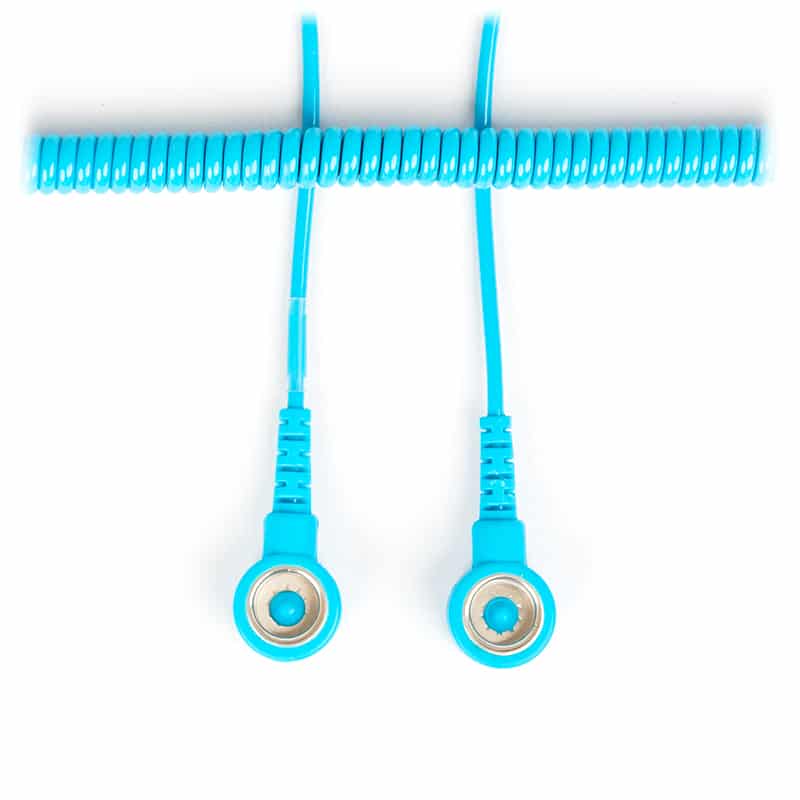

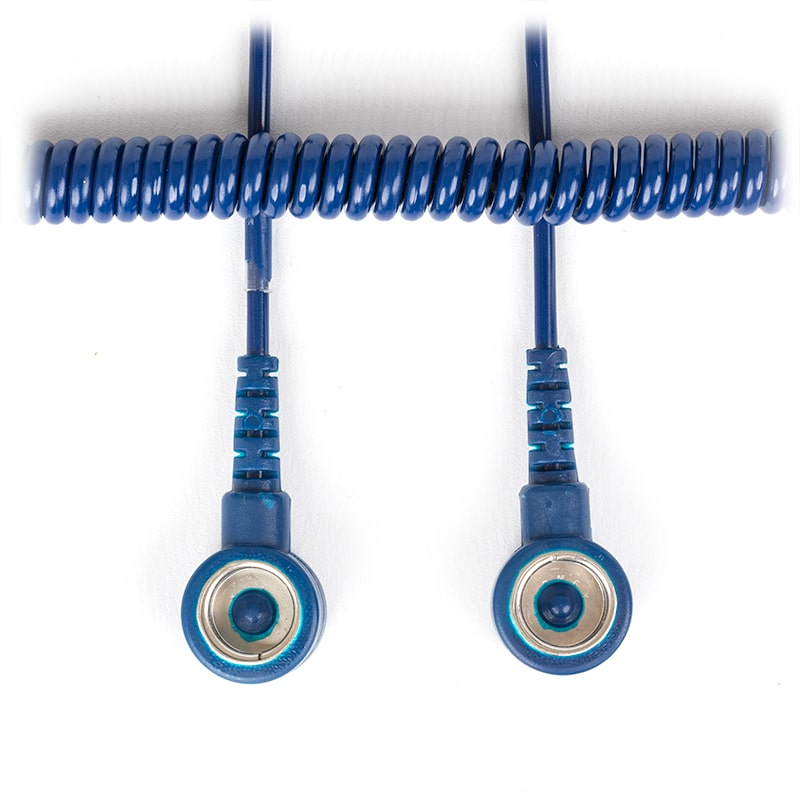

- Standard colour options include dark blue and light blue.

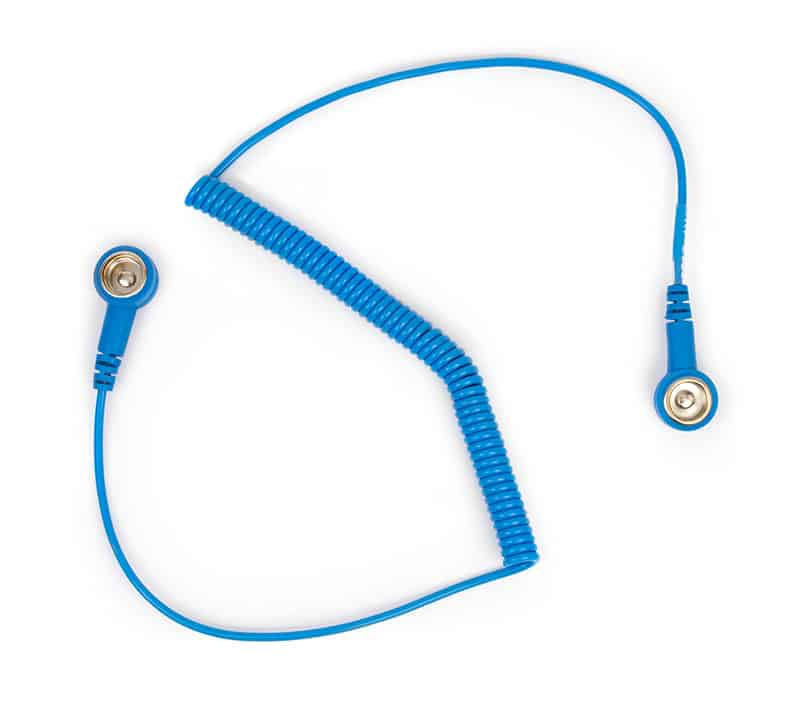

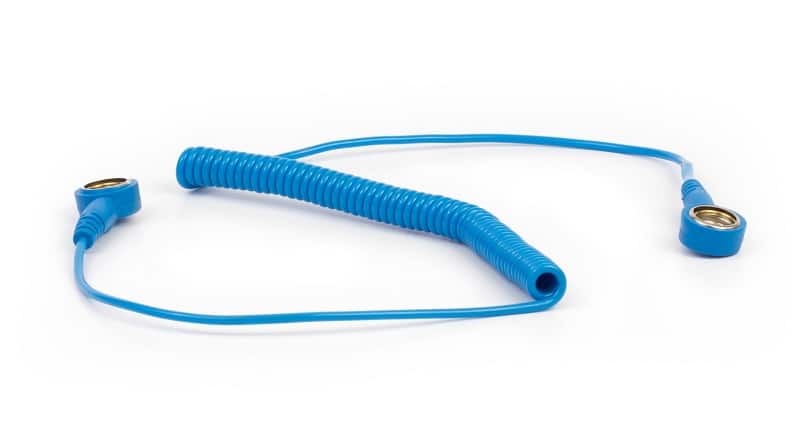

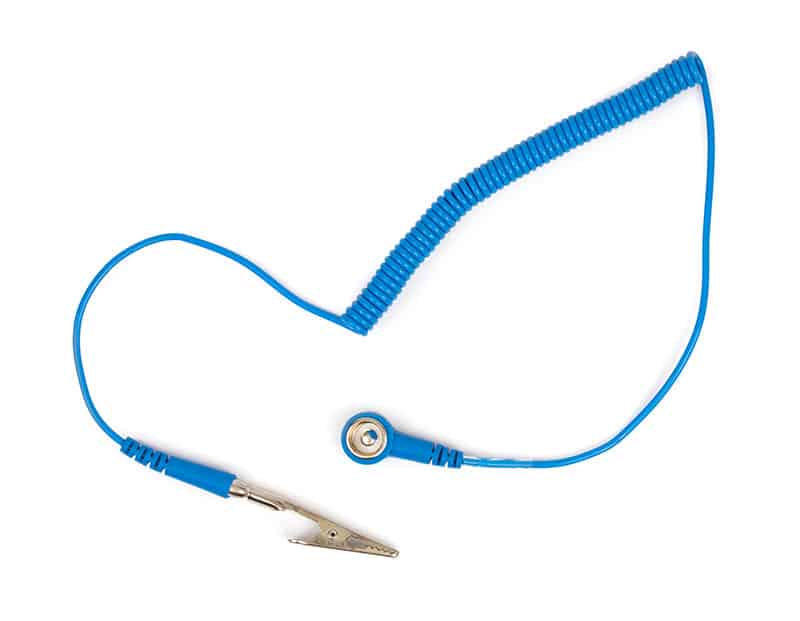

- Options include: ‘stud-to-stud’ and ‘stud-to-jack with crocodile clip’.
- Use in combination with an Earth Bonding Point and ESD wrist strap.
- Custom Configurations and colours available on request.
- Compliant to the IEC-61340-5-1 International ESD Standard.
Specifications:
- Conductor: Diameter is 2.5mm with 7 tinsel wires.
- Insulation: Coil cord is insulated with PU material.
- Electrical Properties: The cord conductor shall have an end to end resistance not greater than 50 ohms.
- Resistivity: Current limiting resistance = 1 meg ohm + 20%.
- Ground Lead Extendibility: Cord should return back to at least 85% of its original length in less than 10 minutes after hanging for 24 hours, with 1KG weight on the other end.
- Breakaway Force: 1 to 5 lbs. Of pull away force is required to disconnect the snap in a normal disconnect direction.
- Connection Integrity: The tensile strength of the end connections shall be not less than 66% of the tensile strength of the wire, and in no case shall it be less than 5 lbs.
- Hardware: All metal parts shall show no evidence of corrosion and rust after 24 hours submersion to salt solution. Preferably made from stainless steel or brass alloy plated with nickel.
- Dimension: Cord is available 6ft as standard.
- Markings: With logo and resistance value.
- Plastic Parts: Anti-static nylon materials.
ESD Standards & Regulations Compliance:
 | IEC 61340-5-1 compliant |  | RoHS compliant |
 | CE approved |  | REACH compliant |
Bespoke Coil Cords
Our coil cords can include either a 4mm, 7mm or 10mm stud. Please contact Bondline on +44 (0)1793 511000 or email us at sales@bondline.co.uk if you would like to enquire about our bespoke coil cords.
ESD-safe cords and antistatic wrist straps are the first line of defence against potential ESD damage. Take a look at our complete range of ESD grounding cords.
