Description

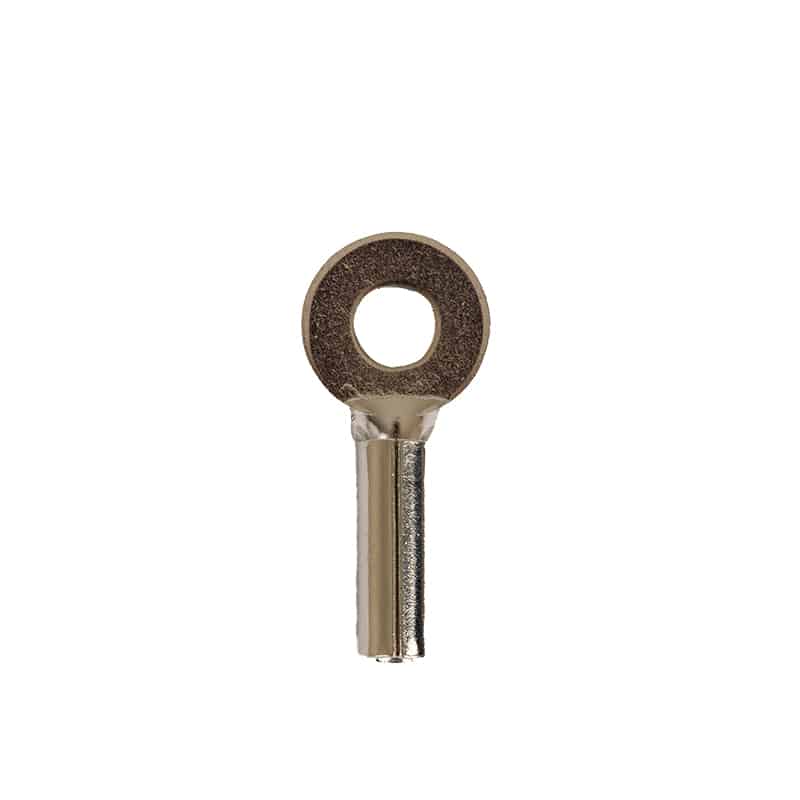

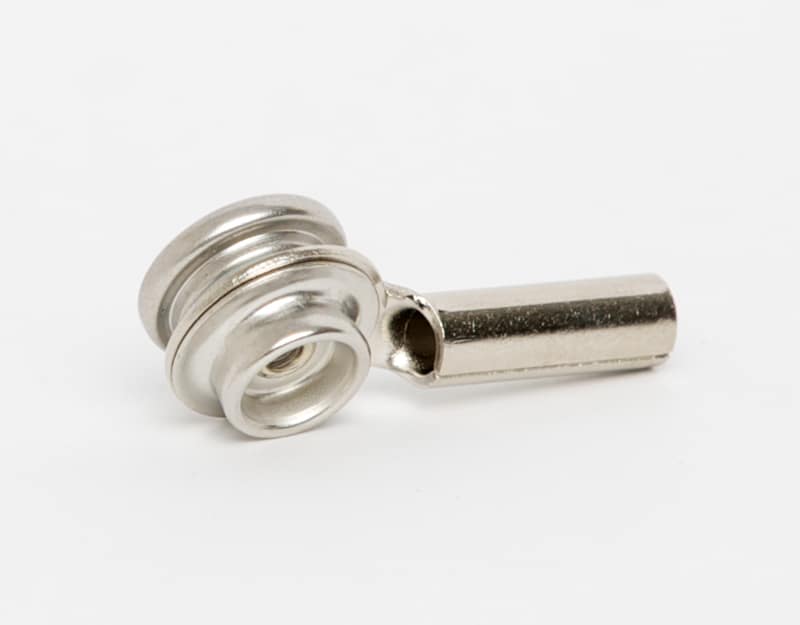

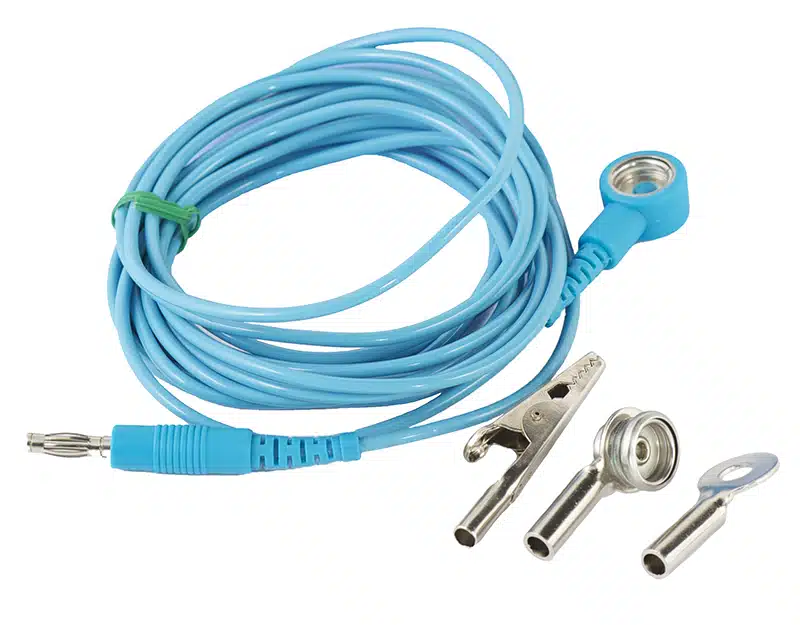

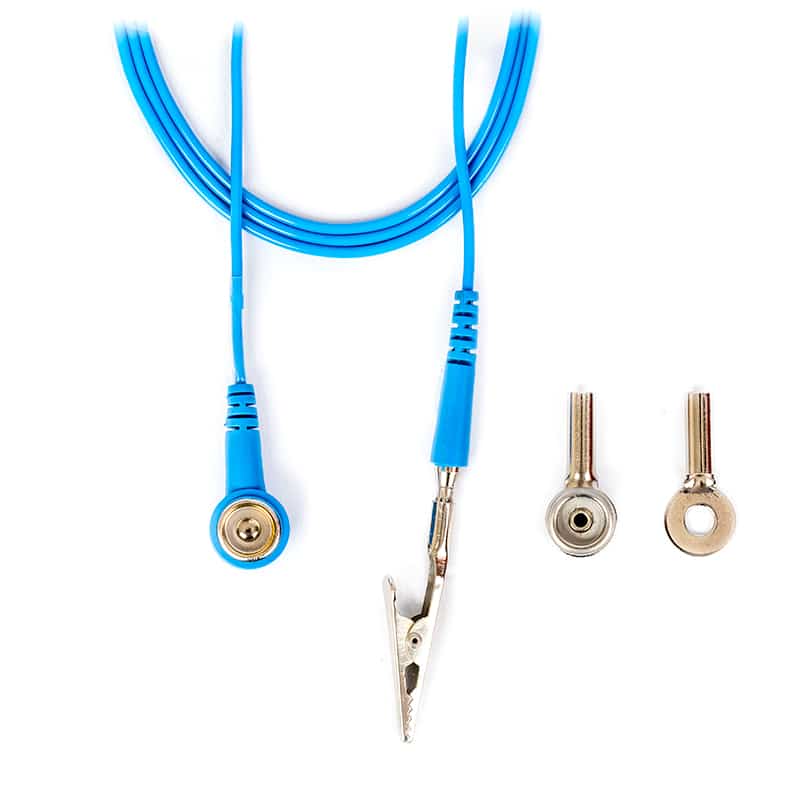

A high quality straight universal grounding cord that provides a strong connection to ground. Designed to connect Earth Bonding Points on ESD mats, ESD workbenches and anti static wrist straps. The 3m universal grounding cord features a 10mm snap at one end of the cord and a jack plug on the other end. This all-purpose ground cord is supplied with 1x crocodile clip, 1x stack snap and 1x terminal lug for grounding in any situation. The cord is 3 meters long (10ft) and light blue as standard. The universal grounding cord is PU insulated and is designed to be used in an ESD working area. Custom configurations and colours available on request.
Key Features:
- Standard colour is light blue.
- Polyurethane (PU) insulated.
- 3m long (10ft).
- All snaps have 1 meg ohm safety resistor.
- Long-lasting, high quality straight grounding cord.
- Provides a strong connection to ground.
- Dual moulding on terminations for maximum strain relief.
- For connecting Earth Bonding Points on ESD mats, ESD workbenches, operator ESD wrist straps and more.
- Premium cord, exceeding 20,000 cycles of bending life test.
- Custom Configurations and colours available on request.
Specifications:
- Conductor: Diameter is 2.5mm, with 7 tinsel wires.
- Insulation: Straight cord is insulated with PU material.
- Electrical Properties: The cord conductor shall have an end to end resistance not greater than 50 ohms.
- Resistivity: Current limiting resistance = 1 meg ohm ± 20%.
- Markings: With customer identification logo, resistance value, and date code.
- Bending Life Test: Exceeds 20,000 cycles of bending life test without any physical damage on the strain relief.
- Breakaway Force: 1 to 5 lbs. Of pull away force is required to disconnect the snap in a normal disconnect direction.
- Plastic Parts: Made of static dissipative plastic material.
- Connection Integrity: The tensile strength of the end connections shall be not less than 66% of the tensile strength of the wire, and in no case shall it be less than 5 lbs.
- Hardware: All metal parts shall show no evidence of corrosion and rust after 24 hours submersion to salt solution. Preferably made from stainless steel or brass alloy plated with nickel.
ESD Standards & Regulations Compliance:
 |
IEC 61340-5-1 compliant |  |
RoHS compliant |
 |
CE approved |  |
REACH compliant |
Bespoke ESD Cords
Our ESD cords can include either a 4mm, 7mm or 10mm female stud. Custom colours are available on request. Please contact Bondline if you would like to enquire about our bespoke ESD cords.
*Due to variations in computer monitor displays, colour shown may not be exact.*
