ESD Link Cord

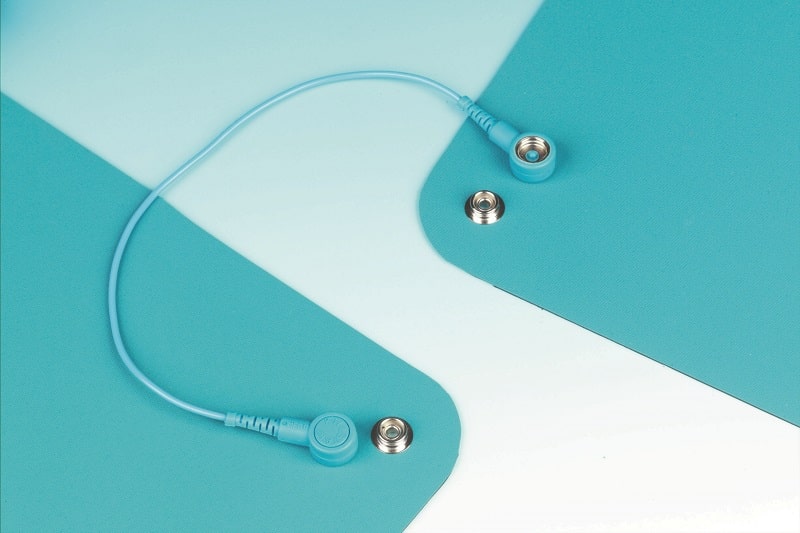

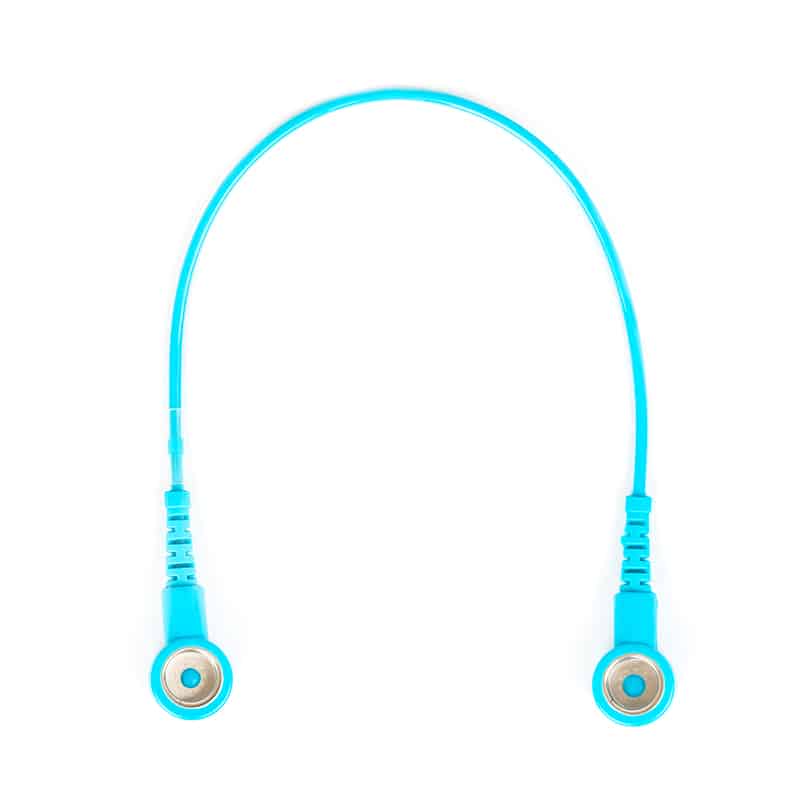

A high-quality, short straight cord used for connecting adjacent ESD bench mats on a workstation by linking to the 10mm studs on the corner of each mat. The link cord can also be used whenever a short grounding cord option is required. Link cord is 230mm long, with 10mm snaps both ends. Light blue as standard colour.

Quantity Discount Per Item Price
25+ £3.50 £3.10 £3.10

£3.50 excl. VAT

Description

ESD link cord from Bondline is a great solution for linking ESD bench mats together.

A high-quality, short straight cord used for connecting adjacent ESD bench mats on a workstation by linking to the 10mm studs on the corner of each mat. The link cord can also be used wherever a short grounding cord option is required, for example, from a bench mat to an Earth Bonding Point. Our ESD link cord is unique as it is made with a double thickness material to provide outer layer insulation for complete operator safety. The bench mat link cord is manufactured with strong cable strain reliefs and a 1 Meg-Ohm safety resistor fitted at each 10mm snap connector. The ESD link cord is light blue as standard.

ESD link cords have been manufactured to the highest quality with dual mouldings exceeding 20,000 cycles of bending life test without any physical damage on the strain relief. Custom configurations and colours available on enquiry. All premium products can be supplied with 7mm or 4mm snap / stud sizes on request.

Key Features of ESD Link Cord:

  • Dual moulding on terminations for maximum strain relief
  • Short lead, measuring 230mm (9″) long
  • 10mm snap to 10mm snap connections
  • All snaps have a 1 meg ohm safety resistor fitted at each end
  • Connects ESD bench mats together and to connect mats to Earth Bonding Point plugs
  • Standard colour is light blue
  • Exceeds 20,000 cycles of bending life test
  • Breakaway Force: 1 to 5 lbs. Of pull away force is required to disconnect the snap in a normal disconnect direction
  • Compliant to the IEC 61340-5-1 International Standard

ESD Standards & Regulations Compliance:

ESD safe label - Bondline IEC 61340-5-1 compliant bondline RoHS compliant
CE Icon WEB-min-alt CE approved bondline REACH compliant

Bondline stock a wide range of ESD cords. View our full range of ESD grounding cords on our website.

Additional information

Weight N/A
Select a product:

SCS10/9 – Link Cord

Technical Datasheet

ESD Link Cord: Technical Datasheet
