Earth Grounding Solutions

Safely ground your EPA equipment with our range of Earth Bonding Plugs

We supply a vast range of UK and European Earth Bonding Plugs to fit a range of requirements. Our Earth Bonding Plugs enhance the safety in ESD applications by providing a secure Earth grounding point for the safe handling of electrostatic sensitive devices and components. Our Earth Bonding Plugs offer a simple and easy method of grounding. All our ESD plugs meet the requirements of IEC 61340-5-1 and ESD S20.20 ESD Handling Standards. Bondline manufacture all Earth Bonding Plugs in-house in the UK. For more Earthing points, see our range of Earth Bonding Brackets.

Our range of Earth Bonding Plugs include:

• BP (UK, 1 x 10mm stud, no resistor)

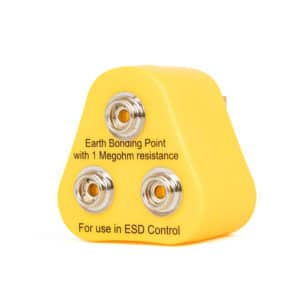

• BP3 (UK, 3 x 10mm studs, 1 meg-ohm resistor)
• BP2J (UK, 1 x 10mm stud, 2 x banana sockets, 1 meg-ohm resistor)

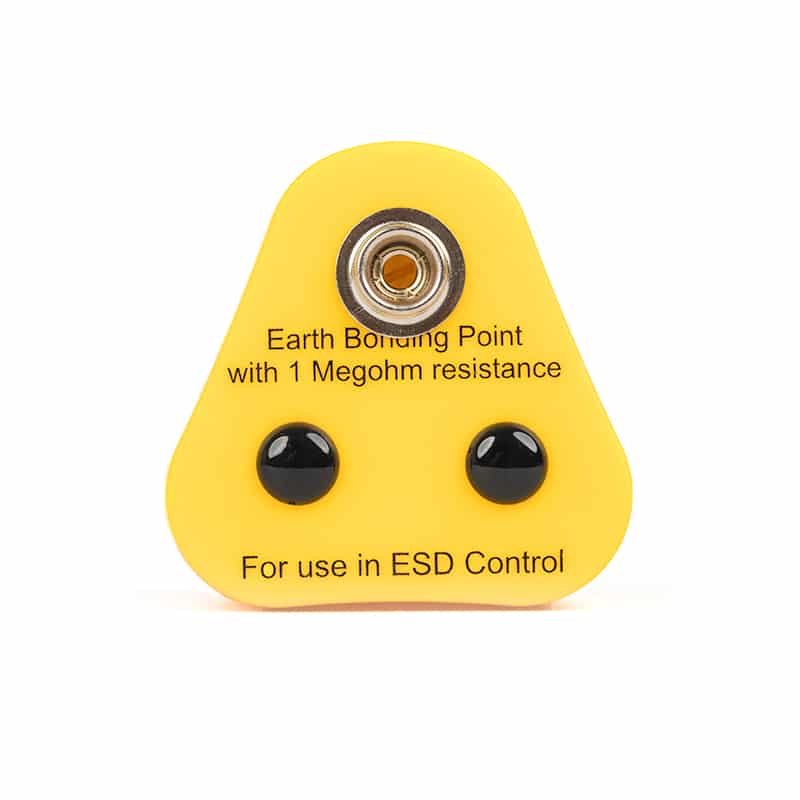

• BPR (UK, 1 x 10mm stud, 2 x hole blanks, 1 meg-ohm resistor)
• BP210M5 (UK, 2 x 10mm studs, 1 x M5 post, 1 meg-ohm resistor)
• BP2M5 (UK, 2 x M5 posts, 1 x hole blank, 1 meg-ohm resistor)

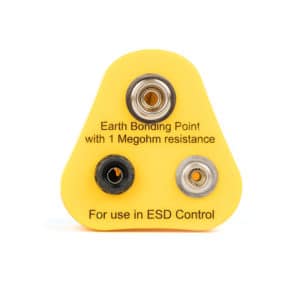

• BP3S (UK, 1 x 10mm stud, 1 x 7mm stud, 1 x banana socket, 1 meg-ohm resistor)

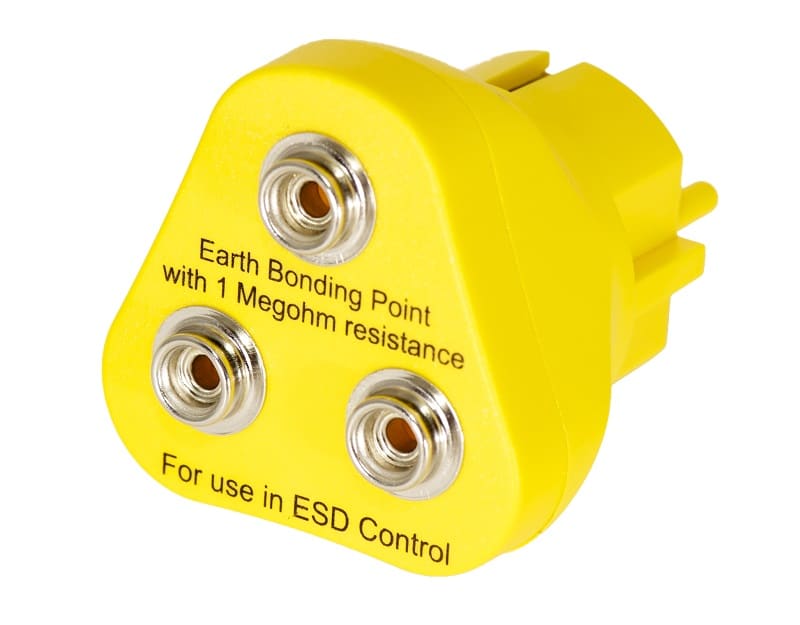

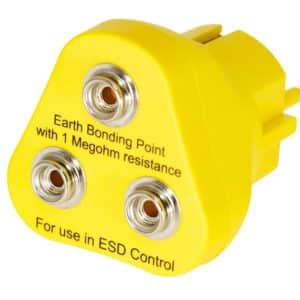

• BP3EU (Euro, 3 x 10mm studs, 1 meg-ohm resistor)
• BPE (Euro, 1 x 10mm stud, 2 x hole blanks, 1 meg-ohm resistor)

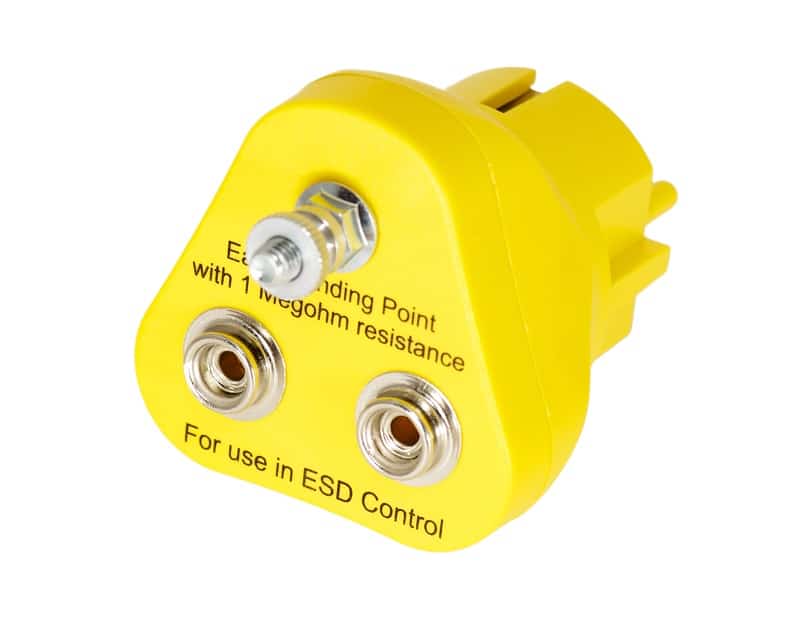

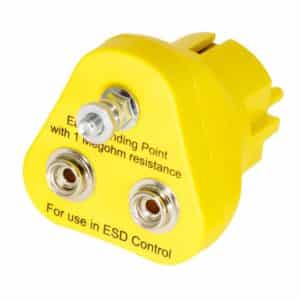

• BP210M5EU (Euro, 2 x 10mm studs, 1 x M5 post, 1 meg-ohm resistor)
• BP2JEU (Euro, 1 x 10mm stud, 2 x banana sockets, 1 meg-ohm resistor)

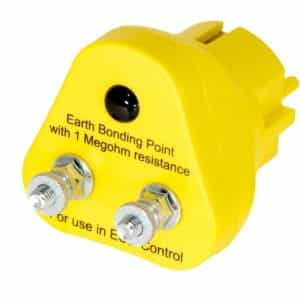

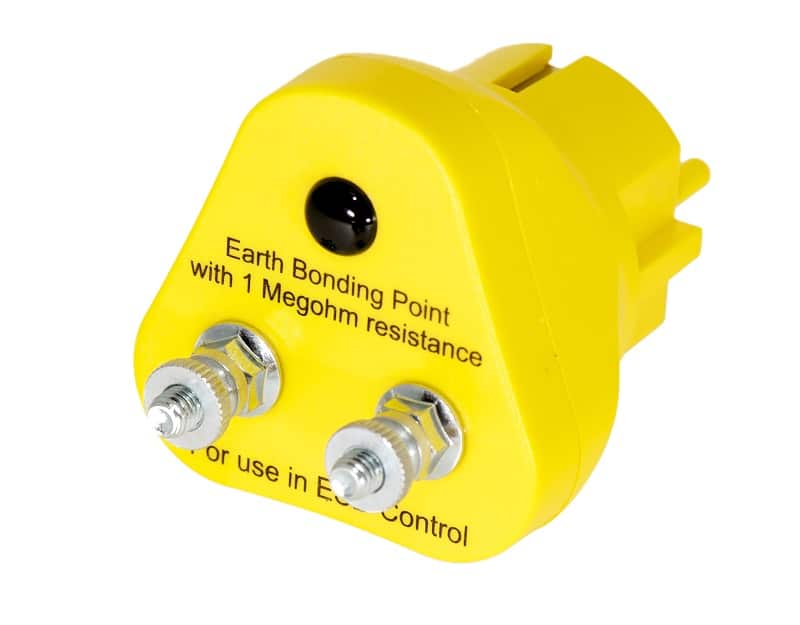

• BP2M5EU (Euro, 2 x M5 posts, 1 x hole blank, 1 meg-ohm resistor)

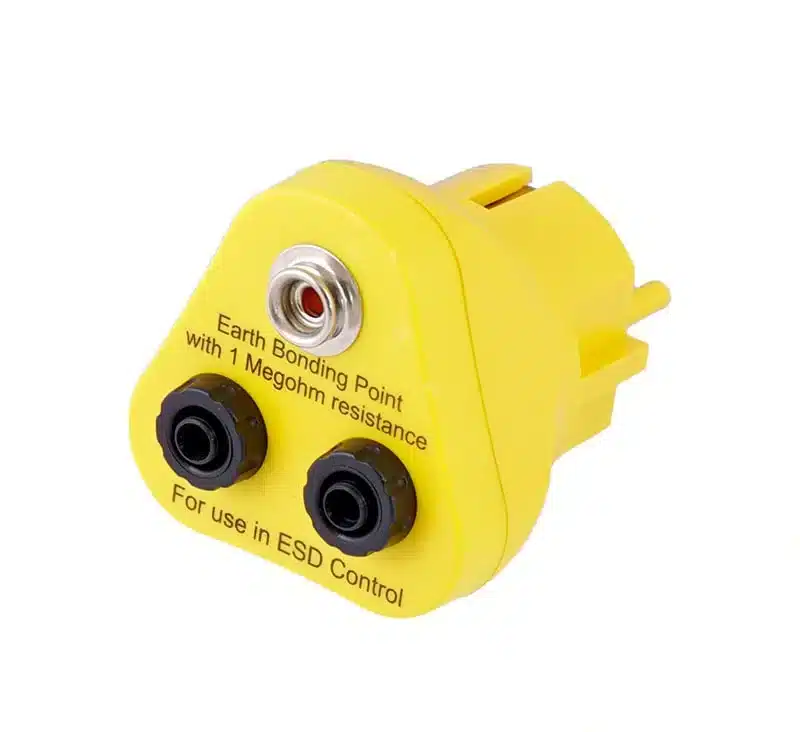

• BP2SBEU (Euro, 2 x shrouded safety banana sockets, 1 meg-ohm resistor)

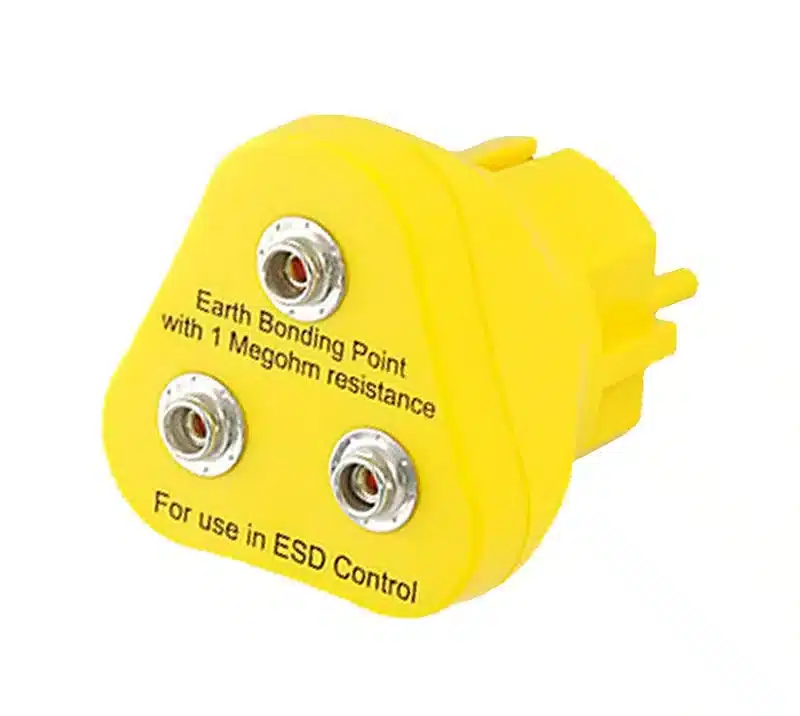

• BP37EU (Euro, 3 x 7mm studs, 1 meg-ohm resistor)
• BP3SEU (Euro, 1 x 10mm stud, 1 x 7mm stud, 1 x banana socket and 1 meg-ohm resistor)
• Custom special plugs

Custom Special Earth Bonding Plugs

Bondline’s Earth Bonding Plugs can be fully customised in-house by Bondline to fit any special requirement.

We offer the following customisation options:

• Logos
• Configurations
• Resistance values

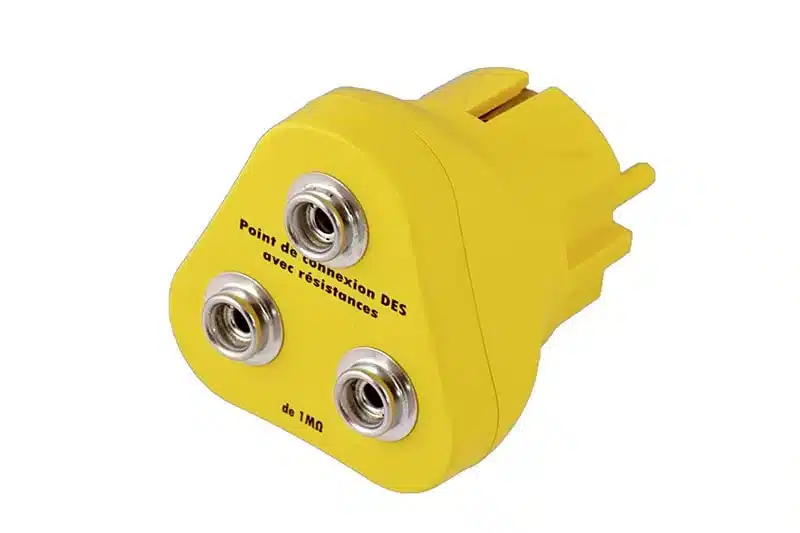

• Languages
• Special printing
• Special text
• And more…

Please note, our special printing and text options are available at minimum order quantities.

Earth Bonding Plugs can be supplied with any combination of the following in UK or EU plug styles:

• 10mm studs
• 7mm studs
• 4mm studs
• M5 posts
• Hole blanks
• Banana sockets
• Shrouded banana sockets
• Reverse banana sockets

If you are interested in our custom specials service, please call us on +44 (0)1793 511000 or email sales@bondline.co.uk. A member of our team will discuss your requirements with you and arrange for the plug to be specially made.

What Are Earth Bonding Plugs Used For?

Earth Bonding Plugs are an essential product for grounding equipment in the EPA such as ESD wrist straps, ESD flooring connection cords and ESD matting. They must only be used for ESD control purposes. ESD Earth Bonding Plugs provide a common ground point for grounding using protective Earth in an ESD protected area (EPA). Using mains Earth as the “Earth Facility” is now the most popular method for guaranteeing Zero potential in the EPA.

Benefits of an Earth Bonding Plug:

• Simple and easy method of grounding personnel, ESD work benches, ESD matting, ESD wrist straps and ESD flooring.
• Reduction in the static decay rate of workstations.
• Reduction in component damage when handling static sensitive electronic devices and components.

Contact Us

As with any ESD application, there are a number of factors that must be considered in order to protect the workforce and eliminate the risks of component damage. For expert advice on creating an ESD safe environment, get in touch with us on +44 (0)1793 511000 or sales@bondline.co.uk and we’ll be happy to help. You can also browse our range of anti-static wrist straps, ESD mats and other anti-static products on our online store.
