Description

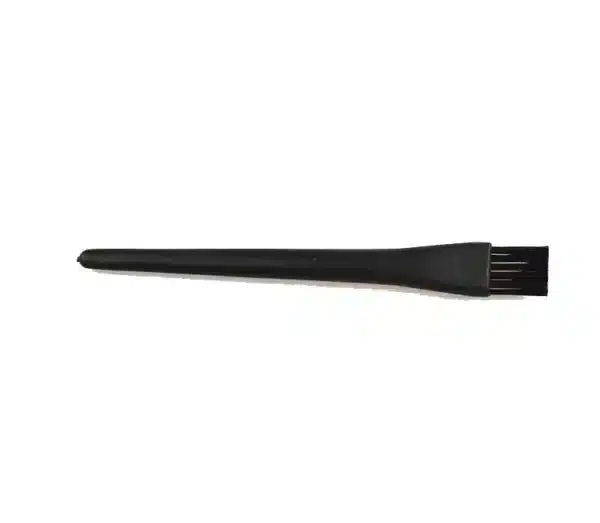

The KB5118 Flat Paintbrush Style ESD Brush is developed for the safe cleaning of static sensitive components without generating any harmful static charges. The brush has 11 holes in 2 lines and does not produce dust particles when in use. The bristles are made with a conductive nylon material and the handle is made with a strong conductive PP material. Firm bristles are mainly for electronics, especially circuit boards.
If you have any queries regarding ESD brushes, then please do not hesitate to contact one of our experienced sales team on +44 (0)1793 511000 or send us an email to sales@bondline.co.uk.
Product Features:
- 11 holes in 2 lines
- Strong conductive polypropylene handle
- Highly conductive nylon bristles
- Ensures no harmful charges build up when brushing
- Safe for use on static sensitive components and assemblies
- Uses corona discharge to dissipate charges
- Important tool for any static controlled workstation
- Black brush handle and bristles
- Flat, paintbrush style
Application:
- Removes dirt on PCBs or other static sensitive components, and discharges the static electricity to the ground.
Specifications:
- Conductive handle resistance: 10^(4) Ω ~ 10^(6) Ω
- Dissipative fibre bristles resistance: 1 x 10^(8) – 1 x 10^(10) Ω
- Standard compliance: ANSI/ESD S20.20*1999 requirements, EN-61340-5-1 / IEC-61340-5-1
Standards and Regulations Compliance:
 |
IEC-61340-5-1 / EN-61340-5-1 compliant |  |
RoHS compliant |
|
Meets ANSI/ESD S20.20*1999 requirements |  |
REACH compliant |
 |
CE approved |
View our complete ESD brush range with a variety of brush/bristle sizes to suit your application.
