Description

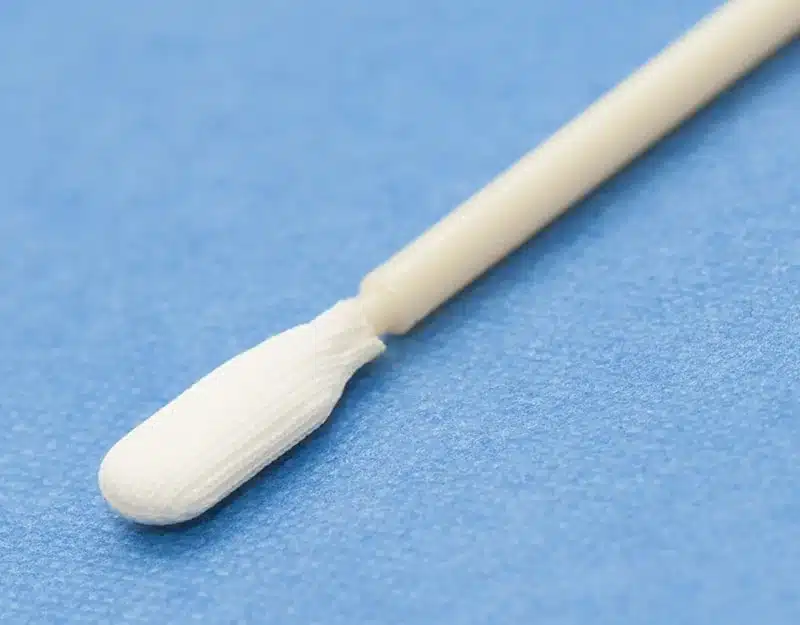

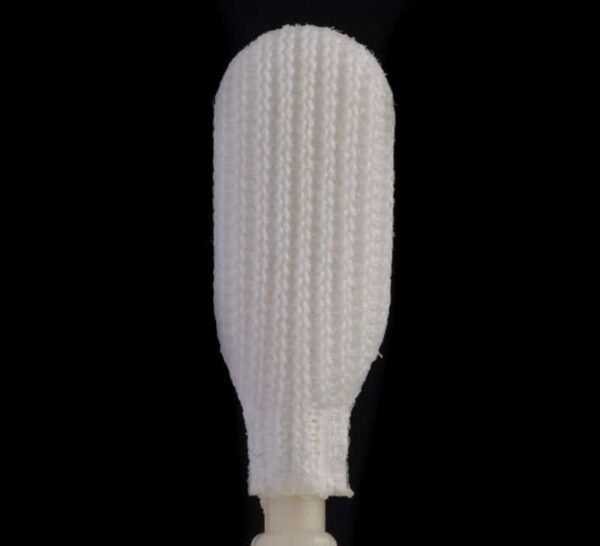

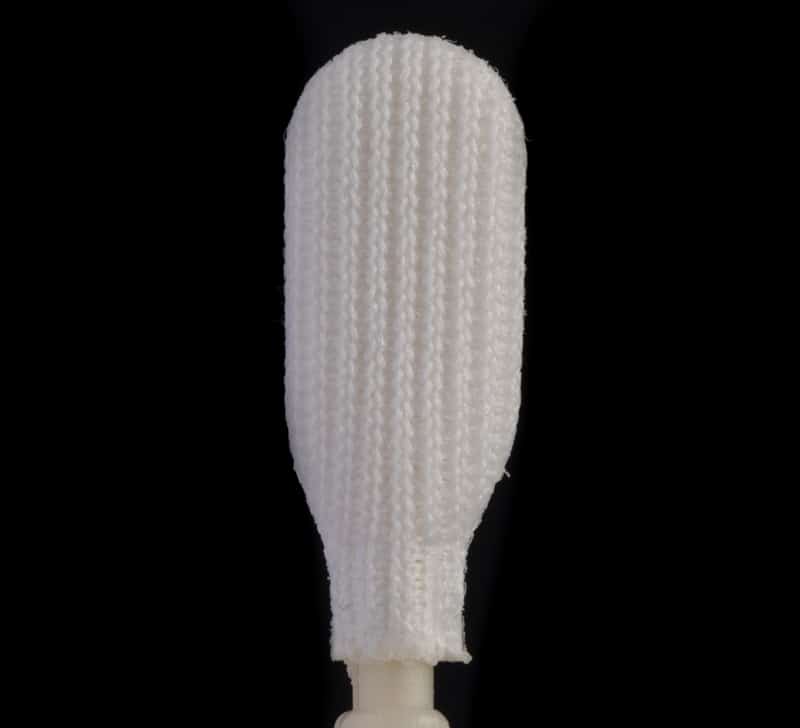

A general purpose, paddle tip ESD polyester swab designed for the highest level of contamination control in critical processing applications. This ultra clean polyester, dissipative swab is excellent for cleaning very small grooved, slotted and hard-to-reach areas on static sensitive electronic components. The swab has a flexible polyester head paddle and a compact ESD safe handle made from a patented inherently polymer, providing clean permanent protections without contributing particulate contaminates to the cleanroom. The paddle tip ESD polyester swab is free from organic contaminants such as silicone, amide and DOP. It has very low particle generation, fibres, ion content and extractables.
Key Features:
- Colour: White
- Tip Material: 100% knitted polyester
- 100 swabs/pack
- Tip Width: 6.5mm
- Tip Thickness: 2.9mm
- Tip Length: 14.5mm
- Stick Width: 3mm
- Stick Thickness: 3mm
- Stick Length: 147mm
- Total Swab Length: 161.5mm
- Soft, paddle, polyester tip allows for careful removal of contaminations
- Non-abrasive with no contaminating coatings
- Good chemical resistance
- Good absorbency and excellent solvent hold
- Thermally bonded polyester head
- Free from silicone, amides and DOP
- Minimises risk of electrostatic damage
- Low in particles, fibres, ion content and extractables
- ESD-safe handle made from a patented inherently polymer
- Compliant to IEC 61340-5-1 International Standard
Specification:
- Surface Resistivity of Handle: 1.0 x 10^(9)Ω
- Volume Resistance of Handle: 1.0 x 10^(8)Ω
- Non-Volatile Residue (IPA mg/swab): 0.035
- Ions (µg/swab):
- Chloride 0.044
- Sulfate: 0.022
- Nitrate: ND*
- Phosphate: ND*
- Fluoride: ND*
- Potassium: 0.0038
- Calcium: 0.024
- Sodium: 0.081
- Magnesium: 0.0043
ND* = below the detection limit of the equipment
Applications:
- Cleaning of static sensitive electronic components and devices
- Cleaning small and confined areas
- Applying lubricants and other liquids
- Removing flux residues and excess materials
- Cleaning with solvents such as IPA
- For general purpose cleaning
- Cleanroom applications
Meets the Following ESD Standards & Regulations:
 | IEC-61340-5-1 |  | CE approved |
 | RoHS compliant |  | REACH compliant |
To enquire about this product, please contact us on 01793 511000 or sales@bondline.co.uk.
See our full range of ESD swabs.
