Description

ESD Brush Set from Bondline – A convenient, conductive brush set, great for cleaning static sensitive electronic components of all sizes.

Bondline’s ESD Brush Set includes a pack of 4 conductive brushes in a range of sizes, suitable for many applications. This handy set of brushes is great for multi-purpose use – whether you require to clean microelectronics or larger printed circuit boards. The bristles are made from conductive nylon (PA) and the handles are made from conductive polypropylene (PP). These brushes do not produce dust particles which makes them suitable for use for those with dust allergies. Each brush consists of 40% polypropylene, 45% polyamide and 15% carbon fibre.

Brushes included within the ESD Brush Set can also be purchased separately.

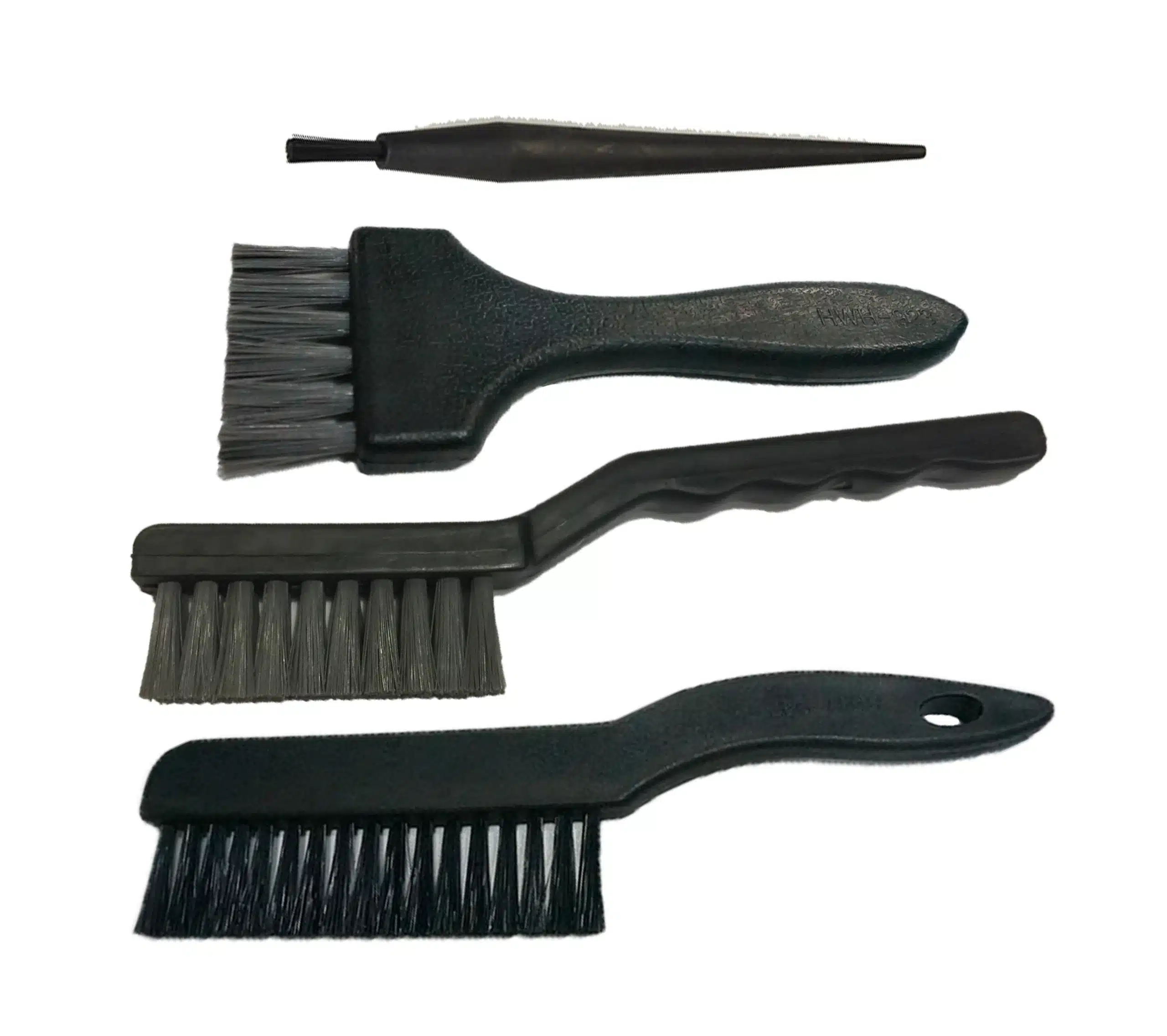

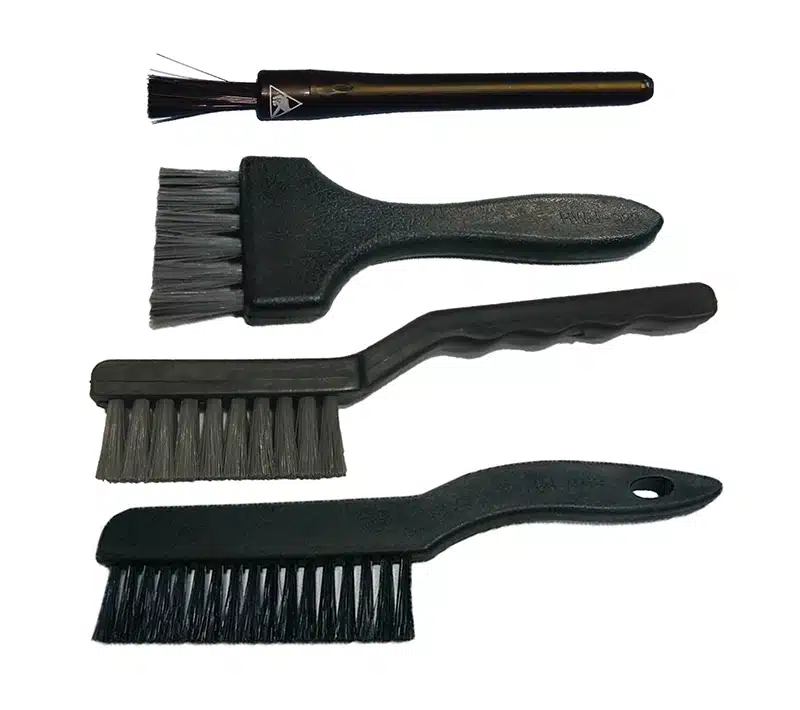

1x Pack Includes:

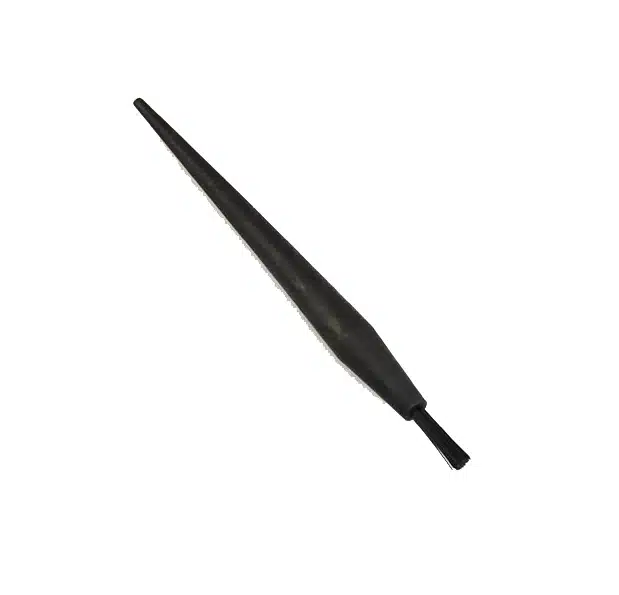

• KB5120  –   Small ESD Brush with 1 hole

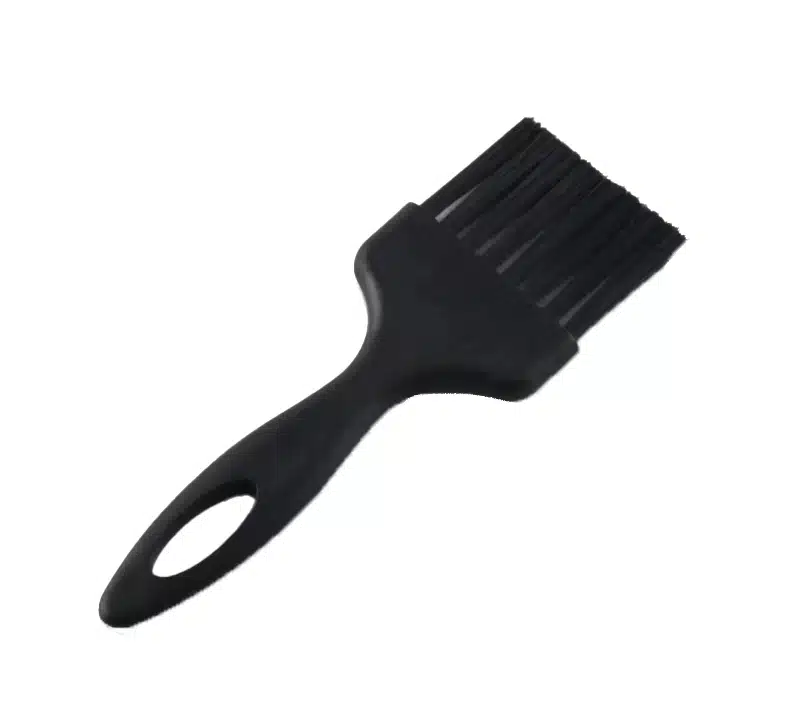

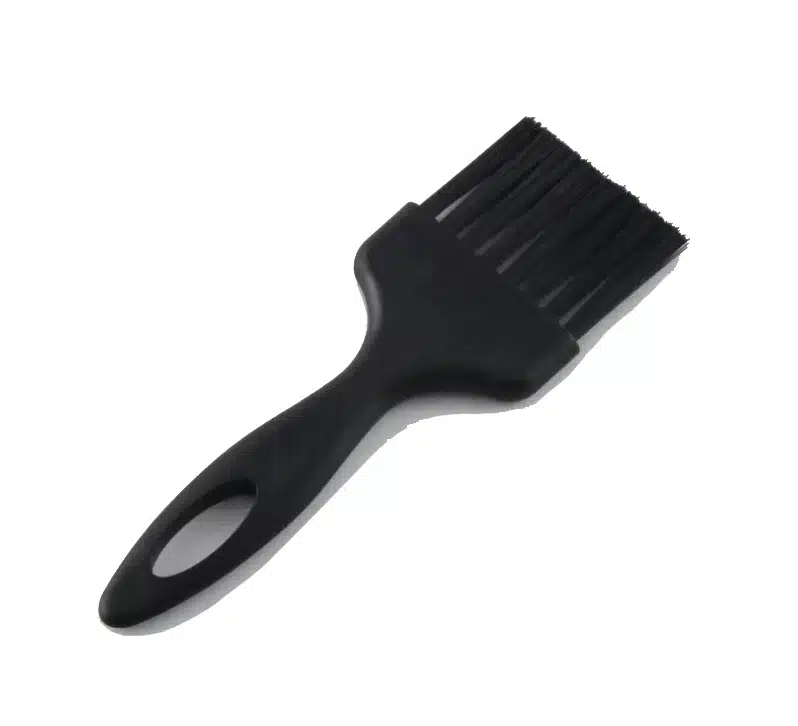

• KB5113   –  170mm ESD Brush   –  (Brush L: 170mm; Bristle L: 40mm; Row L: 60mm)

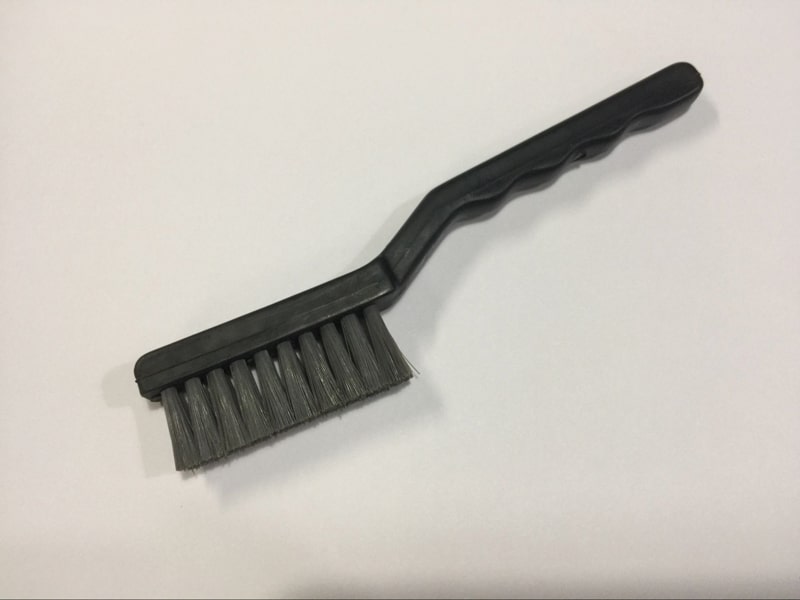

• KB925    –   175mm ESD Brush   –  (Brush L: 175mm W: 14mm, Bristle Size: 57 x 10mm L: 20mm)

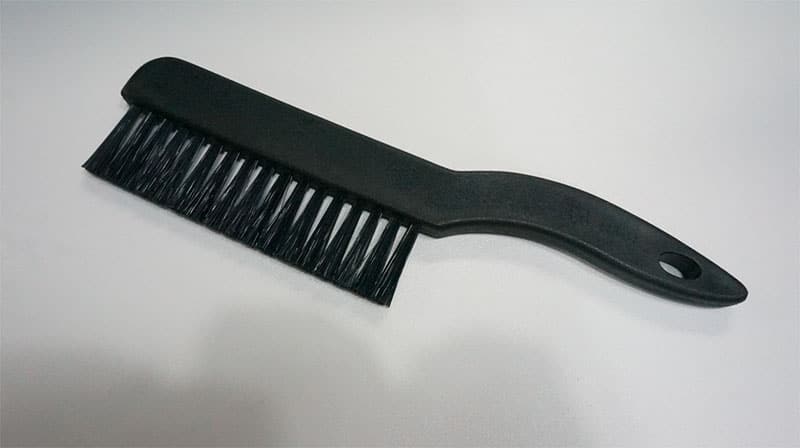

• KB927    –   255mm ESD Brush   –  (Brush L: 255mm W: 11mm, Bristle Size: 130 x 5mm L: 30mm)

Key Features:

• Strong, black, conductive polypropylene handle.
• Soft, black, conductive nylon bristles.
• KB925 brush has an easy-to-grip handle.
• Suitable for cleaning PCBs and other static sensitive components.
• 1x Pack includes: 4x ESD-safe brushes of different sizes and shapes.
• Minimises static charge generation and dissipates static charges to ground when brush is held by grounded personnel.
• Compliant according to IEC-61340-5-1 International Standard.
• RoHS and REACH compliant.

Specification:

• Surface Resistance: 10^(3) Ω x 10^(5) Ω
• Temperature Range: From 5 to 105°C, with intermittent use recommended at the extremity of the range
• Tensile Strength: 3,000 psi
• Elongation: 20 psi %
• Static Decay Rate +5000v to 50v: <2 seconds
• Construction: 40% Polypropylene, 45% Polyamide, 15% Carbon Fibre.
• Handle Material: Conductive Polypropylene (PP)
• Bristle Material: Conductive Nylon (PA)

Standards and Regulations Compliance:

	IEC-61340-5-1 / EN-61340-5-1 compliant		RoHS compliant
	CE approved		REACH compliant

View our complete ESD brush range with a variety of brush/bristle sizes to suit your application.
