Description

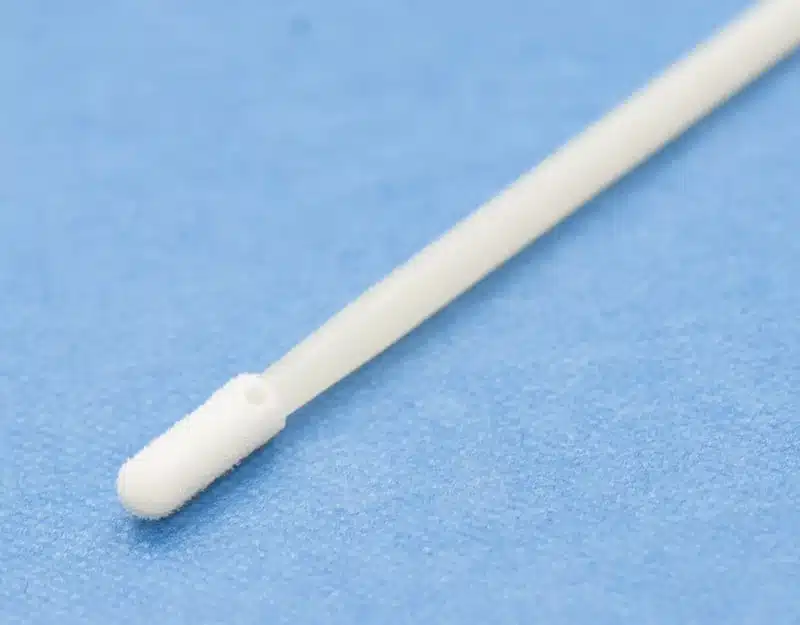

A round tip ESD foam swab designed to easily remove particle residue with no abrasion. This swab features a compact and firm handle with a round internal core and tip providing good support in cleaning small and hard-to-reach areas. The handle is made from a patented inherently polymer to provide clean permanent protections without contributing particulate contaminates to the cleanroom. Our full range of universal ESD swabs are free from silicone, amides and DOP. They have very low particle generation, fibres, ion content and extractables. Round tip ESD foam swabs are excellent in cleaning static sensitive electronic components and devices and minimise the risk of electrostatic damage by providing a way for charges to ground. Designed for the highest level of contamination control in critical processing applications.
Key Features:
- Colour: White
- Tip Material: Polyurethane foam
- 100 swabs/pack
- Tip Width: 3.5mm
- Tip Thickness: 3.3mm
- Tip Length: 12.6mm
- Stick Width: 3mm
- Total Swab Length: 71mm
- Soft, round, foam tip allows for careful removal of contaminations
- Non-abrasive with no contaminating adhesives
- Good chemical resistance
- Good absorbency and excellent solvent hold
- Free from silicone, amides and DOP
- Thermally bonded foam head
- Minimises risk of electrostatic damage
- Low in particles, fibres, ion content and extractables
- ESD safe handle made from a patented inherently polymer
- Compliant to IEC 61340-5-1 International Standard
Specification:
- Surface Resistivity of Handle: 1.0 x 10^(9)Ω
- Volume Resistance of Handle: 1.0 x 10^(8)Ω
- Non-Volatile Residue (IPA mg/swab): 0.035
- Ions (µg/swab):
- Chloride 0.044
- Sulfate: 0.022
- Nitrate: ND*
- Phosphate: ND*
- Fluoride: ND*
- Potassium: 0.0038
- Calcium: 0.024
- Sodium: 0.081
- Magnesium: 0.0043
ND* = below the detection limit of the equipment
Applications:
- Cleaning of static sensitive electronic components and devices
- Cleaning small and confined areas
- Applying lubricants and other liquids
- Removing flux residues and excess materials
- Cleaning with solvents such as IPA
- Static-sensitive applications
- For general purpose cleaning
- Cleanroom applications
Meets the Following ESD Standards & Regulations:
 | IEC-61340-5-1 |  | CE approved |
 | RoHS compliant |  | REACH compliant |
To enquire about this product, please contact us on 01793 511000 or sales@bondline.co.uk.
See our full range of ESD swabs.
