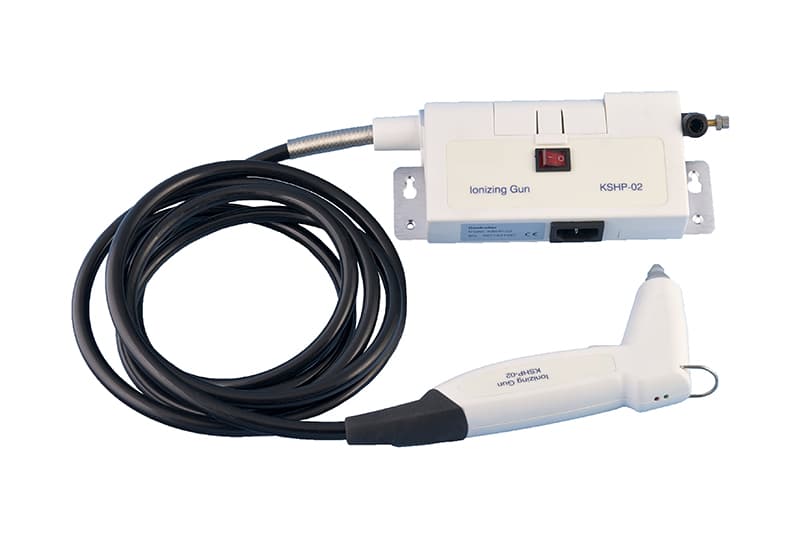

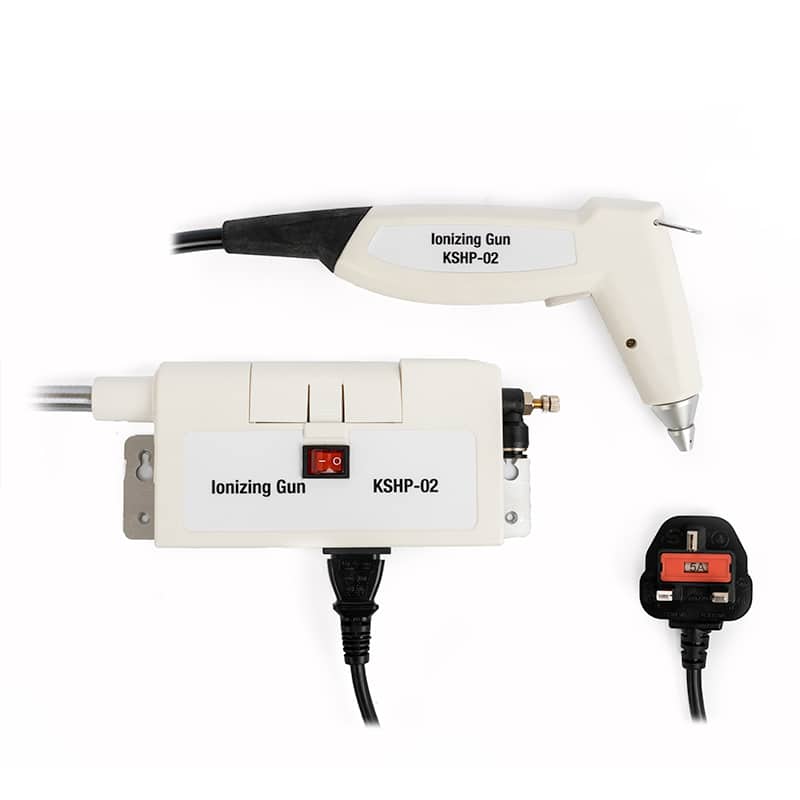

Premium Ion Gun And Controller

The lightest and smallest design in the world today. This premium ion gun and controller has a built in piezoelectric high voltage power supply and is also equipped with an auto balance system which ensures a static neutralising air flow. Special alloy discharge needle, durable and wearable; suitable for cleanroom application. (Also available with EU power supply).

£660.00 excl. VAT

Description

The Premium Ion Gun and Controller is very lightweight and small making it easy to operate with high efficiency. The ionising air gun is a handheld device designed for elimination of static electricity and contaminations. External power supply is unnecessary since the device has a small built-in HV power unit. The controller has a built-in piezoelectric high voltage power supply and is also equipped with an auto-balance system which ensures a static-free working area. It also has an ionisation indicator light and a high voltage abnormality indicator ensuring a safe auto-ion balance within 10 volts. The discharge needle is manufactured with a special alloy which is highly durable and is suitable for use in cleanrooms. RoHS and REACH compliant. Compliant according to IEC-61340-5-1 International Standard.

Please note before use:

  • The device is not explosion-proof – keep it away from inflammable gas and solution in that it may cause fire or explosion.
  • Make use of dry and clean air in order not to affect ionisation performance.
  • Also available with EU power supply, please get in touch to enquire.

Product Features:

  • Auto-ion balance 0 ± 10V.
  • The lightest and smallest design in the world today.
  • Built-in piezoelectric high voltage power supply. Thus, it is equipped with an auto-ion balance system and high voltage wiring; safe and convenient to operate.
  • Both the inside high voltage power supply and outside compressed air supply can be opened after pulling the trigger. Safe and easy operation and high efficiency.
  • Equipped with ionisation indicator light and high voltage abnormality alarm indicator light.
  • The throttle on the controller controls air volume.
  • Special alloy discharge needle, durable and wearable; suitable for cleanroom application.
  • Manual guide included.

Specifications:

  • Power supply: DC24V
  • Safety performance: Equipped with ion output monitoring system
  • Capacity: 12VA
  • H.V output: AC2200V
  • Ion balance: Auto-ion balance, 0 ± 10V
  • Controller dimension: 120 x 92 x 71
  • Accessory: Controller and power supply cord
  • Operating air pressure: 0.1~ 0.6MPA
  • Weight: 106g
  • Ozone density: Less than 0.01ppm
  • Decay time: Approx. 0.3 seconds*

**Note: The test results will vary slightly due to different test conditions.

Standards & Regulations Compliance:

ESD safe label - Bondline IEC-61340-5-1 compliant CE Icon WEB-min-alt CE certified
bondline RoHS compliant bondline REACH compliant
View our full range of ESD Ionisers.

Additional information

Weight N/A
Select a product:

KSHP02 – Premium Ion Gun And Controller

Technical Datasheet

Premium Ion Gun And Controller: Technical Datasheet

Instruction Manual

KSHP02: Instruction Manual
