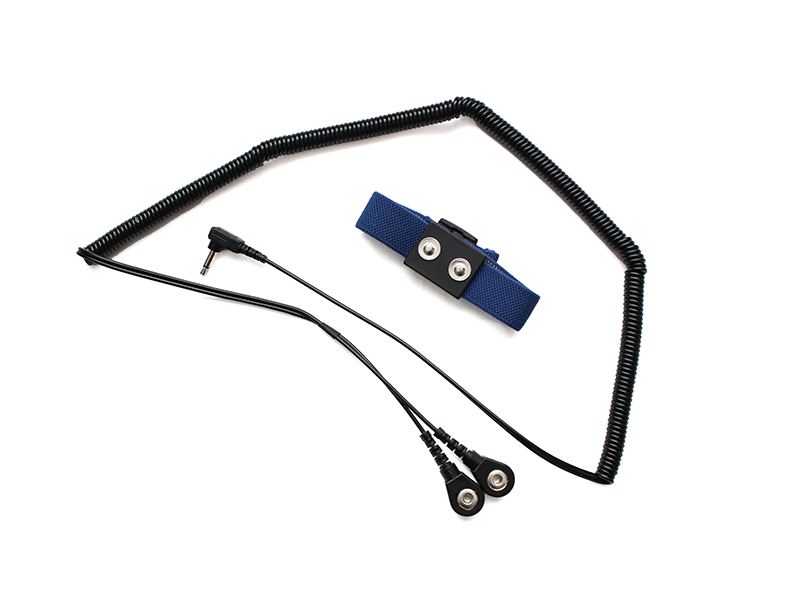

Dual ESD Wrist Strap and Cord

High quality fabric dual ESD wrist strap and dual ESD coil cord 3m (10ft) to be used with CM8300R. Dual ESD wrist strap provides two connections to ground (2 x 4mm studs), ensuring the operator has a reliable path-to-ground at all times. Can be easily adjusted via the buckle to fit the operator’s wrist.

£5.35£5.95 excl. VAT

Out of stock

Description

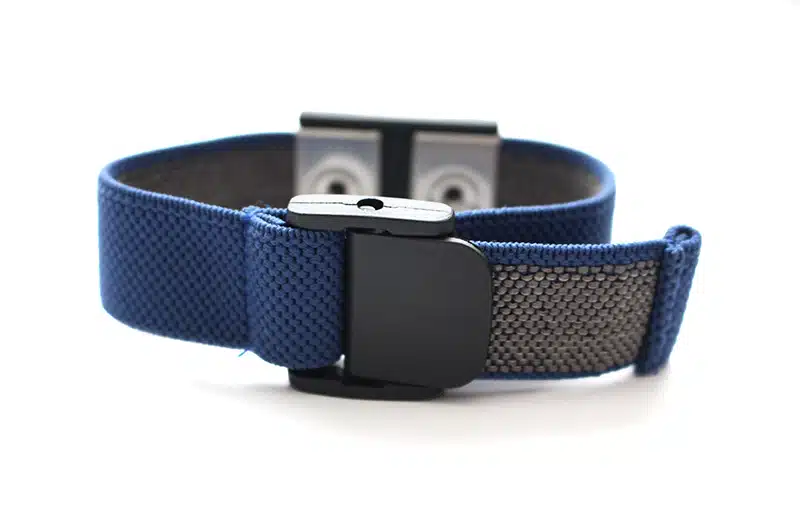

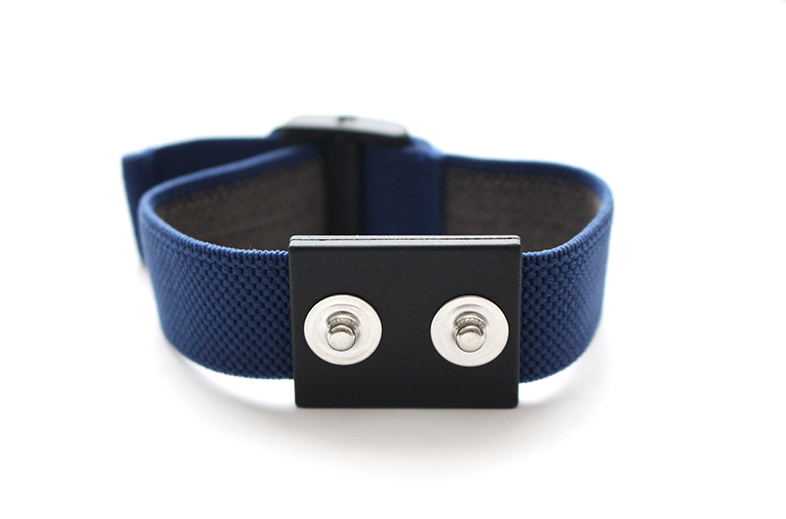

High quality fabric dual ESD wrist strap and cord to be used with our constant monitor CM8300R. Dual ESD wrist strap provides two connections to ground (4mm studs), ensuring the operator has a reliable path-to-ground at all times. Dual coil cords are designed to work with dual wire resistance style constant monitors, providing a secondary ground cord for redundant protection.The dual ESD wrist strap can be easily adjusted via the buckle feature to fit the operator’s wrist. The conductive interior of the wrist band is made of stainless steel nylon filament and lined with silver-coated nylon yarn. The outer side of the band is constructed with non-conductive nylon yarn.

If one conductor fails the second may provide a fail safe while ESD is disengaged and the cord is replaced. Termination in the form of two pieces of small sized premium crochet band assembled to buckle with two male 4mm stud connectors. Dual ESD wrist strap and cord to be purchased separately.

Specification of Dual ESD Wrist Strap and Cord :

  • Ideal for constant monitor use.
  • 2 x 4mm stud connections on wrist strap and cord.
  • Dual coil cord length: 3m (10ft).
  • Dual wrist strap colour: Dark blue.
  • Dual coil cord colour: Black.
  • Wearable size: Full adjustable via buckle.
  • Wrist strap interior material: Conductive weave and stainless back plate.
  • Wrist strap outer side material: Non-conductive nylon yarn.
  • Compliant to IEC-61340-5-1 International Standard.
  • RoHS and REACH compliant.
  • CE approved.

ESD Standards & Regulations Compliance:

ESD safe label - Bondline IEC 61340-5-1 compliant bondline RoHS compliant
CE Icon WEB-min-alt CE approved bondline REACH compliant

Shop our complete range of ESD wrist straps and cords.

For more information, please get in touch with us on 01793 511000 or send us an email to sales@bondline.co.uk.

Additional information

Select a product:

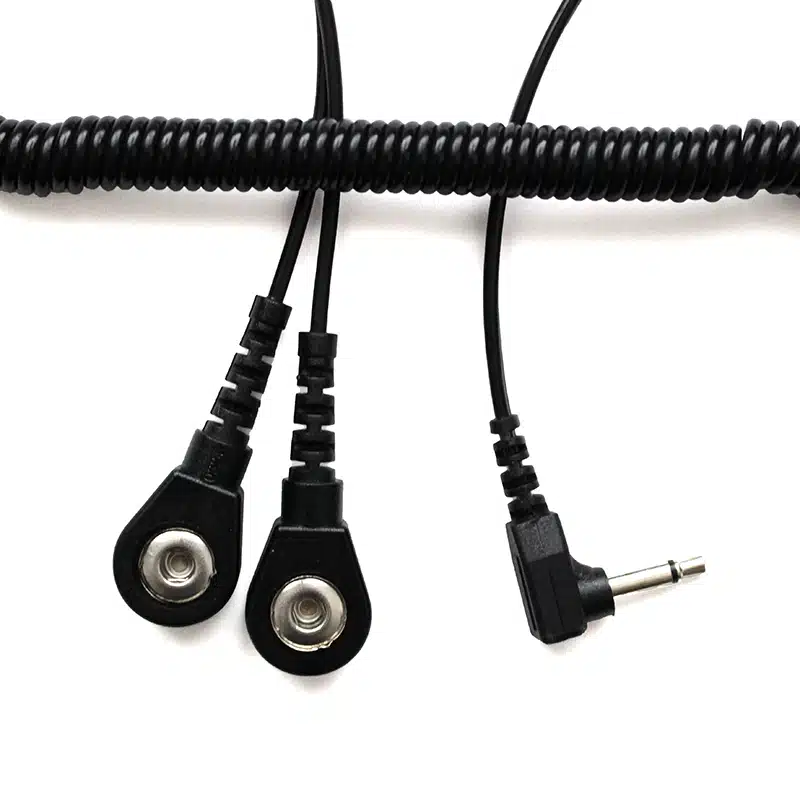

DCC10 – Dual ESD Coil Cord – 3m (10ft), DHCA2 – Dual ESD Wrist Strap

Technical Datasheet

Dual ESD Wrist Strap and Cord: Technical Datasheet
