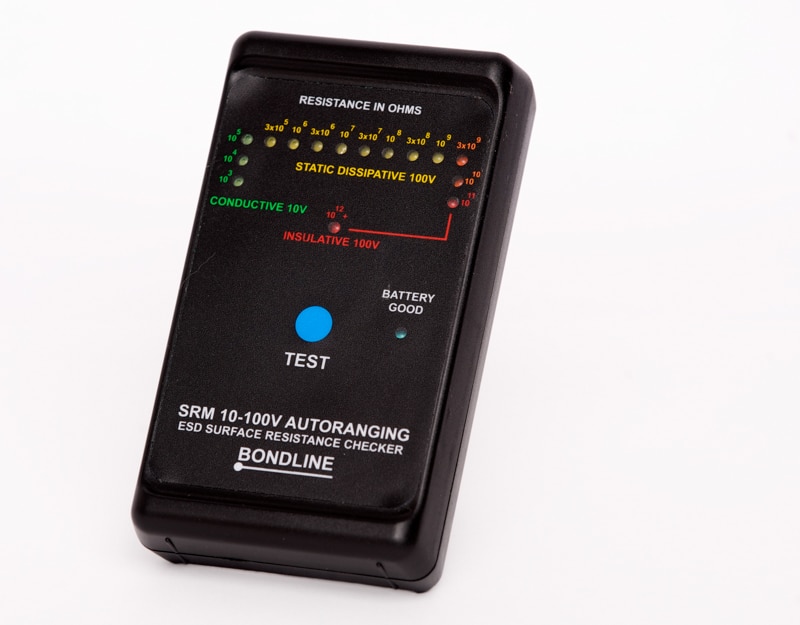

Surface Resistivity Meter (Half Decade)

Description

Surface Resistivity Meter (Half Decade) is a highly accurate, UK‑manufactured ESD meter for testing surface resistivity, point‑to‑point resistance and resistance‑to‑ground across EPA workstations.

The Surface Resistivity Meter (Half Decade) is a precision ESD test instrument designed for auditing and verifying materials used within an Electrostatic Protected Area (EPA). It measures in Ohms per Square and provides reliable readings through the conductive, dissipative and insulative ranges using automatic 10V / 100V test voltages for correct measurement accuracy. This makes it ideal for routine EPA checks, compliance audits and quality control processes.

The unit is assembled at Bondline, manufactured in the UK, supplied with all required test leads, a 9V battery and a protective carrying pouch, along with a 1‑year calibration certificate for traceable accuracy. Incorporating the latest requirements of the IEC 61340-5-1 technical report whilst maintaining the requirements of the EN100 015/1 European Standard. Meter only, icludes carrying pouch. See SRM100K for full test kit.

All ESD test equipment are manufactured to the very highest quality allowing qualification to council directives 89/336/EEC. When testing ESD surfaces, ensure that the surface’s resistance meets 10^(8) ohms to ensure you are complying to the ESD working standards. Testing and auditing all elements within the EPA is essential to comply with industry standards.

Key Features of Surface Resistivity Meter (Half Decade):

• Half‑decade accuracy for precise readings across the static‑dissipative range.
• Automatic 10V / 100V test voltages, switching based on resistance range.
• Measures surface resistivity (Ohms per square) and point‑to‑point resistance (Ohms).
• Designed specifically for EPA surface testing and material verification.
• Bright LED indicators for quick, clear visual feedback.
• UK‑manufactured and assembled at Bondline, ensuring quality and reliability.
• Supplied with 9V battery, carrying pouch, and 1‑year calibration certificate.
• Meets IEC 61340‑5‑1 and EN100 015/1 standards for ESD control.
• Optional custom logo printing available on request.
• Fast UK delivery. Order before 1pm for next day UK delivery. Standard UK delivery 2-3 days*.
• Each unit is supplied with 1 year calibration certificate.
• Full calibration service available. Recommended annually.
• Compliant with CE, UKCA, RoHS and REACH standards.

Specification:

• Meter dimensions: 70 x 130 x 35mm.
• Weight: 103 grams.
• Method of operation: Push button.
• Test range: 10^(3) to 10^(12)+ (1K to 1T) displayed in 1/2 decade.
• Power: Battery operated PP3 9 volt.
• Connections: 2 x 3.5mm jack plug for Earth connection.

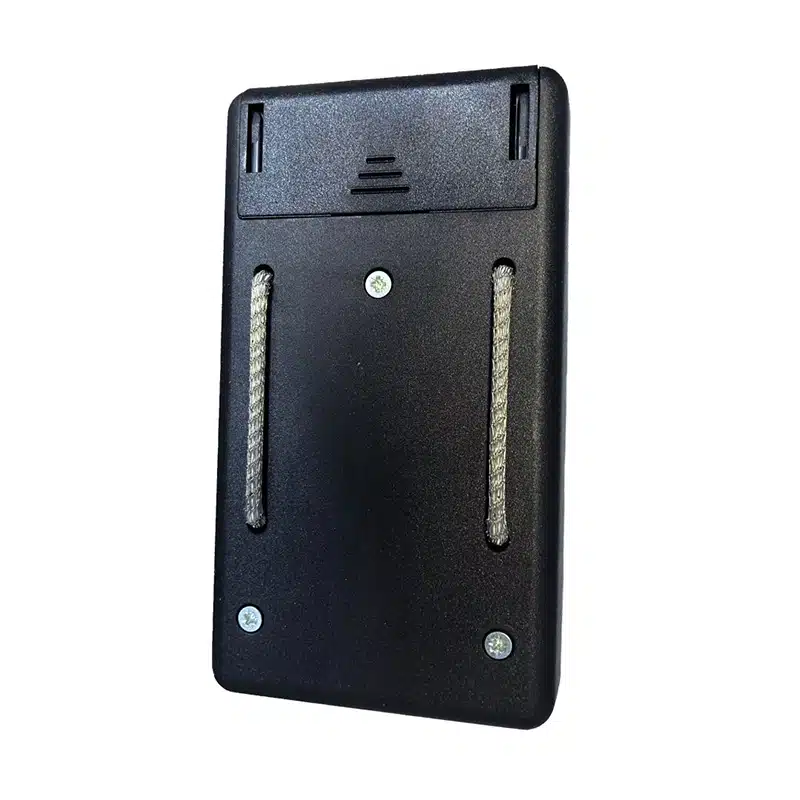

• Probes: Standard Tin Copper Mesh, 52mm length.
• Methods of measurements: Surface Resistivity (Ohms per square) and Point-to-Point Resistance (Ohms).
• Accuracy: +/- 0.5 Decade in conductive range. +/- 0.25 Decades in dissipative range.
• Automatic auto-ranging. 10v and 100v test voltages are incorporated into the tester.

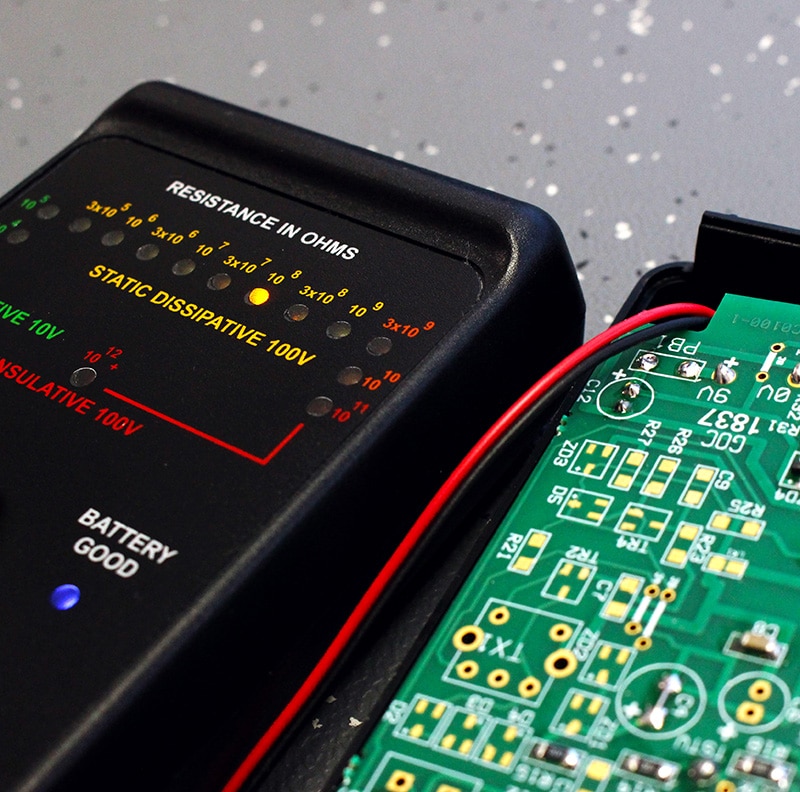

LED Indicators:

ESD Standards & Regulations Compliance:

	IEC 61340-5-1 compliant		Qualification to council directives 89/336/EEC
	European Conformity		UK Conformity Assessed
	RoHS compliant		REACH compliant
