Description

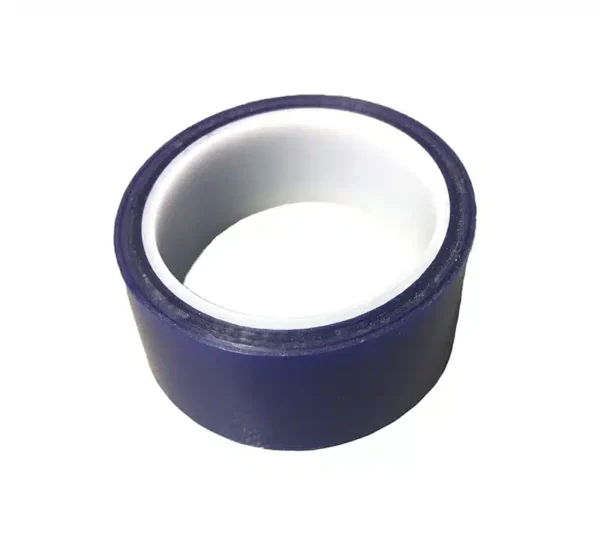

Stationery accessories for use in offices and ESD protected areas. Blue Clear ESD Tape 25mm x 33m. (Custom sizes available on request.)
Non-Static Generating ESD Adhesive Packing Tape. For use within Electrostatic Protected Areas and Cleanroom. Manufactured from a natural fibre base and film coated with a rubber based adhesive to give it non-static generating properties. Both sides of the tape are ESD treated, upper side and adhesive side. The tape’s upper layer is manufactured with antistatic acrylic PSA and the tape’s bottom layer is manufactured from OPP film.
Application
Blue clear ESD tape used to seal conductive/ESD bags or boxes used for the protection of electrostatic sensitive devices., offering a blue tint. The tape is transparent light blue on application and will not obscure printed text or images.
Tape can be written on with a spirit-based marker, which removes easily and cleanly without leaving adhesive deposits. These properties also make the product suitable for the temporary labelling and might be required during inspection and quality control procedures.
All non-ESD tapes should be replaced with Anti Static Tapes to comply with EN-61340-5. The Electro Static Protected Area (EPA) should never have any electrostatic generating tapes.
Key Features:
- Used to seal shielding bags or boxes, or to attach labels
- Transparent with a blue tint
- Does not obscure printed text or images
- Can be written on with a spirit based marker
- Suitable to be used as temporary labels
- Size: 25mm x 33m (custom sizes available on request)
Specification:
- Top Layer Material: Antistatic Acrylic PSA
- Bottom Layer Material: Opp Film
- Film Material/Colour: Opp / Transparent
- Surface Resistivity (Upper and Lower Side): 1x 10^7-^9Ω (ESD S 11.1)
- Thickness of Tape (μm): 60 ±0.002mm
- Adhesive: Anti Static Acrylic PSA
- Heat Resistance Temperature: 80°
- Width (mm): 25mm (custom available)
- Length (mm): 33m (custom available)
- Inner Core Diameter (mm): 76 (±2mm)
- Adhesive Force (N/25mm): 10
- Tensile Strength (N/25mm): 90
- Elongation At Break (%): 18
- Peel Adhesion (N/25mm): 8.5
- Dielectrical Breakdown: Less than 50 volts
ESD Standards & Regulations:
 | IEC 61340-5-1 compliant |  | RoHS compliant |
 | CE approved |  | REACH compliant |

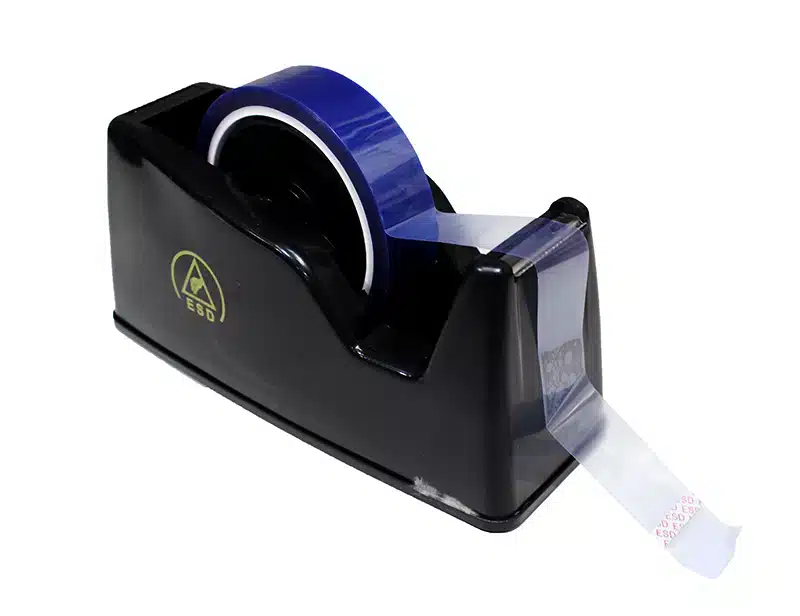

Use in conjunction with ESD Tape Dispenser.
