3 Layer Matting With A Conductive Centre Layer

Our 3-layer conductive matting provides excellent ESD protection for the handling of static sensitive components in static controlled areas. A highly durable work surface that is resistant to oils, acids, abrasion, heat and solder splashes. The matting is 3mm thick and available in dark blue or grey as standard. Excellent lay-flat properties. Available to order in custom sizes on request.



£0.00£525.00 excl. VAT

Description

3-layer conductive matting from Bondline offers a highly durable work surface for the safe handling of static sensitive components in Electrostatic Protected Areas. The mat is made with a synthetic ESD rubber material, giving a cushion feel to the surface. The mat is resistant to oils, acids, abrasion, heat and solder splashes. It has excellent lay-flat properties, allowing for a flat work surface.

The bench mat is easy to clean with an ESD Mat and Table Top Cleaner. It is constructed with three layers: static-dissipative surface, conductive centre and static-dissipative backing. The user can be easily grounded to the mat with a 10mm press stud and earth point. The matting is 3mm thick and available in dark blue or grey as standard. If you would like a bespoke size or custom studding, please get in touch with our sales team.

Please note: IPA wipes, normal cleaners, Dettol or general anti-bacterial products are NOT RECOMMENDED to be used for cleaning ESD mats.

Product Features:

  • 3mm thick
  • Available in custom sizes on request
  • Synthetic NBR rubber material (Nitrile Butadiene Rubber)
  • Excellent lay-flat properties
  • Highly durable – Resistant to oils, acids, abrasion, heat and solder splashes
  • Easy to clean with ESD Mat and Table Top Cleaner

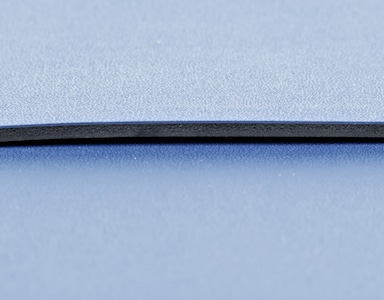

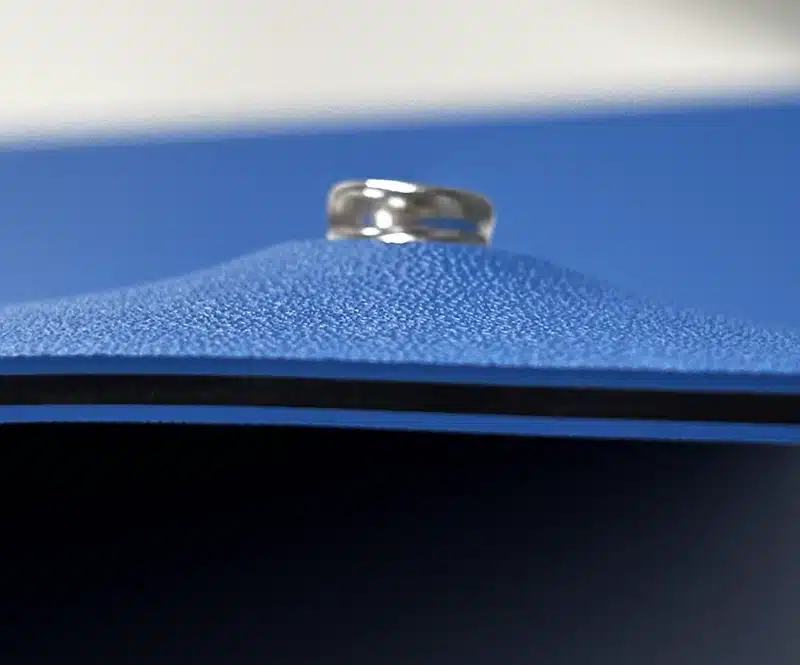

  • Three layers: static-dissipative surface, buried conductive centre and static-dissipative backing
  • Available in dark blue or grey as standard; available in other colours on request
  • All matting can be cut and studded to suit all customer requirements

Standards & Requirements Compliance:

ESD safe label - Bondline IEC-61340-5-1 CE Icon WEB-min-alt CE approved
ESD safe label - Bondline ANSI 520.20 bondline REACH compliant
bondline RoHS compliant



*Due to variations in computer monitor displays, colour shown may not be exact.*

*All bespoke cut mat sizes will have a +/-10% manufacturing tolerance dependent on size.*

Additional information

Weight N/A
Select a product:

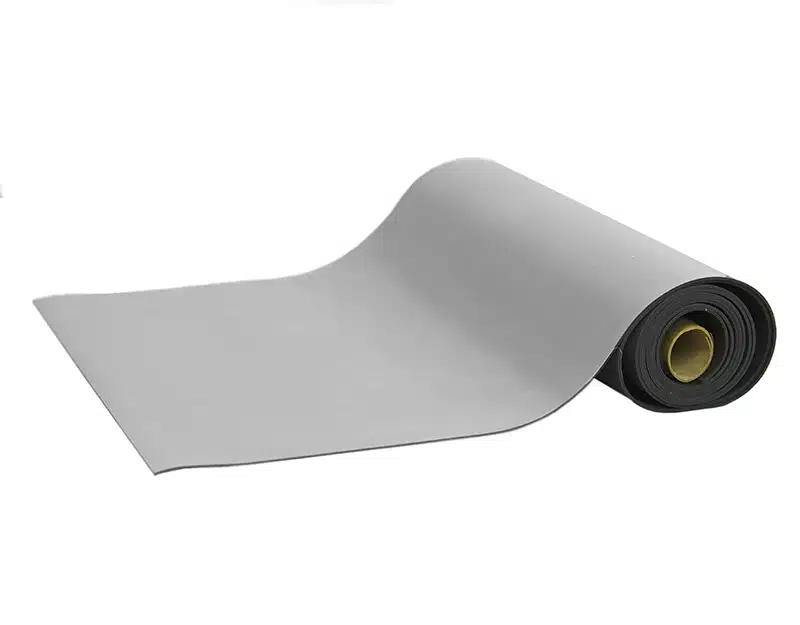

ESD Mat Sample – 3 Layer, KS3LM32 – Standard Mat – 900mm x 610mm (3ft x 2ft), KS3LM42 – Standard Mat – 1.2m x 610mm (4ft x 2ft), KS3LM210 – Dark Blue Full Roll – 600mm x 10m, KS3LMG210 – Grey Full Roll – 0.6 x 10m, KS3LM410 – Dark Blue Full Roll – 1.2m x 10m, KS3LMG410 – Grey Full Roll – 1.2 x 10m

Technical Datasheet

Three Layer Conductive Matting – Technical Datasheet

Cleaning and Maintenance

Since dirt can behave as an insulator, it is important to regularly clean ESD mats before testing and monitoring the resistivity. Cleaning will also ensure optimum electrical performance and, by regularly cleaning, you will maintain the original resistivity of the anti-static mat whilst extending its shelf-life.

Cleaning an ESD Mat

IPA wipes, normal cleaners, Dettol or general anti-bacterial products are NOT RECOMMENDED to be used for cleaning ESD mats. Using these products will shorten the life of the mat and could compromise the electrical properties.

To safely clean an ESD mat, we recommend using a mild, multi-purpose neutral cleaner that doesn’t contain any alkali, ammonia or chemicals on RoHS and REACH SvHC. You should also opt for a cleaner that leaves no streaks or film. Generally, any ESD-safe mat cleaner should be safe to use on workstations, table tops and anti-static mats, including rubber and vinyl.

An example of a good ESD-safe mat cleaner is Bondline’s Staticide Mat and Table Top Cleaner.



Staticide Mat and Table Cleaner

Stud Position Guide

Stud Position Guide - Bondline

Customisation

If you would like to customise the size or studding of our premium textured ESD bench matting, please get in touch with our sales team on 01793 511000, sales@bondline.co.uk or enquire below.

Please note, all bespoke cut mat sizes will have a +/-10% manufacturing tolerance dependent on size.

Contact Us

Our sales and technical team are available to support you with any questions you may have regarding our products, services and more.

To contact our team, please fill in the form below or click here.
