ESD Turntables

ESD Turntables are ideal for working on heavy and awkward assemblies, helping to make the process easier. Each turntable can withstand 100Kg and will prevent back injuries caused by lifting heavy equipment. Lead time is approx.  3-5 days for this product. UK manufactured.

£9,999.00 excl. VAT

In need of guidance? Contact us directly below.

Description

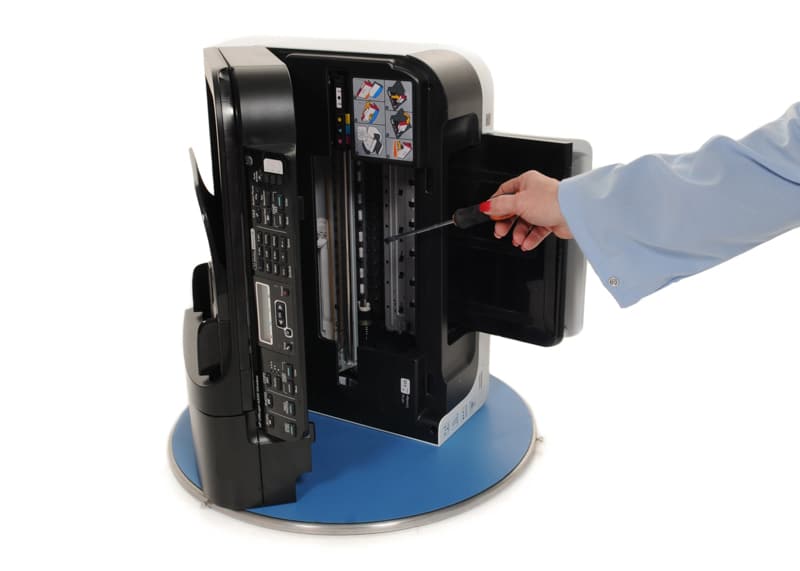

ESD turntables makes working on heavy or awkward assemblies easy!

ESD turntables are ideal for use on large or heavy products or assemblies on the workbench. The need to lift the product is taken away when working on a GYRO-STAT static safe turntable. These ESD turntables come in two different surfaces including natural stainless steel and blue rubber. The turntables are fully ESD-safe and can be safely used within a static protected area (EPA). The static protective turntables are ideal for use within the electronic assembly industry, but can also be used in any other industry.

Each turntable has a diameter of 390mm and can withstand 100KG and will prevent back injuries caused by heavy lifting of equipment. They can be easily connected to ground via a workbench or mat. This range of ESD safe conductive GYRO-STAT turntables are designed and manufactured in the UK. A manual lock prevents spinning temporarily if required.

Why Invest In An ESD Turntable?

Work-related musculoskeletal disorders (MSDs), including manual handling injuries, are the most common type of occupational ill-health in the UK and their prevention is a priority for HSC/E. The Manual Handling Operations Regulations 1992 (as amended) establish a clear hierarchy of measures for dealing with risks from manual handling. Work-related Musculoskeletal Disorders Working practices associated with higher levels of musculoskeletal disorder (MSD) include: Heavy lifting Bending and twisting Repeating an action too frequently Working in an awkward or uncomfortable position The latest estimates from the Labour Force Survey (LFS) show that in Great Britain alone, the total number of MSD cases in 2011/12 was 439 000 out of a total 1 073 000 for all work-related illnesses.

Key Features of ESD Turntables:

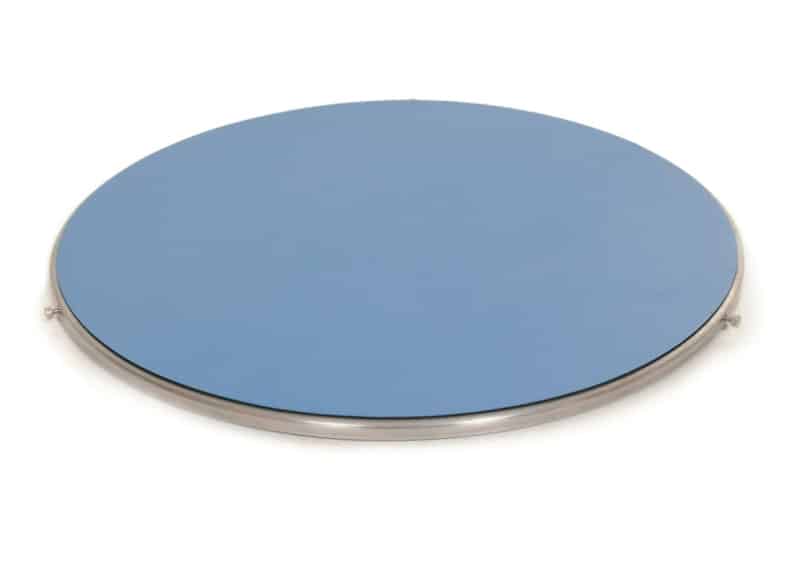

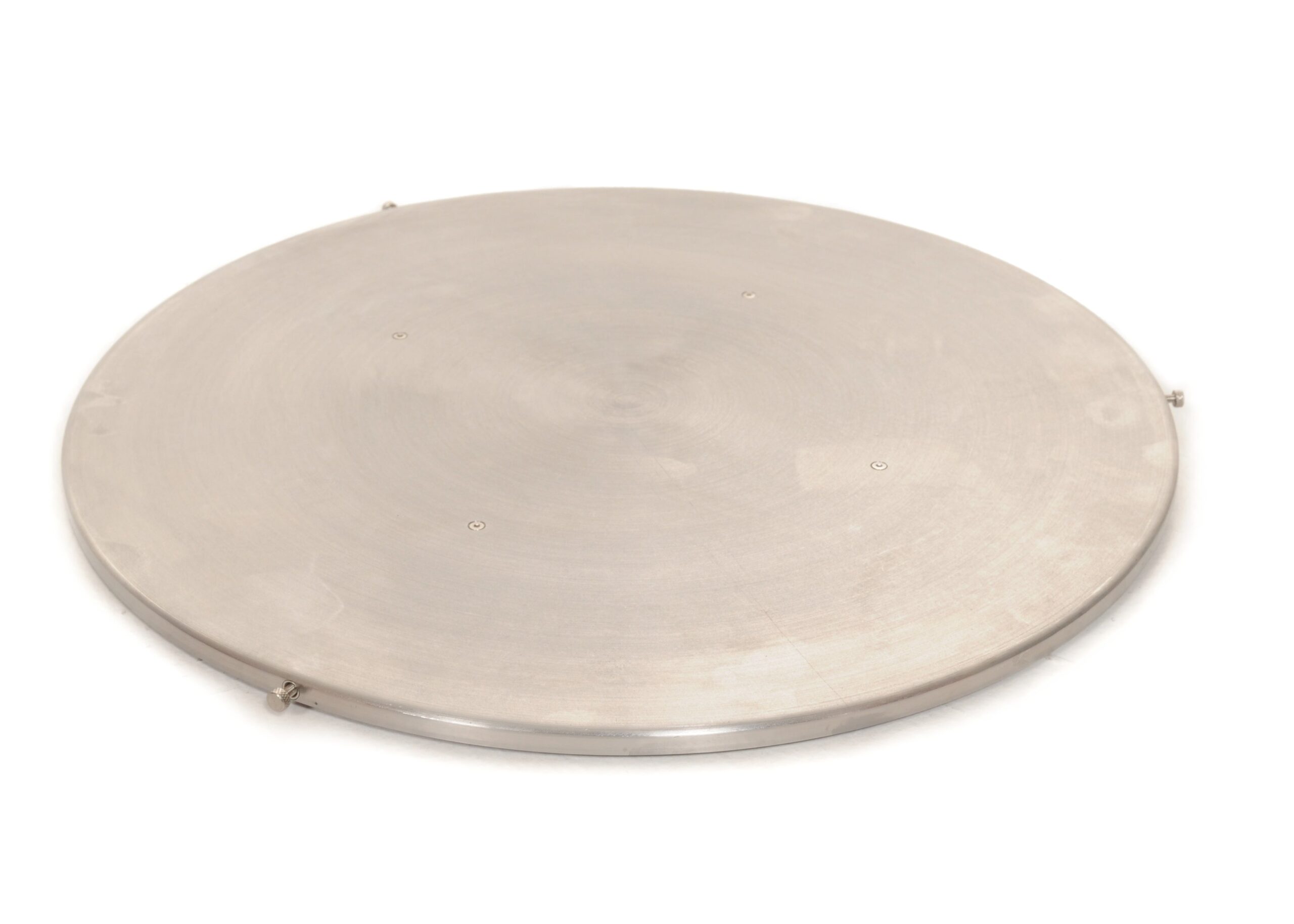

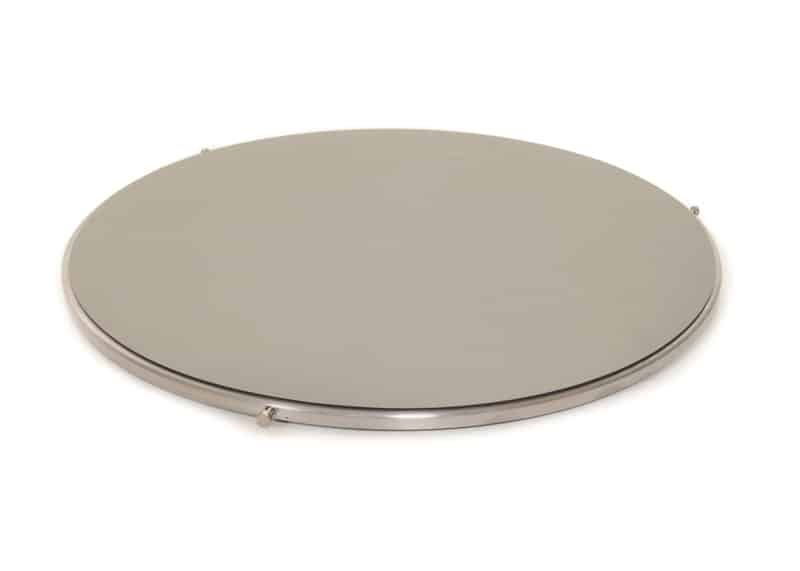

  • Available in 2 different surfaces – Natural stainless steel or blue rubber.
  • Made in the UK – Reliable, high-quality.
  • Can withstand 100KG (UDL) and will prevent injuries caused by lifting heavy equipment.

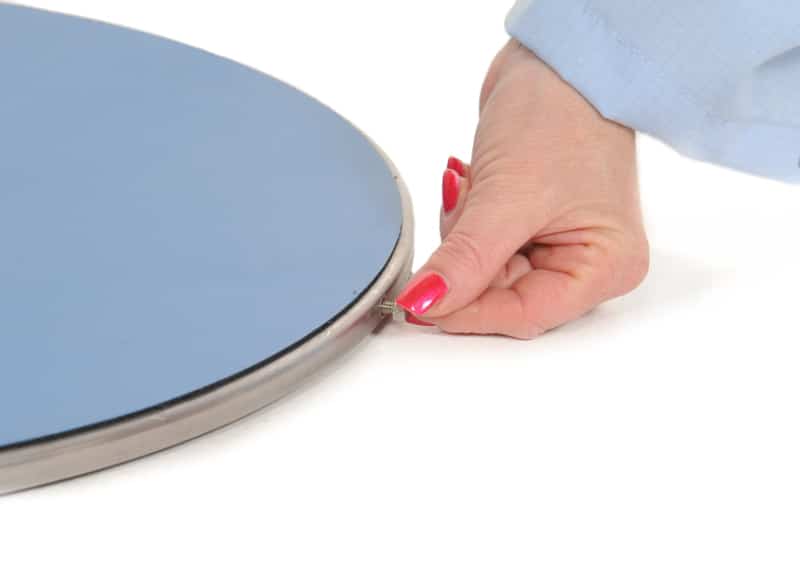

  • One of the three manual screw locks prevents spinning in any position.
  • Very low profile – only 14mm thick.
  • Diameter 390mm
  • Corrosion proof stainless steel construction.
  • Connected to ground via work bench or mat.
  • Lockable in any positions with one of three thumbscrews.
  • Volume resistance 107-109. High quality conductive lubricated low resistance bearings.
  • Quick lead times (3-5 days approx.)
  • CE, RoHS and REACH compliant.
  • Compliant according to IEC-61340-5-1 International ESD Standard.

Meets the Following ESD Standards & Requirements:

ESD safe label - Bondline IEC 61340-5-1 European Conformity
bondline RoHS compliant bondline REACH compliant

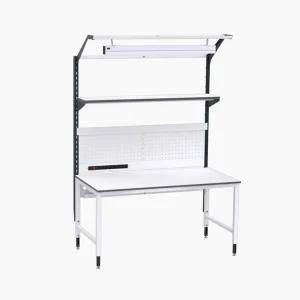

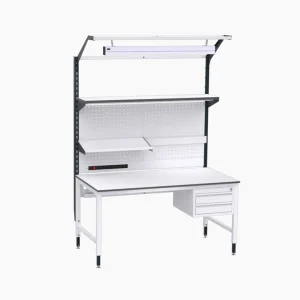

View our full range of ESD workbenches and accessories.

Additional information

Select a product:

TTB390 – Stainless Steel Surface Turntable, TTB390B – Blue Rubber Surface Turntable

Technical Datasheet Specification

ESD Turntable – Technical Datasheet
