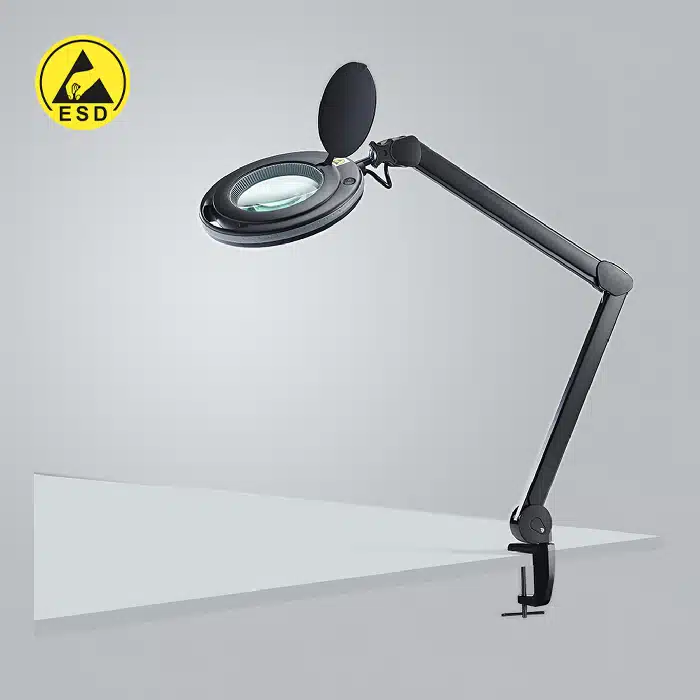

ESD LED Magnifying Lamp – Long Reach

This energy-efficient ESD LED Magnifying Lamp with a glass lens has long reach arms and sturdy joints for complete flexibility and positioning. The lamp is supplied with x3 dioptre lens as standard. Ideal for close-up intricate tasks and industrial applications. Black ESD version.

£9,999.00 excl. VAT

Description

ESD LED Magnifying Lamp has a maximum reach of 1180mm with a heavy metal table clamp for stability and safe field of view. It is a professional LED daylight magnifier lamp with a glass lens suitable for industrial applications. The lamp’s long reach arms and sturdy joints provides complete flexibility and is especially welcome when working with circuit boards and similar delicate objects.

The lamp is supplied with x3 dioptre lens as standard, optional x5 dioptre lens.

Key Features of ESD Magnifying Lamp:

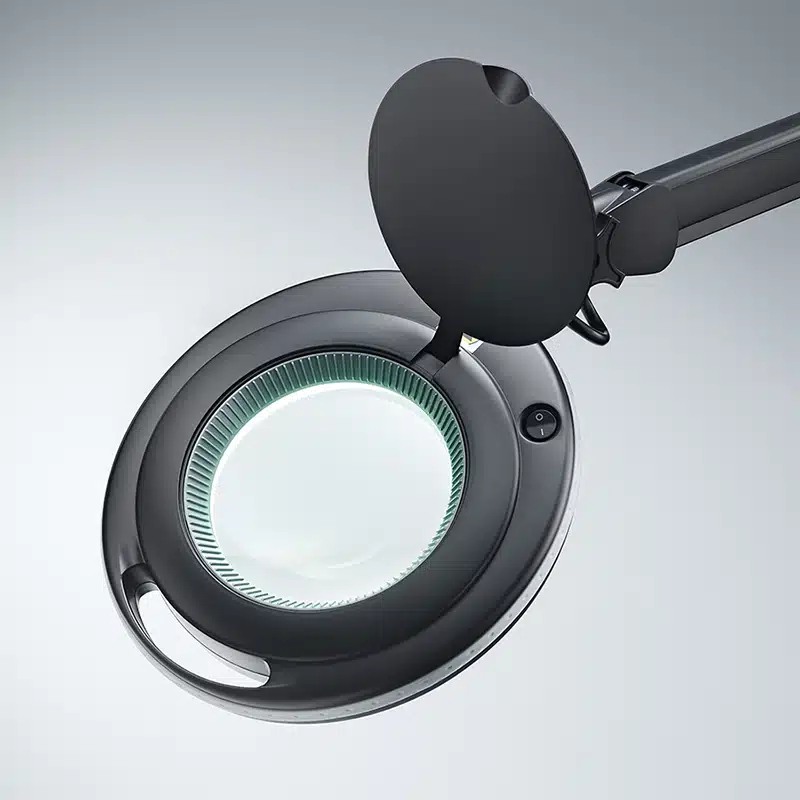

Rotating Head

  • The lamp head can be rotated up and down, from left to right
  • Vertical angle 2000
  • Circular angle 2000

Swing Arm

  • Adjustable swing arm, allowing light to be positioned exactly, where it’s needed

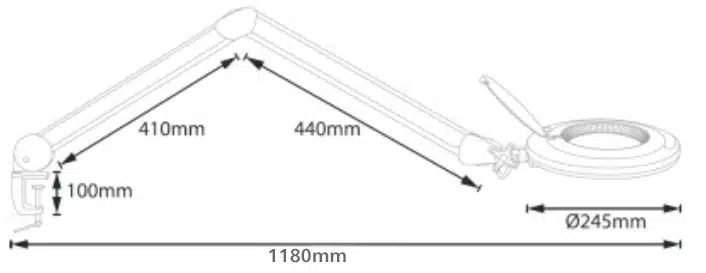

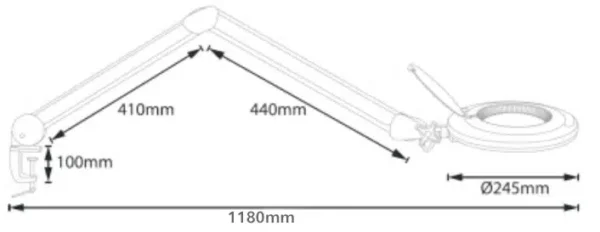

  • Maximum length of the arm – 1180mm

Metal Table Clamp

  • Very heavy metal table clamp for stability and safe field of view. The clamp-lock-system stays firmly in one piece and can be easily clamped onto a table

Single Dimming

  • Single light, warm white or cool white are available

Technical Details:

  • ESD safe
  • Ergonomic and professional
  • 60 white LED bulbs, only 8w in total
  • 3 dioptre (1.75x magnification)
  • Can easily be replaced with x5 dioptre (2.25x mag.) (NOT ESD)
  • Energy efficient
  • Quality 125mm (5″)
  • Bulbs never need replacing
  • Shadow-free, cool light
  • Built-in handle and sun protector cap
  • Glass lens
  • Suitable for industrial applications
  • Long reach arms with maximum reach of 1180mm
  • Sturdy joints
  • Includes heavy metal table clamp with up to 65mm clamping capacity
  • Ideal for close-up intricate tasks
  • Black ESD version
  • Suitable for use in Electrostatic Protected Areas
  • Meets the requirements of IEC 61340-5-1 International Standard
  • Compliant to CE, RoHS and REACH standards

Meets the Following ESD Standards & Regulations:

ESD safe label - Bondline IEC 61340-5-1 CE Icon WEB-min-alt European Conformity
bondline RoHS compliant bondline REACH compliant



View our full range of ESD Workbenches and Accessories.

Additional information

Weight N/A
Select a product:

BTL2 – ESD Magnifying Lamp

Technical Datasheet

ESD Magnifying Lamp – Technical Datasheet
