ESD High Temperature Tape

ESD Polyimide Tape has a high heat resistance remaining stable across a wide range of temperatures. Ideal for masking printed circuit boards during wave solder or solder dip processes, as well as for solder wave masking and electrical insulation. Available in 3 widths: 9mm, 19mm and 25mm. All rolls are 33m long. Clearance price valid while stocks last.

Special Offer

£2.50£7.40 excl. VAT

Description

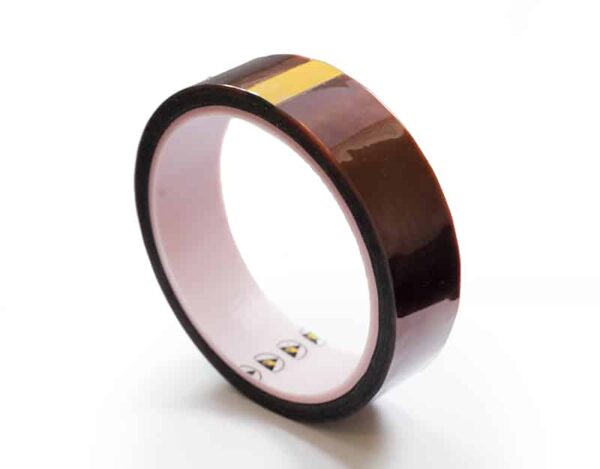

ESD High Temperature Tape has a high heat resistance, remaining stable across a wide range of temperatures. The tape is made of a polyimide film and silicone adhesive designed for high temperature masking applications. Tape will remove cleanly leaving no adhesive residue after exposure to heat. All rolls are 33m long and are available in three widths – 9mm, 19mm and 25mm. Ideal for masking printed circuit boards during wave solder or solder dip processes, as well as for solder wave masking and electrical insulation.

Product Features:

  • Length: All rolls are 33m long.
  • Width: Available in 9mm, 19mm and 25mm.
  • Colour: Brown opaque.
  • Film construction: Polyimide.
  • Temperature resistance: Up to 300°C short term.
  • Application: For high temperature exposure.
  • Leaves no adhesive residue after exposure to heat.
  • Provides heat insulation and protects fragile static-sensitive components during manufacture.
  • Features ESD protective symbol on inner core.
  • Complies to IEC-61340-5-1 International Standard.
  • RoHS and REACH compliant.

Application:

  • Ideal for masking gold leads and other components on boards populated with sensitive integrated circuits.
  • Thick conductive adhesive excellent for conformability to protect critical PCB features.
  • Masking off PCBs for IR reflow ovens or wave soldering under 300°C for ~ 10 seconds.

Standards and Regulations Compliance:

ESD safe label - Bondline IEC-61340-5-1 / EN-61340-5-1 compliant bondline RoHS compliant
CE Icon WEB-min-alt CE approved bondline REACH compliant

View our full range of ESD Tapes.

Additional information

Weight N/A
Select a product:

CLEARANCE PAESD9 – ESD High Temperature Tape – 9mm wide, CLEARANCE PAESD19 – ESD High Temperature Tape – 19mm wide, CLEARANCE PAESD25 – ESD High Temperature Tape – 25mm wide

Technical Datasheet

ESD High Temperature Tape: Technical Datasheet
