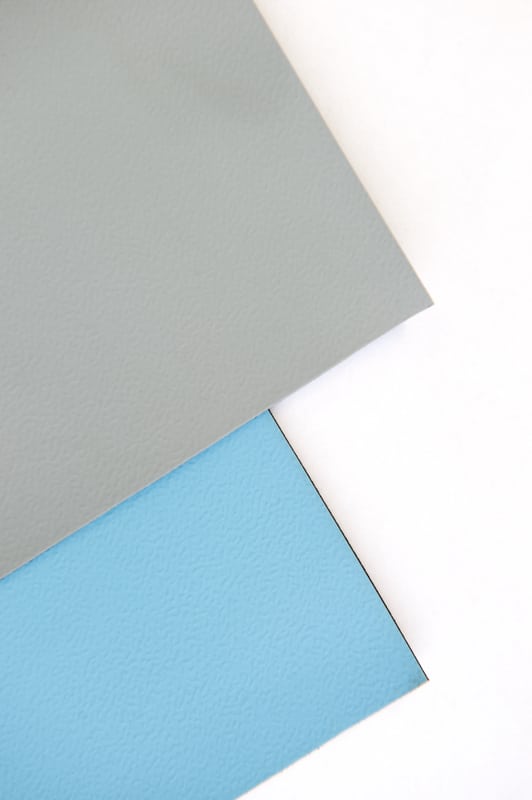

Mid-Range Textured Grey ESD Matting

Description

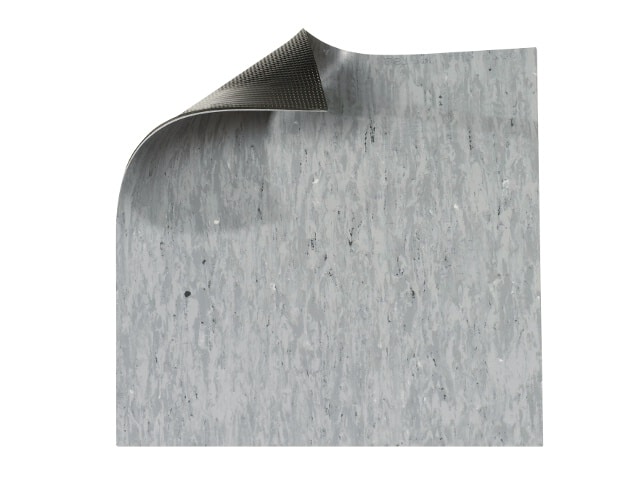

Our mid-range textured grey ESD matting provides great static dissipation to ground for the safe handling of static sensitive components. Suitable for use at workbenches in Electrostatic Protected Areas, the matting allows static electricity to transfer safely to ground while protecting the surface of the static sensitive components during production (provided the mat is connected to Earth via a grounding system).

The matting is 2mm thick and has two layers: a static dissipative surface and a black conductive backing. The static dissipative top layer is resistant to abrasion, heat, solders flux and most commonly used solvents. The black conductive bottom layer provides a superior and consistent ground path to Earth.

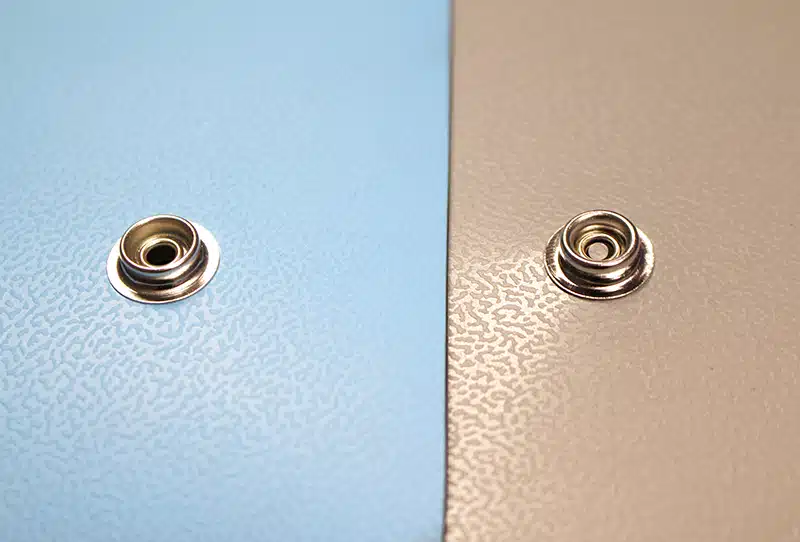

The smooth texture of the bench mat prevents the sliding of components and can be easily cleaned with an ESD mat and table cleaner. Its durable, synthetic rubber material is scratch-resistant and provides a comfortable working surface for the user.

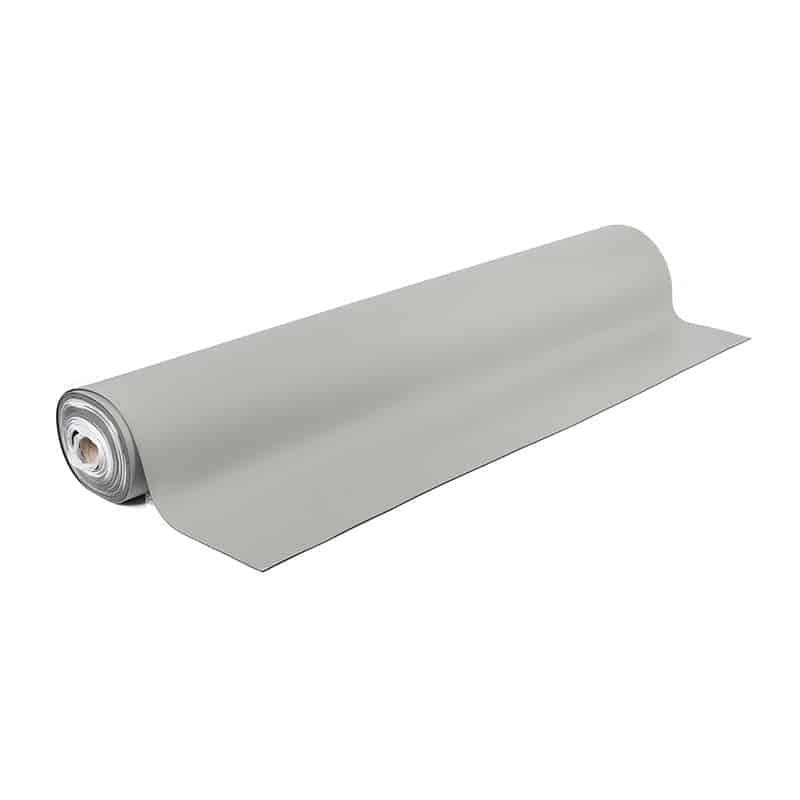

Available to purchase in rolls or cut-size mats. If you would like a bespoke size or custom studding, please get in touch with our sales team.

Product Features of Textured Grey ESD Matting:

• Full roll size 1.2m wide x 10m long
• Mat size 4 x 2ft
• 2mm thick
• Standard roll sizes are 10m x 1.2m and 10m x 0.60
• Durable, synthetic rubber material
• Easy to clean with an ESD mat and table cleaner
• Two-layers: Static dissipative surface, black conductive bottom layer)
• Scratch-resistant, heat-resistant and UV-resistant
• Can be loose-laid at the workbench – no adhesives required
• The dissipative top layer is resistant to abrasion, heat, solder flux and most commonly used solvents

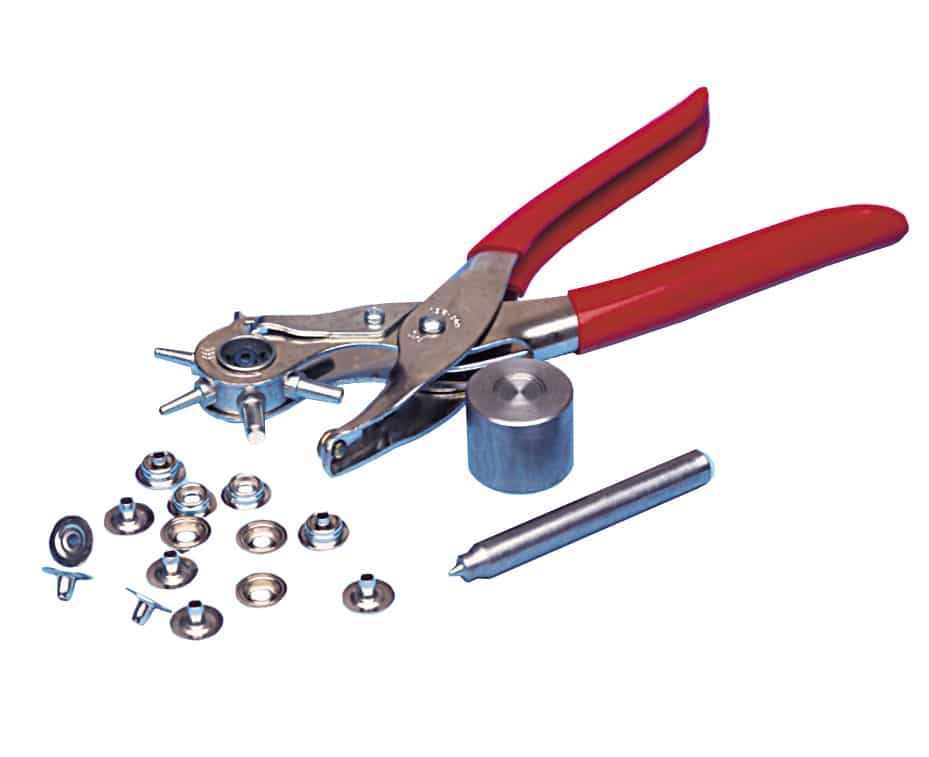

• All matting can be cut and studded to suit all customer requirements

Cleaning Guidance:

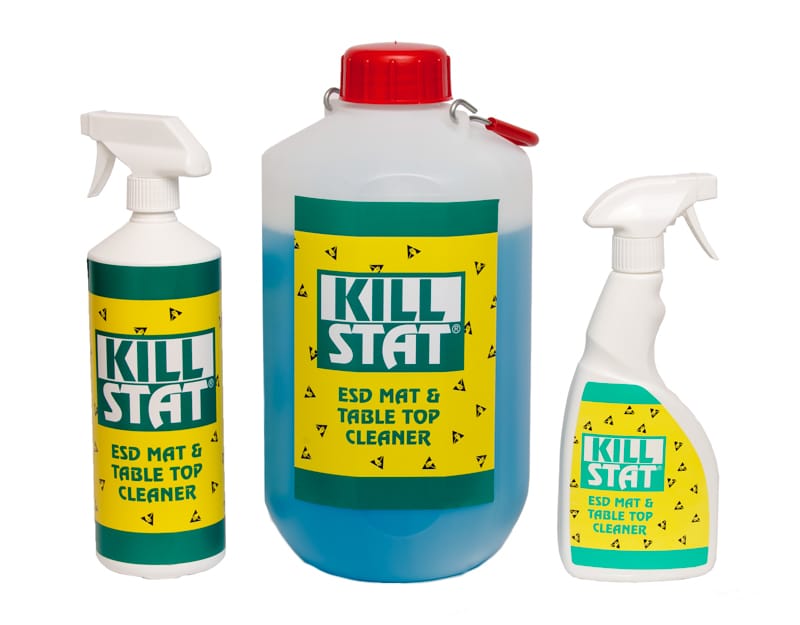

Dirt can act as an insulator, so regularly cleaning ESD mats is essential to ensure accurate resistivity testing, maintain original performance, and extend lifespan. We recommend using a mild, neutral cleaner free from alkali, ammonia, and restricted RoHS/REACH chemicals. Choose one that leaves no streaks or residue. Bondline supplies Staticide ESD mat and tabletop cleaner suitable for cleaning workstations, tabletops, and anti-static mats, including rubber and vinyl.

You should avoid using any cleaner that contains alcohol in its ingredients, as this can dry out the mats, causing them to lose their static fighting abilities. You also shouldn’t use household multipurpose cleaners or any other cleaners not made especially for ESD mats, as they can damage the mat’s surface and compromise electrical properties. These include: IPA wipes, household disinfectants, and antibacterial products.

Standards & Regulations Compliance:

	IEC-61340-5-1		S20.20 guidelines
	ANSI S4.1		CE approved
	RoHS compliant		REACH compliant

*Due to variations in computer monitor displays, colour shown may not be exact.*

*All bespoke cut mat sizes will have a +/-10% manufacturing tolerance dependent on size.*
