Description

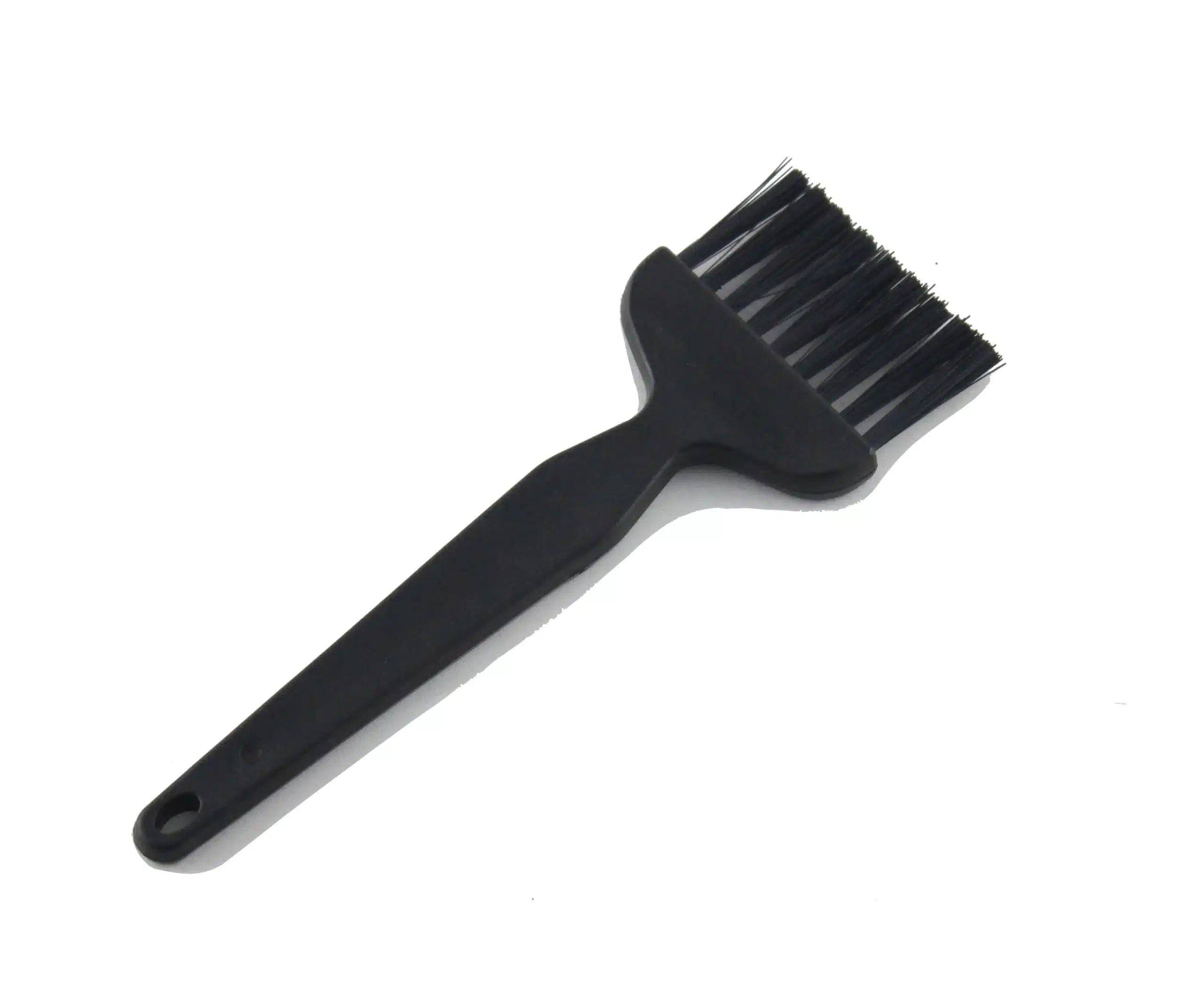

The KB5108 Flat Style ESD Brush 143mm (33 x 25mm) is developed for the safe cleaning of static sensitive components without generating any harmful static charges. The brush has a bristle length of 25mm and row length of 33mm. It features 7 holes in 1 line and does not produce dust particles when in use. The bristles are made with a conductive nylon material and the handle is made with a strong conductive PP material.
If you have any queries regarding ESD brushes, then please do not hesitate to contact one of our experienced sales team on +44 (0)1793 511000 or send us an email to sales@bondline.co.uk.
Product Features:
- 7 holes in 1 line
- Strong conductive polypropylene handle
- Highly conductive nylon bristles
- Ensures no harmful charges build up when brushing
- Safe for use on static sensitive components and assemblies
- Uses corona discharge to dissipate charges
- Flat style brush
- Important tool for any static controlled workstation
- Black brush handle and bristles
Application:
- For cleaning delicate components (PC boards and parts, etc.), integrated circuits and workstations surfaces.
- For both abrasion and residue removal.
Specifications:
- Total brush length: 143mm
- Bristle length: 25mm
- Length of row: 33mm
- Conductive handle resistance: 10^(4) Ω ~ 10^(6) Ω
- Dissipative fibre bristles resistance: 1 x 10^(8) – 1 x 10^(10) Ω
- Standard compliance: ANSI/ESD S20.20*1999 requirements, EN-61340-5-1 / IEC-61340-5-1
Standards and Regulations Compliance:
 | IEC-61340-5-1 / EN-61340-5-1 compliant |  | RoHS compliant |
| Meets ANSI/ESD S20.20*1999 requirements |  | REACH compliant |
 | CE approved |
