Description

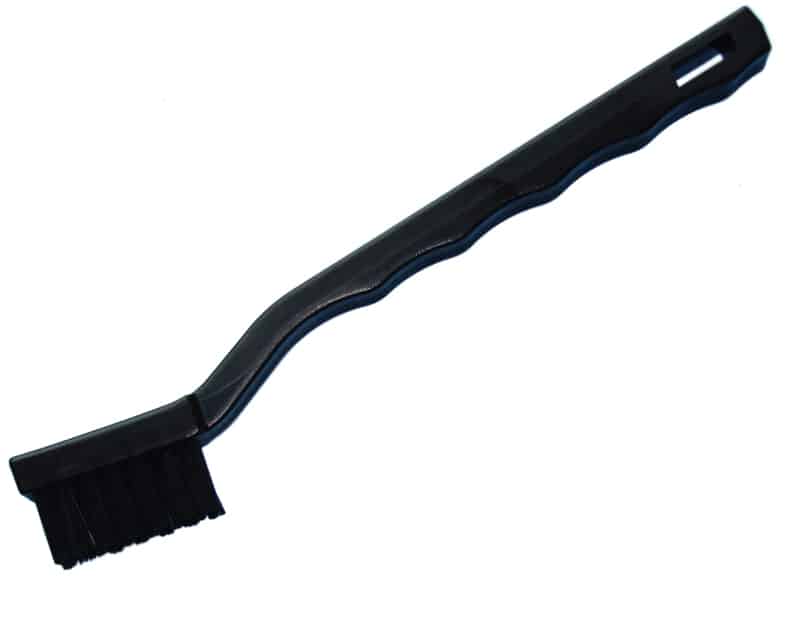

Clearance Killstat ESD Toothbrush (180mm) for only £2.25! This toothbrush style ESD brush is made with a strong, conductive polypropylene handle and soft, conductive fibre bristles. It features a long, easy-to-grip handle and a long brush head, providing ease of use when cleaning static sensitive components and assemblies. This brush does not generate any harmful static charges.
The Killstat ESD Toothbrush 180mm has a total brush length of 180mm and a brush width of 10mm. The bristles measure 15 x 10 x 35mm.
If you have any queries regarding ESD brushes, then please do not hesitate to contact one of our experienced sales team on +44 (0)1793 511000 or send us an email to sales@bondline.co.uk.
Product Features:
- Toothbrush style
- Black brush handle and bristles
- Ensures no harmful charges build up when brushing
- Safe for use on static sensitive components and assemblies
- Easy-to-grip, ergonomic handle for comfort during prolonged use
- Strong, conductive polypropylene handle
- Soft, conductive fibre bristles
- Standard compliance: ANSI/ESD S20.20*1999 requirements, EN61340-5-1 / IEC-61340-5-1
Application:
- For PCB cleaning application
Specification:
- Brush Length: 180mm
- Brush Width: 10mm
- Bristles (H/W/L): 15 x 10 x 35mm
- Bristle resistance: 10^(8) Ω ~ 10^(10) Ω
- Filament: Antistatic nylon
- Handle resistance: 10^(4) Ω ~ 10^(6) Ω
- Handle material: Conductive Polypropylene
Standards and Regulations Compliance:
 |
IEC-61340-5-1 / EN-61340-5-1 compliant |  |
RoHS compliant |
|
ANSI/ESD S20.20*1999 requirements |  |
REACH compliant |
 |
CE approved |
