A Trusted UK Supplier Of ESD Control Products Since 1986

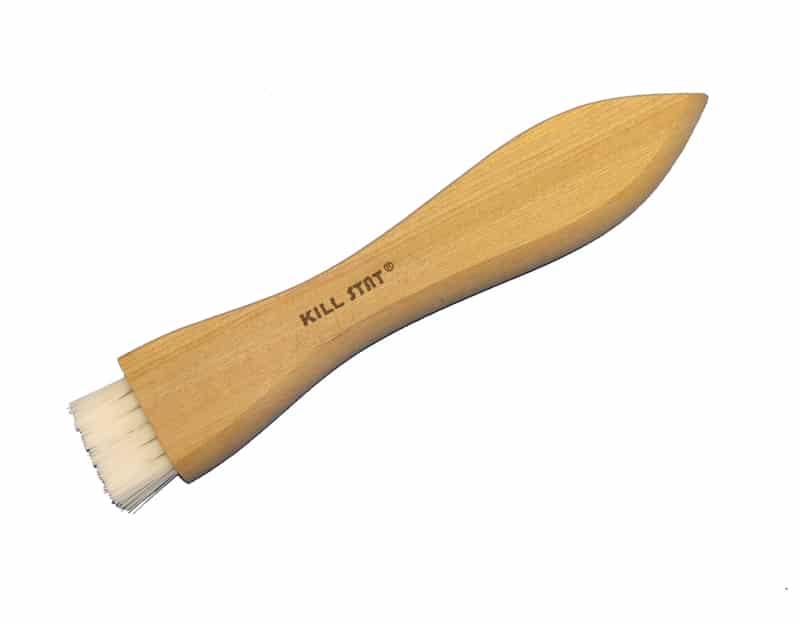

120mm ESD Brush

This small upright brush has anti-static 0.010″ static dissipative Nylon bristle and a static-neutral hardwood handle. Ideal for detail cleaning, such as printed circuit boards and SMT assemblies. Bristle length 32 x 9mm.

£9.35 excl. VAT

Description

The 120mm ESD Brush has a 2 x 6 row pattern, with a 1/2″ trim, and a brush face of 7/8″ x 5/16″. Ideal for detail cleaning, such as printed circuit boards and SMT assemblies. Also great as a scrubbing and dusting brush that works well for getting into tight areas. This 120mm ESD brush allows the safe cleaning of ESD sensitive assemblies without generating any harmful static charges.

Dissipative Brush Materials:

Dissipative Brush Materials allow charges to move more slowly across their volume. Charge placed in one spot on a dissipative object will flow around the object so that all parts of the object share the same charge. If a charged dissipative material is grounded, charges will recombine at a slower rate until the object has no charge. Dissipative materials have a resistance to current flow that is greater than conductors, but less than insulators. Dissipative materials have a surface resistivity equal to or greater than 1 x 10^(5) Ω/sq. but less than 1 x 10^(12) Ω/sq. or a volume resistivity equal to or greater than 1 x 10^(4) Ω-cm but less than 1 x 10^(11) Ω-cm.

Key Features:

  • Ideal for detail cleaning, such as printed circuit boards and SMT assemblies.
  • Strong, static-neutral hardwood handle.
  • Manufactured with static-dissipative Nylon bristle.
  • Brush Length: 120mm.
  • Brush Width: 25mm.
  • Bristles (H/W/L): 13 x 8 x 25mm.
  • Great as a scrubbing and dusting brush.
  • The brushes are approved to BS EN 61340-5.

Technical Specification:

  • Material Composition: Polypropylene 40%; Polyamide 45%; Carbon Fibre 15%.
  • Fill Material: Nylon (Static Dissipative).
  • Handle Material: Wood.
  • Brush Length: 120mm.
  • Brush Width: 25mm.
  • Bristle Size (H/W/L): 13 x 8 x 25mm.

ESD Standards & Regulations Compliance:

ESD safe label - Bondline IEC-61340-5-1 CE Icon WEB-min-alt CE approved
bondline RoHS compliant bondline REACH compliant

View our full range of ESD brushes.

Additional information

Weight N/A
Select a product:

BR4 – ESD Brush – 120mm

Technical Datasheet

BR4: Technical Datasheet
