How PCB Assembly Lines Prevent Electrostatic Discharge (ESD) Damage

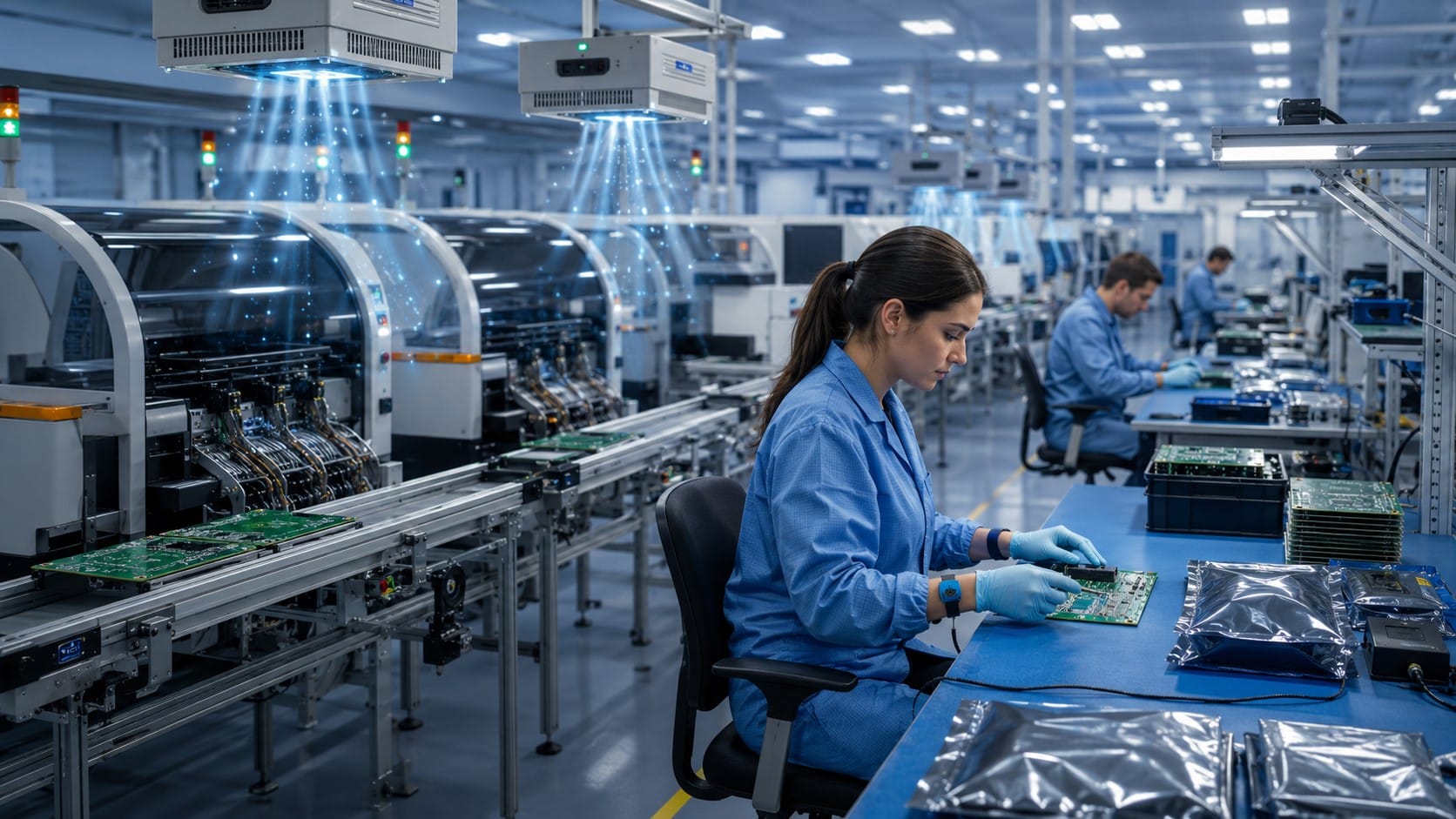

PCB assembly line with ESD protection systems including grounding, ionisers, and SMT production equipment.

What You Need to Know

PCB assembly lines are highly vulnerable to electrostatic discharge (ESD) because continuous material handling, automated conveyor movement, operator interaction, and component placement processes generate static charge throughout the manufacturing environment. Even low-voltage ESD events can damage modern semiconductors, integrated circuits, and PCB assemblies, particularly in high-speed SMT production lines handling highly sensitive electronic components.

In electronics manufacturing, uncontrolled static electricity causes both catastrophic component failure and latent ESD damage. Catastrophic failures destroy components immediately during assembly or testing, while latent defects weaken semiconductor junctions without immediate symptoms. These hidden failures often pass inspection before causing premature field failures, warranty returns, rework costs, and long-term reliability problems.

How Electrostatic Discharge Damages PCB Components

Electrostatic discharge transfers electrical energy directly into sensitive semiconductor structures, including gate oxides, interconnects, and conductive pathways. Even discharge levels below human perception thresholds can damage Class 0 and Class 1 electronic devices. In PCB assembly environments, repeated contact between operators, plastic packaging, conveyor systems, PCB substrates, and automated equipment continuously generates triboelectric charge that must be controlled before discharge occurs.

Which Anti-Static Systems Are Used in PCB Assembly?

Effective ESD protection in PCB assembly relies on multiple integrated control layers working together across the production environment. These typically include:

  • Dissipative workstations and grounded ESD bench mats
  • Wrist straps and heel grounding systems for operators
  • Ionisers for non-groundable materials and insulated surfaces
  • Anti-static sprays for existing plastic and non-ESD surfaces
  • ESD-safe packaging and conductive storage systems
  • Humidity management and environmental controls
  • Verified cleaning, testing, and compliance procedures

No single ESD control method eliminates every source of static generation within a PCB assembly line. Grounding protects operators but not insulated materials. Mats protect work surfaces but not tote boxes or conveyor carriers. Ionisers neutralise charge on insulators but do not replace grounding systems. PCB manufacturers, therefore, use layered ESD protection programmes that control electrostatic risk at every stage of electronics production, handling, storage, inspection, and transport.

Why PCB Assembly Lines Are Highly Vulnerable to Electrostatic Discharge

PCB assembly combines all the conditions that generate and accumulate electrostatic charge at the highest levels: continuous operator movement, repeated handling of dissimilar materials, mechanised conveyor systems, plastic packaging and carriers, and the presence of the most ESD-sensitive components in electronics manufacturing.

Why Modern PCB Components Are More Sensitive to ESD

Component sensitivity is one of the primary reasons PCB assembly lines require strict ESD protection. Modern integrated circuits (ICs), MOSFETs, RF devices, and microelectronic components are increasingly vulnerable to low-voltage electrostatic discharge.

Under the Human Body Model (HBM), many advanced semiconductor devices are classified as Class 0, meaning they can be damaged by ESD events below 250 volts. By comparison, the human body commonly generates between 1,000 and 35,000 volts through normal movement, depending on flooring, clothing materials, footwear, and humidity conditions.

This creates a significant risk gap between:

  • the voltage generated during normal manufacturing activity
  • and the voltage modern components can safely tolerate.

Common Sources of Static Generation in SMT Assembly Lines

  • Pick-and-place machines repeatedly contact component tape reels, feeders, and PCB substrates; every contact and separation generates triboelectric charge
  • Conveyor belts accumulate charge as PCBs travel across non-conductive surfaces
  • Operators moving between workstations carry accumulated body charge from floor friction
  • Reflow ovens and wave soldering systems involve high-temperature processes where component handling before and after creates exposure windows
  • Solder paste application and stencil removal generate charge on PCB surfaces before components are placed
  • Optical inspection and AOI stages involve mechanical handling of populated boards, a stage where latent ESD damage can still occur even though components are soldered

How Humidity Increases ESD Risk in PCB Manufacturing

Low relative humidity below 30% RH, common in UK facilities during winter or in air-conditioned environments, dramatically increases the charge generated by triboelectric contact. ESD incidents increase in winter and in low-humidity periods. ESD control programmes that depend partly on ambient moisture require humidity-independent products to maintain protection year-round.

How Electrostatic Discharge Affects PCB Manufacturing Reliability

ESD damage in PCB manufacturing takes two forms: catastrophic failure and latent degradation. Both are caused by uncontrolled electrostatic discharge events during assembly, test, storage, or handling. Latent damage is the more commercially damaging of the two because it passes quality inspection and causes failures in the field.

Catastrophic ESD damage

It occurs when a discharge event releases sufficient energy to physically destroy a component junction or interconnect. The component fails immediately it will not pass functional testing. While costly in terms of component loss and rework time, catastrophic failures are at least visible. They are caught at test, not in the field.

Latent ESD damage

It is harder to detect and significantly more damaging commercially. A discharge event below the threshold for immediate failure still weakens the component’s junction. The device operates normally. Initially, it passes all incoming inspection, functional testing, and burn-in. But the degraded junction fails prematurely under normal operating conditions, weeks or months after the product reaches the customer. Latent damage accounts for a significant proportion of infant mortality failures and unexplained field return rates in electronics products.

The charge levels that cause damage are invisible to operators. The human perception threshold for electrostatic discharge, the “static shock” sensation, is approximately 3,000 volts. Modern Class 0 and Class 1 devices are damaged by events of 100–1,000 volts. Operators working without ESD protection cannot detect the charge levels that destroy the components they are handling.

Production yield and quality cost implications:

  • Component loss at the assembly stage from catastrophic ESD damage
  • Rework cost for populated boards that fail functional test due to ESD-damaged components
  • Warranty and field return cost from latent ESD damage reaching customers
  • Supply chain disruption when ESD-damaged assemblies are not detected until the sub-assembly or system test
  • Customer audit failures and supply chain disqualification when ESD control programmes cannot be verified

Anti-Static Solutions Commonly Used in PCB Assembly Environments

PCB assembly requires a layered set of complementary anti-static systems, each addressing a specific charge generation source that the others cannot cover. The sections below describe each system, how it integrates into the manufacturing workflow, and what to verify for compliant performance.

Anti-Static Sprays for PCB Assembly Areas

Anti-static spray applies a thin static-dissipative coating to non-ESD surfaces, reducing their surface resistivity from the insulative range (above 10¹¹ Ω) into the static-dissipative range (10⁶ to 10¹¹ Ω). This prevents charge accumulation on treated surfaces and provides a pathway for any charge that does accumulate to dissipate safely rather than discharging into a component.

In a PCB assembly line, anti-static spray is applied to surfaces and materials that cannot be replaced with permanent ESD alternatives: existing workbench surfaces, plastic tote boxes, component carriers, conveyor side guides, reel storage areas, and non-conductive packaging materials within the EPA.

Also Read: What Is Anti-Static Spray and How Does It Work?

Electronics-safe formulation requirements

Sprays used in PCB assembly must meet specific criteria that general anti-static products do not. They must leave no residue that could contaminate solder surfaces or optical inspection targets, must not outgas compounds that affect PCB cleanliness, and must be safe for use in proximity to populated boards. Staticide® General Purpose Anti-Static Spray, available from Bondline, is non-staining, biodegradable, and electronics-safe, with a documented surface resistivity after treatment of 10⁹ to 10¹⁰ ohms.

Humidity-independent performance

It is a critical requirement for PCB facilities. Many standard anti-static agents rely partly on ambient moisture to maintain surface conductivity. In air-conditioned or winter production environments where relative humidity commonly drops below 15% RH, humidity-dependent products lose effectiveness precisely when static generation is highest. Staticide® formulations are tested and proven effective below 15% RH, providing consistent protection regardless of seasonal or climate-control conditions.

Contamination considerations

Do not apply anti-static spray directly to solder pads, board contacts, or exposed component terminals. Apply to surrounding non-conductive surfaces, carriers, tote boxes, and workbench areas outside the active soldering zone where charge accumulates and can transfer to components during handling.

Bondline anti-static spray products for PCB assembly:

  • Anti-Static General Purpose Staticide Spray — for non-porous surfaces including plastic carriers, tote boxes, vinyl, and workbench areas. Surface resistance after treatment: 10⁹–10¹⁰ Ω. Static decay time: under 2 seconds. Effective below 15% RH. RoHS, REACH, CE, and IEC 61340-5-1 compliant.View product → bondline.co.uk
  • Heavy Duty Staticide Anti-Static Spray — for porous surfaces including fabric partitions, carpet, upholstery, and other materials adjacent to or within the EPA that generate charge.View product → bondline.co.uk
  • Staticide Mat and Table Cleaner — maintains ESD mat and workbench performance. Removes flux residues and contamination without degrading antistatic properties. Electrostatic decay time: 0.1 seconds. No alkali or ammonia.View product → bondline.co.uk

ESD Mats and Grounded Workstations

ESD bench mats create a controlled static-dissipative working surface, the primary interface between operators, tooling, and PCBs during assembly and rework. A grounded bench mat connected to earth via a grounding lead provides a defined, tested path for charge to dissipate from the mat surface to earth, at a controlled rate that is safe for both operators and components.

Workstation design in PCB assembly

A compliant ESD workstation for PCB assembly combines several elements into an integrated ground plane:

  • Static-dissipative bench mat (two-layer rubber or vinyl construction), bonded to earth via 1 MΩ grounding lead
  • Wrist strap socket mounted to the bench for seated operator grounding
  • Earth bonding point for all conductive tooling, soldering equipment, and test instruments used at the station
  • Anti-static surface treatment on non-mat areas of the bench and the surrounding structure
  • ESD-safe component trays, PCB holders, and solder iron stands within the working area

Conductive pathways must be verified. A bench mat is only protective if it is correctly grounded and within the specified resistance range. Surface resistance between 10⁶ and 10⁹ Ω to ground is the standard requirement under IEC 61340-5-1. Resistance drifts outside this range, either too high from insulative contamination or too low from conductive contamination, and the mat no longer provides compliant ESD protection. Monthly resistance testing and correct cleaning are mandatory.

Critical maintenance requirement

ESD mats accumulate flux residues, solder spatter, fingerprints, and general contamination during normal PCB assembly operations. These deposits reduce the mat’s surface conductivity and eventually create insulative patches that render sections of the mat ineffective. Only ESD-approved mat cleaners, specifically Staticide Mat and Table Cleaner, should be used. IPA, alcohol, Dettol, household cleaners, and any wax or silicone-based product will degrade mat properties and compromise EPA compliance.

Bondline ESD mat and workstation products:ESD Bench Matting → bondline.co.uk |ESD Workbenches → bondline.co.uk

Ionisation Systems for PCB Production

ESD ionisers generate balanced streams of positive and negative ions that neutralise electrostatic charge on surfaces that cannot be grounded the fundamental limitation that prevents grounding alone from providing complete ESD protection. In PCB assembly, process-essential insulators are unavoidable: PCB substrates, component plastic housings, masking tape used during selective soldering, conformal coating masks, and product enclosures cannot be grounded. Without ionisation, these surfaces accumulate charge that discharges into nearby components.

How ionisers integrate into the manufacturing workflow:

Ionisers are positioned to deliver ionised airflow over the entire working area or to specific zones where non-groundable surfaces are present. The correct ioniser type depends on the production stage:

  • Benchtop ionisers serve individual manual assembly, rework, and inspection workstations. They can be free-standing on the bench or mounted above it on articulating arms to maximise coverage while keeping the work area clear. Ideal for hand assembly, solder rework, and component placement stages.
  • Overhead ionisers deliver uniform ionised airflow across open production areas, SMT lines, conveyor zones, and multi-operator assembly areas. Multiple fans provide even ion distribution without requiring bench space. Suitable for high-volume production environments where benchtop units would be impractical.
  • Ion bars are fixed across laminar flow hoods, mini-environments, and confined process zones. They provide precise static control in areas where airflow must be carefully managed, including cleanroom-adjacent assemblies and optical inspection enclosures.
  • Precision air ionisers use compressed air or nitrogen to deliver targeted bursts of ionised air directly to specific surfaces or components. Particularly useful during reflow oven unloading, where populated boards exit the oven and must be handled before they cool, a period of elevated ESD risk.

Ion balance and maintenance:

Ionisers require periodic verification of ion balance, the ratio of positive to negative ion output. An ioniser that produces more ions of one polarity than the other will charge surfaces rather than neutralise them, creating an ESD risk rather than reducing it. Bondline ionisers feature auto-balance technology and alarm indicators. Monthly ion balance testing using a field meter is required under a compliant ESD control programme.

All Bondline ionisers are CE certified and comply with RoHS, REACH, and IEC 61340-5-1. View Bondline Ionisers → bondline.co.uk

Anti-Static Packaging for PCB Transport and Storage

Anti-static packaging protects static-sensitive PCBs and components from electrostatic discharge during storage within the facility, transit between production stages, and shipment to customers or sub-contractors. ESD packaging is the last line of defence once a board or component leaves the controlled EPA.

PCB handling and protection requirements by packaging type:

Static shielding bags are the primary packaging for assembled PCBs and static-sensitive components stored outside the EPA. They use a four-layer metallised construction providing Faraday Cage protection, external ESD events are contained to the outer metallic layer and do not penetrate to the contents. Bondline’s static shielding bags are 75 microns thick, printed with ESD industry symbols, and available in open-top or loc-top resealable configurations. Compliant with IEC 61340-5-1, RoHS, and REACH. All bags are supplied in packs of 100 pieces.

Conductive PCB racks provide static-dissipative storage and in-process transport of assembled and bare boards. Bondline’s carbon-loaded conductive PCB racks give a continuous conductive path to ground when placed on a grounded surface, preventing charge accumulation on boards during draining, drying, staging, and inter-process transport. Available in multiple sizes and configurations, including flat, L-shaped, and dimple board designs to suit different board thicknesses and assembly stages.

Conductive euro containers and stacking bins are the standard inter-process transport system for SMT components, kitted parts, and sub-assemblies. Bondline’s conductive euro containers are stackable with optional hinged lids and provide charge dissipation across their entire surface when grounded. Flat-fronted conductive picking bins allow easy component access during kitting without removing components from the protected environment.

Pink anti-static bubble bags are used for non-ESD items, such as fasteners, hardware, and accessories, within the EPA. They are anti-static (will not generate charge) but do not provide Faraday Cage shielding. Do not use pink anti-static bags for ESD-sensitive components; static shielding bags are required.

Corstat packaging conductive corrugated board is used for bespoke component trays, inserts, and custom packaging where rigid protection is needed alongside ESD performance. Bondline provides specialist CAD design and bespoke manufacturing of Corstat packaging to customer specifications.

View ESD Packaging → bondline.co.uk |View Storage and Handling → bondline.co.uk

How Humidity and Environmental Conditions Affect ESD Risk

Relative humidity is the most significant environmental variable in electrostatic charge generation. Triboelectric charging increases as humidity decreases. The moisture film present on surfaces at higher humidity provides a natural dissipative path. At relative humidity below 30% RH, charge generation increases substantially. At below 15% RH, common in air-conditioned or winter UK production environments, standard humidity-dependent anti-static treatments lose effectiveness.

Humidity control recommendations for PCB facilities:

  • Maintain relative humidity between 40% and 60% RH where possible in production areas
  • Monitor humidity continuously in EPAs using calibrated hygrometers
  • Increase testing frequency for wrist straps and surface resistivity during low-humidity periods
  • Use humidity-independent anti-static formulations (Staticide®) that maintain performance below 15% RH
  • Never rely on humidity as a primary ESD control measure; it supports but does not replace grounding and surface treatment

Temperature management in reflow and wave soldering processes creates localised ESD risk windows. PCBs exiting reflow ovens carry thermal gradients that increase charge generation during handling. Precision air ionisers positioned at oven exits provide targeted charge neutralisation during this vulnerable handling stage.

Floor construction and cleanliness directly affect the grounding performance of the personnel footwear system. ESD flooring must be kept clean using ESD-approved floor cleaners; standard commercial floor cleaners leave insulative residues that increase floor resistance above the compliant range and break the grounding path between operator footwear and earth. The ESD Floor Cleaner from Bondline is formulated specifically for ESD vinyl and rubber flooring, removing contamination without affecting conductivity.

View ESD Floor Cleaner → bondline.co.uk

ESD-Safe Practices for PCB Assembly Operators

Personnel are the largest mobile source of electrostatic charge in any PCB assembly facility. Normal movement, walking across floors, adjusting clothing, and removing gloves generate charge continuously. ESD-safe operating procedures control that charge before it reaches a static-sensitive device.

Required personnel ESD controls in PCB assembly:

Wrist straps for seated operators

Wrist straps are the primary and most reliable grounding method for operators at fixed assembly, inspection, or rework stations. The wrist strap establishes direct skin-to-ground contact via a coil cord containing a 1 MΩ safety resistor dissipating body charge continuously while protecting the operator from shock. Wrist straps must be worn with the band in direct skin contact, not over clothing or gloves. They must be tested before every shift using a wrist strap tester at the EPA entrance.

Bondline supplies a complete range, including economy, standard, and premium high-comfort wrist straps with silver conductive fibres, anti-allergy options, and custom colour configurations.View Wrist Straps → bondline.co.uk

ESD heel straps and footwear for mobile operators

Operators moving along SMT lines, between workstations, or performing material handling require a grounding system that functions during movement. ESD heel straps worn on both feet connect the operator’s body to the conductive floor surface via a grounding ribbon and 1 MΩ safety resistor. The system only functions when both the footwear and the floor are within specification. Heel straps must be tested at least daily with a combined footwear tester and must be worn on both feet simultaneously.

Bondline supplies standard, premium, double-rubber, and reusable heel strap configurations, all incorporating a 1 MΩ safety resistor and manufactured to IEC 61340-5-1.View Heel Straps and Footwear → bondline.co.uk

ESD garments

Operator clothing is a significant triboelectric charging source, as synthetic fabrics generate thousands of volts during normal movement. ESD lab coats and polo shirts with conductive fibre construction reduce charge generation and prevent body charge from reaching component handling surfaces through the operator’s clothing. Bondline’s ESD garments are exclusive to Bondline, available in blue and white, sizes small to XXXL, and customisable with embroidered logos and branding.

Staticide Hand Lotion for wrist strap effectiveness

Dry operator skin is common in winter or air-conditioned environments, which increases skin resistance and reduces the effectiveness of the wrist strap grounding path. Applying ESD-safe hand lotion before wrist strap testing improves skin-to-strap contact, ensures consistent resistance readings, and reduces false test failures. Staticide Hand Lotion contains no glycerine, silicone, lanolin, or mineral oil; it will not contaminate PCB surfaces or solder joints. Approved for ANSI/ESD S20.20 EPAs and cleanrooms.View Staticide Hand Lotion → bondline.co.uk

Component handling protocols:

  • Always handle PCBs and static-sensitive components by their edges, avoiding touching component bodies, leads, or solder pads
  • Never place static-sensitive devices on non-ESD surfaces, even briefly
  • Return components to ESD-safe packaging immediately if work is interrupted
  • Keep all insulative materials — standard plastic bags, polystyrene, foam cups — out of the EPA
  • Do not bring personal items (phones, non-ESD cups, standard pens) onto ESD workstations without checking their charge-generating properties

Industry Standards for ESD Protection in PCB Manufacturing

IEC 61340-5-1 is the primary international standard governing ESD control in electronics manufacturing, adopted in the UK as BS EN 61340-5-1. It defines the structure of an ESD control programme, the resistivity limits for all surfaces and personnel within an EPA, and the testing and audit requirements for programme verification. All Bondline products are qualified and compliant with IEC 61340-5-1.

ANSI/ESD S20.20 is the US equivalent standard, widely referenced in global supply chains and required by many US-headquartered OEMs, defence contractors, and aerospace primes operating with UK PCB assembly suppliers. Certain Bondline and Staticide® products, including the Hand Lotion, carry explicit ANSI/ESD S20.20 approvals for use in conforming EPAs.

ANSI/ESD S541 governs packaging materials for ESD-sensitive items, defining which packaging types are appropriate at each level of protection (primary, intermediate, and outer packaging) and whether materials may be used inside or outside the EPA boundary. PCB assembly facilities shipping to customers must comply with S541 packaging requirements to avoid supply chain disqualification.

MIL-B-81705 / Federal Test Standard 101, Method 4046 define electrostatic decay criteria for anti-static materials and topical treatments. Staticide® General Purpose and Heavy Duty anti-static sprays both exceed these criteria with a verified static decay time under 2 seconds.

IPC-A-610 — the Acceptability of Electronic Assemblies standard references ESD control as a quality requirement for PCB assembly. Assemblies handled without proper ESD precautions may not meet IPC-A-610 workmanship standards for high-reliability classifications (Class 2 and Class 3).

Compliance audit risk areas in PCB assembly:

Audit FindingCommon CauseCorrective Action
Floor resistance out of rangeNon-ESD floor cleaner used by cleaning staffReplace with ESD Floor Cleaner; retrain cleaning staff
Mat resistance out of rangeIPA or standard cleaner used on matsReplace with Staticide Mat and Table Cleaner
Wrist strap failuresDry operator skin; worn strapsStaticide Hand Lotion; replace failed straps
Insulative surfaces within EPAUntreated plastic carriers or tote boxesApply General Purpose Staticide Spray
No ionisation on process-essential insulatorsIonisers absent from PCB substrate handling areasInstall appropriate benchtop or overhead ionisers
Packaging non-compliancePink anti-static bags used for ESD-sensitive itemsReplace with static shielding bags

How PCB Manufacturers Select Anti-Static Solutions

Assembly-line requirements drive product selection

The correct anti-static solutions for a PCB assembly facility depend on five variables: component ESD sensitivity classification, production volume and workflow layout, surface types present in the EPA, environmental conditions (humidity and temperature), and applicable compliance standards.

Component sensitivity classification

The ESD sensitivity class of the most sensitive component handled determines the minimum performance requirement for all ESD controls in the EPA. A facility assembling Class 0 devices (below 250V HBM) requires a more rigorous programme than one assembling Class 3 devices (above 4,000V HBM). Verify the sensitivity classes of all components in production before specifying ESD control measures.

Contamination sensitivity

PCB assembly involves flux, solder paste, cleaning solvents, and conformal coatings, all of which can interact with ESD control materials. Anti-static sprays must be non-contaminating: no silicone, wax, or residue-forming compounds that could affect solderability, adhesion, or optical inspection. Staticide® formulations are biodegradable, non-staining, and leave no residue that affects PCB cleanliness or process chemistry.

Conductive versus dissipative materials

Not all ESD-safe materials are interchangeable. Conductive materials (below 10⁶ Ω) dissipate charge too rapidly for direct contact with sensitive components, where a fast discharge is itself an ESD event. Static-dissipative materials (10⁶ to 10¹¹ Ω) dissipate charge at a rate that is safe for both components and operators. Working surfaces in PCB assembly must be dissipative, not conductive. Conductive materials are appropriate for flooring, ground planes, and storage containers, not for direct component contact surfaces.

Cleanroom compatibility

PCB assembly for medical devices, defence, and aerospace often occurs in or adjacent to cleanroom environments. Anti-static sprays used in these environments must meet cleanliness specifications, no particle-generating compounds, no outgassing, and no residues that compromise controlled environment classification. Verify cleanroom compatibility from product documentation before use.

Long-term maintenance and scalability

ESD control products require ongoing maintenance: mats must be cleaned regularly, sprays reapplied as the protective layer depletes, wrist straps and heel straps replaced on failure, and ionisers serviced to maintain ion balance. Select products with documented reapplication intervals and maintenance protocols. Build consumable costs — mat cleaner, anti-static spray, wrist straps, heel straps into the facility’s ESD control budget.

What a Complete PCB Assembly ESD Protection System Includes

A complete ESD protection system for a PCB assembly line integrates seven control layers — each addressing a distinct charge generation source. No single layer provides complete protection. The effectiveness of the programme depends on all layers functioning simultaneously and being maintained to verified performance standards.

Layer 1: Grounded ESD flooring

Provides the ground reference for the entire EPA. ESD flooring connects mobile operators (via heel straps) and wheeled equipment (via conductive wheels) to earth continuously. Must be cleaned exclusively with ESD Floor Cleaner to maintain conductivity. Tested quarterly for surface resistance.

Layer 2: Dissipative workstations and bench mats

Create the controlled ground plane at every manual assembly, inspection, and rework station. Bench mats must be bonded to earth, cleaned with Staticide Mat and Table Cleaner, and tested monthly for surface resistance. Non-mat bench surfaces treated with General Purpose Staticide Spray.

Layer 3: Personnel grounding

Seated operators grounded via wrist straps (tested daily). Mobile operators grounded via heel straps on both feet, in conjunction with ESD flooring (tested daily). ESD garments reduce clothing-generated charge. Staticide Hand Lotion ensures consistent wrist strap continuity for operators with dry skin.

Layer 4: Anti-static surface treatment

Existing non-ESD surfaces, plastic carriers, tote boxes, reel storage, and existing benchtops treated with General Purpose Staticide Spray. Porous surfaces adjacent to the EPA treated with Heavy Duty Staticide Spray. Reapplied as specified by the product maintenance interval.

Layer 5: Ionisation

Neutralises charge on process-essential insulators, PCB substrates, component housings, and masking materials that cannot be grounded. Benchtop ionisers at manual workstations. Overhead ionisers above SMT lines and conveyor zones. Precision air ionisers at reflow oven exits. Monthly ion balance verification.

Layer 6: ESD-safe packaging

Static shielding bags for all PCBs and sensitive components stored outside the EPA or in transit. Conductive PCB racks for in-process board storage and transport. Conductive euro containers for component kitting and inter-process handling. Pink anti-static bags only for non-ESD items within the EPA.

Layer 7: Testing, cleaning, and audit

Daily personnel grounding tests. Monthly mat and ioniser checks. Quarterly floor resistance testing. Annual full EPA audit. All ESD cleaning products, Mat and Table Cleaner, ESD Floor Cleaner are used exclusively throughout the EPA. All test equipment CE, UKCA, RoHS, and REACH compliant with traceable calibration certificates.

System performance summary:

EPA LayerBondline Product CategoryVerification
ESD flooringESD Flooring + ESD Floor CleanerQuarterly surface resistance test
WorkstationsESD Bench Mats + Mat and Table CleanerMonthly surface resistance test
Existing surfacesGeneral Purpose Staticide SprayPost-application resistance test
Porous adjacent surfacesHeavy Duty Staticide SprayVisual + periodic resistance check
Seated operatorsESD Wrist Straps + Hand LotionDaily wrist strap tester
Mobile operatorsESD Heel Straps + ESD FootwearDaily footwear tester
Operator clothingESD GarmentsVisual inspection + periodic surface check
Process-essential insulatorsESD IonisersMonthly ion balance check
In-process board transportConductive PCB RacksVisual + grounding verification
Component storage and transitStatic Shielding Bags + Conductive ContainersPackaging compliance audit

Frequently Asked Questions

Why are PCB assembly lines at high risk of ESD damage?

PCB assembly combines continuous operator movement, repeated handling of dissimilar materials, conveyor and automation systems, and the most ESD-sensitive components in electronics manufacturing. Every production stage generates triboelectric charge, and modern ICs are damaged by ESD events far below the threshold of human perception.

What is the difference between catastrophic and latent ESD damage?

Catastrophic ESD damage destroys a component immediately it fails test and is detected before reaching the customer. Latent ESD damage weakens the component junction without causing immediate failure. The device passes all testing but fails prematurely in the field, generating warranty returns and field failure costs that trace back to the assembly line.

Do I need ionisers if I have ESD mats and wrist straps?

Yes. Mats and wrist straps ground conductive surfaces and personnel, but cannot neutralise charge on insulators, PCB substrates, plastic housings, masking materials, and other process-essential non-groundable surfaces. Ionisers neutralise charge on these surfaces and are required for complete ESD protection in PCB assembly.

Can I use isopropyl alcohol (IPA) to clean ESD mats?

No. IPA and alcohol-based cleaners corrode the antistatic properties of ESD mats and bench surfaces, leaving the surface in a degraded state that may pass visual inspection but fails resistance testing. Use only ESD-approved mat cleaners, specifically Staticide Mat and Table Cleaner, on all EPA surfaces.

What ESD packaging should be used for PCBs in transit?

Assembled PCBs transported outside the EPA or shipped to customers require static shielding bags with a four-layer metallised construction providing Faraday Cage protection. Pink anti-static bags do not provide shielding and must not be used for ESD-sensitive assemblies outside the EPA.

How often should ESD controls be tested in a PCB assembly facility?

Wrist straps and heel straps must be tested daily per operator. Bench mats monthly. Flooring quarterly. Ionisers monthly for ion balance. A full EPA audit at least annually. All test equipment requires annual calibration with traceable certificates.

Why Bondline for PCB Assembly ESD Control

Bondline Electronics Ltd has supplied static control products to UK and international PCB assembly operations since 1986. As a UK manufacturer and supplier with over half a million pounds of ESD consumables in stock and next-day delivery on the majority of products, Bondline provides the complete layered ESD solution — from individual consumables to full EPA design, supply, and installation.

Every Bondline product is qualified and compliant with IEC 61340-5-1. Bondline’s technical team offers free ESD assessments, site surveys, and ESD awareness training to BS EN 61340-5-1 — both onsite and virtually — to help PCB assembly facilities design, implement, and audit compliant ESD control programmes.

Explore Bondline’s full ESD product range for PCB assembly:

ESD sprays and cleaning: bondline.co.uk/category/esd-sprays-and-cleaning

ESD packaging: bondline.co.uk/category/esd-packaging

ESD ionisers: bondline.co.uk/category/Ionizers

ESD storage and handling:bondline.co.uk/category/storage-and-handling

For ESD programme advice, site assessments, or bulk supply enquiries, contact Bondline on 01793 511000.

Translate

Cookie Acceptance

Some of these cookies are essential, while others help us to improve your experience by providing insights into how the site is being used.

For more information and to read more about our privacy policy, please visit our Privacy Policy

Necessary Cookies

Necessary cookies enable core functionality. The website cannot function properly without these cookies, and can only be disabled by changing your browser preferences.

Analytics (Recommended)

Necessary cookies enable core functionality. The website cannot function properly without these cookies, and can only be disabled by changing your browser Analytical cookies help us to improve our website by collecting and reporting information on its usage. preferences.
×
