Latent ESD damage is more dangerous than catastrophic failure because it is invisible and undetectable during standard testing. Affected devices continue to function normally, pass all quality checks, and fail later in the field. This delayed failure increases costs, complicates root cause analysis, and significantly impacts product reliability.
When an ESD event occurs, it can either cause immediate failure or weaken internal semiconductor structures without visible impact. In latent cases, devices continue to function normally but carry hidden defects that lead to delayed failure under real-world conditions.
When an ESD event damages an electronic device, two outcomes are possible. The first is catastrophic failure, where the device stops working immediately and is detected during testing.
The second outcome is latent damage. The ESD event weakens internal semiconductor structures such as oxide layers, junctions, or interconnects without stopping the device from functioning. The device passes all tests, ships to the customer, and operates normally for days, weeks, or months before failing.
This delayed failure makes latent ESD damage particularly dangerous. By the time the issue appears, identifying the original cause is extremely difficult. These failures often appear random, leading to increased investigation costs, warranty claims, and reduced customer trust.
| Factor | Catastrophic Damage | Latent Damage |
| When it appears | Immediately at the time of the ESD event | Days, weeks, or months after the ESD event |
| Detectability | Easy to detect during functional test | Invisible to all standard test methods |
| Device function | Device stops working instantly | Device passes all tests and ships normally |
| Point of discovery | Factory floor or incoming inspection | Customer site or field operation |
| Cost to address | Low: reject and replace before shipping | High: warranty claims, returns, investigation |
| Failure pattern | Hard, definitive failure | Intermittent or infant mortality failure |
| Root cause tracing | Clear and straightforward | Difficult: damage evidence degrades over time |
| Frequency | Roughly 10% of all ESD damage events | Up to 90% of all ESD damage events |
| Customer impact | None: caught in house | High: directly impacts end user experience |
| Risk to brand | Minimal: internal quality event | Significant: drives returns and loss of confidence |
An ESD event delivers an extremely short but powerful surge of electrical energy. When this energy level falls below the threshold for immediate destruction, it still transfers enough energy to cause structural damage at the semiconductor level.
Gate oxide layers in MOSFET transistors are only a few nanometres thick. An ESD pulse that does not fully rupture the oxide can still create defects within its structure. These defects act as trap sites for charge carriers. Over time, charge accumulates at these sites and shifts the transistor threshold voltage, degrading performance until the device fails.
ESD energy can locally heat semiconductor junctions beyond safe limits. This thermal stress creates crystalline defects in the silicon lattice. The device continues to operate because the damage only affects a small portion of the junction, but the affected area becomes a point of increased leakage current. As operating stress accumulates, the leakage grows and eventually causes functional failure.
High current densities during an ESD event can cause electromigration in metal interconnects. The metal atoms in the conductor begin to drift, slowly creating voids that increase resistance or hillocks that eventually short adjacent conductors. Neither condition is detectable at the time of manufacture.
Each of these failure mechanisms shares one critical characteristic: the damage exists and the device still functions normally when you test it. Standard ATE equipment measures inputs and outputs, not the internal structural condition of the silicon.
Quality control teams run extensive tests on electronic components and assemblies. Functional tests confirm that devices respond correctly to all input conditions. Parametric tests measure voltage levels, current draws, and timing margins. Burn-in tests apply thermal and electrical stress to accelerate failures. Despite all of this, latent ESD damage consistently escapes detection.
The reason is simple: standard tests measure whether a device works right now, not whether it will continue to work under long-term operating stress. A device with latent ESD damage works right now. The weakened oxide layer has not yet generated enough trapped charge to shift the threshold voltage outside specification. The damaged junction still passes current within limits. The partially voided interconnect still carries current without excessive resistance.
The only test methods capable of revealing some forms of latent damage require specialised equipment such as emission microscopy, scanning acoustic microscopy, or time-domain reflectometry. These techniques are expensive, slow, and cannot economically screen every component in a production environment. They serve as failure analysis tools after failures have already occurred, not as prevention tools during manufacture.
This testing gap means that latent ESD damage moves through your entire quality system undetected. It passes incoming inspection. It passes in-process test. It passes final test. It passes any customer incoming inspection. The failure occurs after all of these screens, exactly when and where you least want it.
Catastrophic ESD damage has a measurable, bounded cost. You replace the damaged part, track the event, review your handling procedures, and move on. The financial impact is the cost of the rejected component.
Latent ESD damage generates a cascade of costs that multiply far beyond the value of the original component. These costs fall into several categories.
When a device with latent damage fails in the field, your customer generates a warranty claim or return. You pay for collection, handling, and replacement. In many cases you pay logistics costs both ways. If the failure occurs during a critical application, you may also face penalties for downtime.
Returns require investigation. Your engineering team spends time trying to identify the root cause of the failure. Because ESD damage evidence degrades during operation, and because latent damage is microscopic, analysis frequently produces inconclusive results. Teams log the part as a no-fault-found and close the investigation. The true cause remains unaddressed, and the next batch of affected devices continues to fail.
Customers who receive products that fail prematurely lose confidence in your brand. This is especially damaging in industrial, medical, and defence markets where reliability is not optional. A single latent ESD issue in a critical product can cost you a customer relationship that took years to build.
If a latent ESD problem reaches a systemic level, you may need to recall product, rework assemblies, or redesign handling procedures. These activities stop production lines, consume engineering time, and delay your next programme.
Because you cannot detect latent ESD damage with standard test equipment, prevention is the only effective strategy. A comprehensive ESD control programme addresses every stage of the product lifecycle where ESD events can occur.

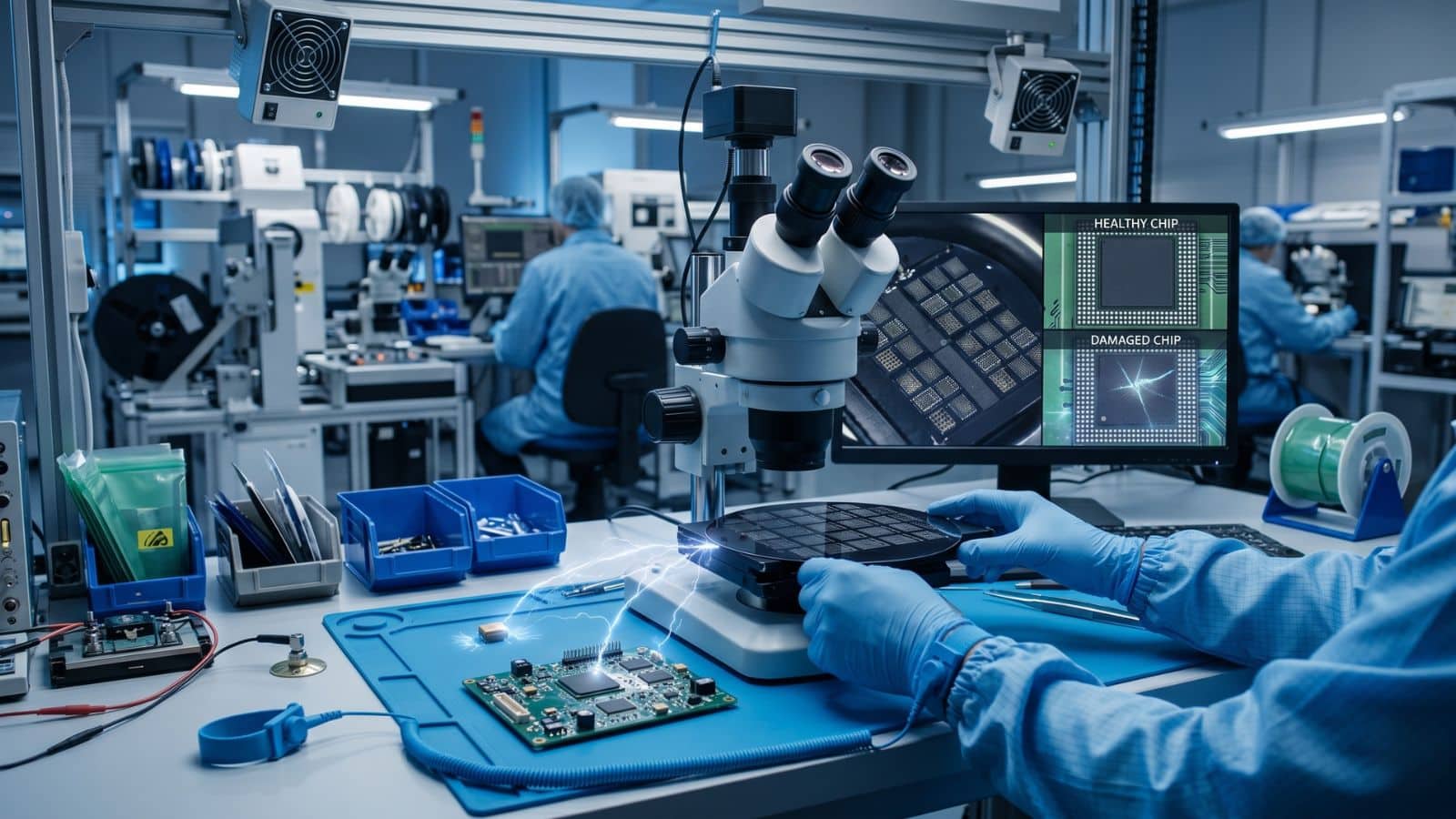

Establish clearly defined EPAs in all areas where you handle ESD-sensitive devices. EPAs combine grounded work surfaces, grounded personnel via wrist straps and footwear, ionisation systems to neutralise charges on insulators, and humidity controls to reduce charge generation. Every element of the EPA works together to keep electrostatic fields below the threshold that causes device damage.
The human body is one of the most common sources of ESD events in electronics manufacturing. A person walking across a carpet can accumulate thousands of volts of static charge. ESD wrist straps connected to a common ground point via a grounding cord can dissipate this charge before it can transfer to static sensitive devices. Ground the operator before the operator touches the component.
ESD damage does not only occur at the workbench. Devices in transit can accumulate and discharge charge if they sit in ordinary packaging. Static shielding bags, conductive boxes, and conductive foam provide Faraday cage protection that prevents external electrostatic fields from reaching the enclosed components.
Technical controls fail without human understanding and compliance. Every person who handles ESD-sensitive devices needs to understand why ESD control matters, what latent damage is, and how to use the protective systems around them correctly. Training programmes that explain the 10:1 latent damage ratio give personnel a clear picture of the hidden risk they are managing.
ESD control equipment degrades over time. Wrist straps lose continuity. Work surface mats accumulate contamination that reduces their conductivity. Ionisers become unbalanced. A monitoring and auditing programme with documented test intervals catches equipment failure before it allows ESD events to damage your products.
Ask yourself these questions. If you answer YES to two or more, latent ESD damage is actively affecting your reliability.
Catastrophic ESD failure is the problem you can see. Latent ESD damage is the problem that costs you the most. It passes your tests, ships to your customers, and fails at the worst possible moment. With up to 90% of ESD-related failures being latent rather than immediate, and with a 10:1 ratio of hidden damage to visible damage, the invisible threat is far larger than most manufacturers realise.
The only way to address latent ESD damage is to prevent it. A correctly designed, implemented, and maintained ESD control programme keeps electrostatic events below the level that causes any damage, catastrophic or latent. It protects your product reliability, your warranty costs, your customer relationships, and your brand reputation. Bondline Electronics provides the products, expertise, and support your team needs to build an ESD control programme that addresses the full risk, including the risk you cannot see.
Latent ESD damage is physical damage to a semiconductor device caused by an electrostatic discharge event, where the damage level falls below the threshold required for immediate, detectable failure. The device continues to function normally after the ESD event but carries internal weaknesses that cause it to fail earlier than it should during normal use.
You cannot detect latent ESD damage with standard electrical testing. You can identify that a latent ESD problem exists by tracking patterns: unexplained field failures, high no-fault-found rates in your returns analysis, and early-life field failures in products that passed all factory tests. These patterns point to latent damage even when individual failure analysis cannot confirm it.
The 10:1 ratio means that for every device that fails catastrophically and visibly from ESD, approximately 10 more devices carry latent damage that will cause field failures later. This ratio shows that catastrophic failures are not the primary problem with ESD. The far larger problem is the invisible population of damaged devices that pass your tests and reach your customers. If you see one catastrophic ESD failure, you potentially have ten more latent failures already in your supply chain or in the field.
Burn-in testing applies thermal and electrical stress to accelerate failures and screen out weak devices. In some cases this process reveals latent ESD damage before the product ships. However, burn-in is not specifically designed to address ESD damage, and its effectiveness depends on the type of damage and the stress levels applied. It is not a substitute for ESD prevention. Devices that survive burn-in can still carry damage that causes failures later in service life.
A basic ESD control programme includes grounded work surfaces in all handling areas, wrist straps for all personnel who directly handle ESD-sensitive items, ESD-compliant packaging for storage and transport, documented procedures for handling sensitive devices, regular testing of ESD control equipment, and training for all relevant staff. Standards such as ANSI/ESD S20.20 and IEC 61340-5-1 provide detailed frameworks for building and certifying a complete programme.
Catastrophic ESD damage costs the price of the rejected component plus the labour to identify and replace it. Latent ESD damage costs include field logistics, warranty replacement parts, failure analysis engineering time, customer relationship management, and in severe cases, product recalls or redesign. Industry estimates place the field failure cost at 10 to 100 times the manufacturing cost of the original component. When you factor in brand impact, the cost multiplier rises further.
Bondline Electronics supplies a comprehensive range of ESD control products including wrist straps, grounding systems, work surface mats, ionisers, ESD-compliant packaging, and monitoring equipment. Every product in the Bondline range supports a specific element of the control strategy that prevents ESD events from occurring and prevents latent damage from entering your supply chain. Contact the Bondline team to discuss the ESD control requirements for your specific application and handling environment.
