Corstat® Inplant Handlers

Description

Corstat Inplant Handlers are the ideal solution for safe transit and storage of chips, boards and circuits

ESD safe Corstat Inplant Handlers are a versatile, low-cost storage and shipping method, giving high physical protection during handling of printed circuit boards. Used extensively by a wide range of electronic manufacturers, Corstat Inplant Handlers provide the perfect balance between ESD protection, flexibility, longevity and cost effectiveness.

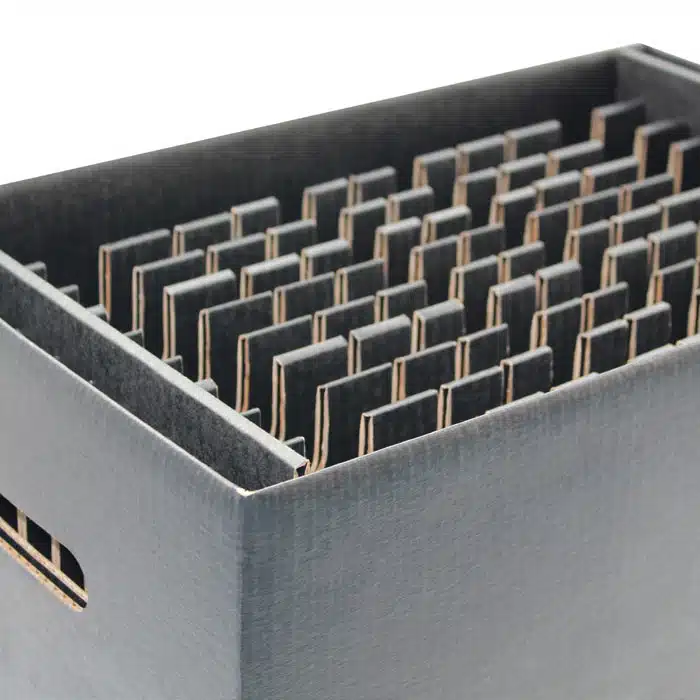

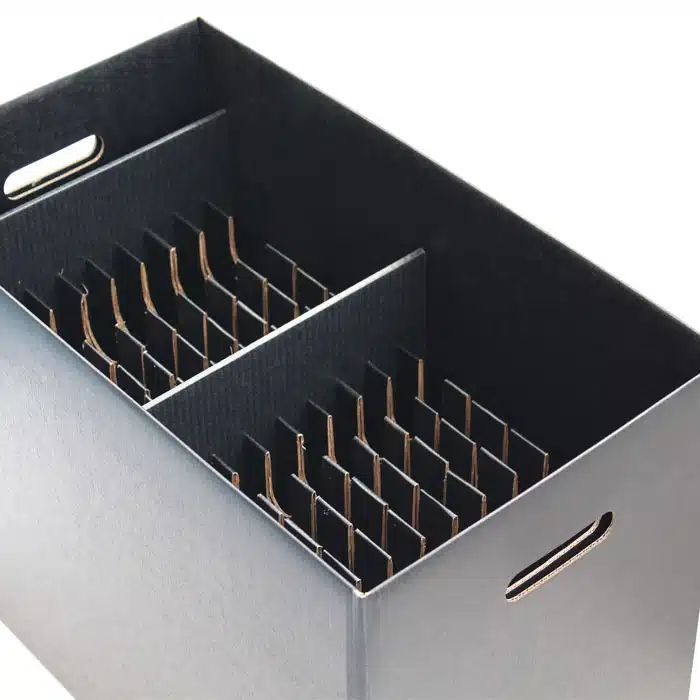

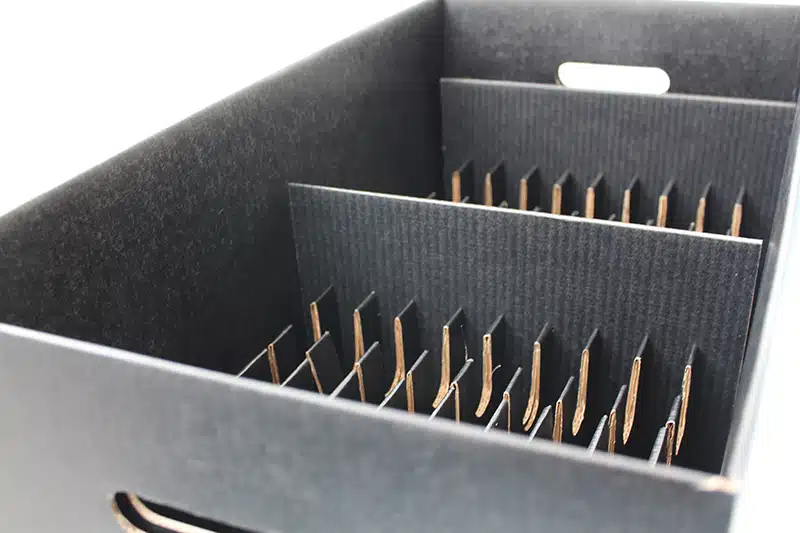

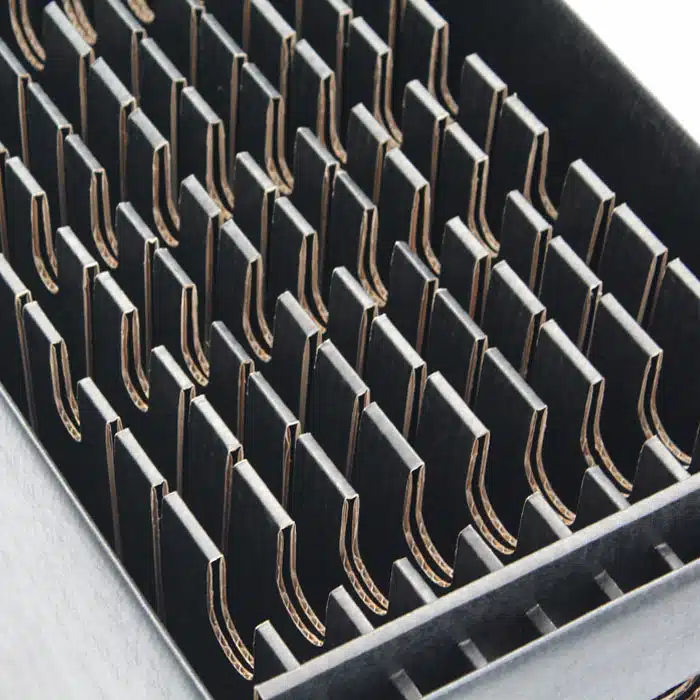

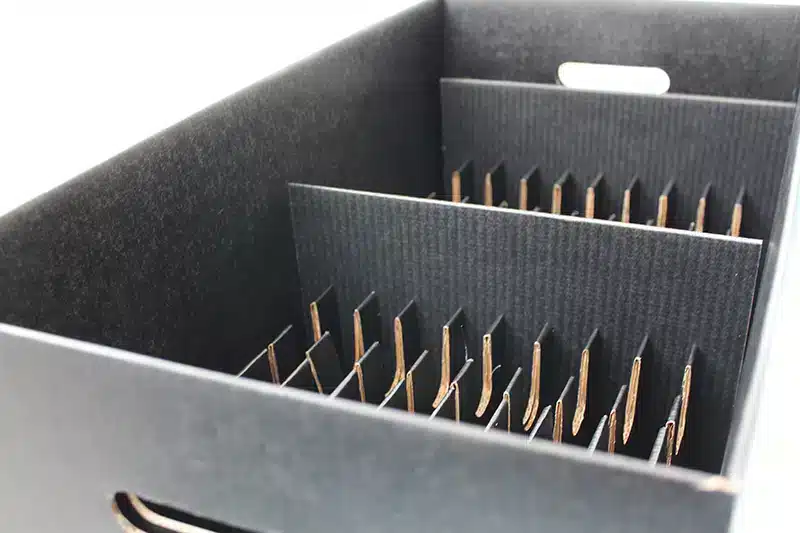

The fully adjustable anti-static inplant handlers allow you to accommodate almost any board size with adjustable partitions to achieve the desired cell size. Manufactured from Corstat® Conductive Fibreboard and are available from stock, on short lead times and in a range of sizes. Corstat® Inplant Handlers offer numerous benefits such as a 10-year performance guarantee, a high-quality finish, good durability / lifespan and relatively low cost.

When supplied with a lid, the Corstat® coating provides “Faraday Cage” protection to effectively channel any static charges around the outside of the container. This helps to eliminate static damage to your items, reducing the costs associated with returns, stock not fit for sale and even customer dissatisfaction. Corstat® Inplant Handlers are also fully recyclable and biodegradable which helps businesses minimise disposal costs. The inert nature of the material / coating also means the material and any products manufactured from it are completely safe to handle with no requirement for PPE.

Designed to have different cell configurations and come complete with drop-on lids

Corstat® Inplant Handlers are available to order from Bondline in a wide range of sizes. These standard sizes are held in stock in our warehouse to ensure short lead times and competitive pricing. Corstat® is the ESD industry standard for conductive fibreboard. Manufactured using Corstat® conductive fibreboard, Inplant Handlers offer unbeatable ESD protection.

Key Benefits of Corstat Inplant Handlers:

Flexibility allows for use with wide range of board sizes.
Reusable across multiple lines, products and projects.
Quick lead times, deliveries take 2-3 working days approx.
Supplied flat and unassembled for quick delivery.
Allows for safe and efficient handling of multiple items in a single trip.
Corstat® coating ensures high level of ESD protection.
Durable board grade and manufacturing processes ensure robust physical protection.
Standard in-stock sizes eliminates design and tooling charges.
Designed to have different cell configurations and come complete with drop-on lids.
Biodegradable and recyclable material minimises disposal costs.
10-year guarantee on effectiveness of Corstat® coating, reducing lifetime costs.
Custom packaging available with Bondline, tailored to your exact requirements.
Compliant to ESD, RoHS and REACH standards.

	IEC 61340-5-1 compliant		CE approved
	RoHS compliant		REACH compliant

Customise Your Corstat Inplant Handlers

The standard inplant handler range can be tailored to your requirements through the use of adjustable partitions. Simply select the best Corstat® Conductive Inplant Handler from our stock range to suit your requirement, or, for a bespoke size, please get in touch with our team. We will be happy to assist in configuring or designing the most suitable product for your requirements. With the help of Bondline, you are certain to find the ideal solution for you.

To discuss bespoke Corstat packaging, please get in touch with a member of our team on +44 (0)1793 511000 or send us an email with your requirements to sales@bondline.co.uk.

Explore our full range of Corstat® packaging products.

Additional information

Weight	N/A
Select a product:	Corstat Inplant Handlers – 4000-10 – 10 Cells, Corstat Inplant Handlers – 4000-20 – 20 Cells, Corstat Inplant Handlers – 4000-30 – 30 Cells, Corstat Inplant Handlers – 4000-40 – 40 Cells, Corstat Inplant Handlers – 4001-10 – 10 Cells, Corstat Inplant Handlers – 4001-20 – 20 Cells, Corstat Inplant Handlers – 4001-30 – 30 Cells, Corstat Inplant Handlers – 4001-40 – 40 Cells, Corstat Inplant Handlers – 4003-10 – 10 Cells, Corstat Inplant Handlers – 4003-20 – 20 Cells, Corstat Inplant Handlers – 4005-10 – 10 Cells, Corstat Inplant Handlers – 4005-20 – 20 Cells, Corstat Inplant Handlers – 4005-40 – 40 Cells, Corstat Inplant Handlers – 4007-10 – 10 Cells, Corstat Inplant Handlers – 4007-20 – 20 Cells, Corstat Inplant Handlers – 4007-30 – 30 Cells, Corstat Inplant Handlers – 4007-40 – 40 Cells, Corstat Inplant Handlers – 4008-40 – 40 Cells, Corstat Inplant Handlers – 4008-80 – 80 Cells, Corstat Inplant Handlers – 4010-10 – 10 Cells, Corstat Inplant Handlers – 4010-50 – 50 Cells, Corstat Inplant Handlers – 4012-100 – 100 Cells, Corstat Inplant Handlers – 4012-50 – 50 Cells, Corstat Inplant Handlers – 4014-100 – 100 Cells, Corstat Inplant Handlers – 4014-40 – 40 Cells, Corstat Inplant Handlers – 4016-32 – 32 Cells, Corstat Inplant Handlers – 4016-80 – 80 Cells

Weight

N/A

Select a product:

Corstat Inplant Handlers – 4000-10 – 10 Cells, Corstat Inplant Handlers – 4000-20 – 20 Cells, Corstat Inplant Handlers – 4000-30 – 30 Cells, Corstat Inplant Handlers – 4000-40 – 40 Cells, Corstat Inplant Handlers – 4001-10 – 10 Cells, Corstat Inplant Handlers – 4001-20 – 20 Cells, Corstat Inplant Handlers – 4001-30 – 30 Cells, Corstat Inplant Handlers – 4001-40 – 40 Cells, Corstat Inplant Handlers – 4003-10 – 10 Cells, Corstat Inplant Handlers – 4003-20 – 20 Cells, Corstat Inplant Handlers – 4005-10 – 10 Cells, Corstat Inplant Handlers – 4005-20 – 20 Cells, Corstat Inplant Handlers – 4005-40 – 40 Cells, Corstat Inplant Handlers – 4007-10 – 10 Cells, Corstat Inplant Handlers – 4007-20 – 20 Cells, Corstat Inplant Handlers – 4007-30 – 30 Cells, Corstat Inplant Handlers – 4007-40 – 40 Cells, Corstat Inplant Handlers – 4008-40 – 40 Cells, Corstat Inplant Handlers – 4008-80 – 80 Cells, Corstat Inplant Handlers – 4010-10 – 10 Cells, Corstat Inplant Handlers – 4010-50 – 50 Cells, Corstat Inplant Handlers – 4012-100 – 100 Cells, Corstat Inplant Handlers – 4012-50 – 50 Cells, Corstat Inplant Handlers – 4014-100 – 100 Cells, Corstat Inplant Handlers – 4014-40 – 40 Cells, Corstat Inplant Handlers – 4016-32 – 32 Cells, Corstat Inplant Handlers – 4016-80 – 80 Cells

Product Dimensions

SKU / Part No.	Internal Size (mm)	Max Cell Size (mm)	No. Cells
4000-40	575 x 305 x 328	124 x 25 x 326	40
4000-30	575 x 305 x 328	167 x 25 x 326	30
4000-20	575 x 305 x 328	254 x 25 x 326	20
4000-10	575 x 305 x 328	514 x 25 x 326	10
4001-40	575 x 305 x 400	124 x 25 x 398	40
4001-30	575 x 305 x 400	167 x 25 x 398	30
4001-20	575 x 305 x 400	254 x 25 x 398	20
4001-10	575 x 305 x 400	514 x 25 x 398	10
4003-20	455 x 245 x 480	198 x 19 x 478	20
4003-10	455 x 245 x 480	402 x 19 x 478	10
4005-40	425 x 245 x 289	86 x 19 x 278	40
4005-20	425 x 245 x 289	180 x 19 x 278	20
4005-10	425 x 245 x 289	370 x 19 x 278	10
4007-40	425 x 245 x 190	90 x 19 x 188	40
4007-30	425 x 245 x 190	121 x 19 x 188	30
4007-20	425 x 245 x 190	184 x 19 x 188	20
4007-10	425 x 245 x 190	374 x 19 x 188	10
4008-80	550 x 390 x 186	49 x 43 x 184	80
4008-40	550 x 390 x 186	92 x 43 x 184	40
4010-50	332 x 274 x 128	64 x 24 x 126	50
4010-10	332 x 274 x 128	198 x 24 x 126	10
4012-100	448 x 348 x 124	42 x 32 x 122	100
4012-50	448 x 348 x 124	86 x 32 x 122	50
4014-100	378 x 368 x 66	70 x 15 x 64	100
4014-40	378 x 368 x 66	168 x 15 x 64	40
4016-80	578 x 299 x 80	110 x 16 x 78	80
4016-32	578 x 299 x 80	240 x 16 x 78	32

Technical Datasheet

Corstat Inplant Handlers: Technical Datasheet

Corstat® Brand

Corstat® provides a highly efficient, low-cost method of providing static protection for handling, transportation and storage of static sensitive devices.

Effective Protection

Corstat® anti-static conductive board coating is a well proven material for use in anti-static packaging. It has been available for over 11 years and specified by virtually all the major electronic companies in the USA and UK.

Effective Production

Boxes and containers coated with Corstat materials are easily converted on standard machinery. The results give durable packaging that is cheaper than conductive plastic or fibreboard alternatives.

Wide Product Range

Corstat® anti-static conductive packaging is used by virtually all the main electronics companies around the world for transit packs, component boxes, in-plant handlers, bin boxes for ic-tubes and many other applications.

Consistent High Quality and Appearance

Corstat® anti-static conductive packaging is consistently manufactured, within an ISO 9002 approved environment, to high specifications which are accepted worldwide, Corstat® has a shiny finish due to the over-seal varnish during manufacture.

Corstat® and Environment

Corstat® anti-static conductive packaging is biodegradable and recyclable. Their products do not contain any heavy metals, aromatics or halogenated hydrocarbons.

Contact Us

Our sales and technical team are available to support you with any questions you may have regarding our products, services and more.To contact our team, please fill in the form below or click here.

All Corstat product deliveries are 2-3 days.
