Large Conductive PCB Rack

Description

Large Conductive PCB Rack for Safe PCB Storage and Handling

The Large Conductive PCB Rack is a durable, ESD‑safe storage solution designed to protect printed circuit boards during production, transport, and handling. Manufactured from conductive polypropylene and supported by robust aluminium rails, this rack provides a reliable Faraday Cage environment to safeguard static‑sensitive electronic components.

Engineered to fit seamlessly into a standard ESD Euro container, the rack offers exceptional versatility with adjustable frames that can be used vertically, horizontally, or flat. Optional centre dividers allow you to customise the layout to suit different PCB sizes and workflows.

Key Features of Large Conductive PCB Rack:

• ESD‑safe construction using conductive polypropylene for effective protection against electrostatic discharge.
• Fully adjustable frame made from two conductive end walls with optional central divider.
• Multiple positioning options — use vertically, horizontally, flat, or stack when equal in size.
• Strong and durable design offering excellent mechanical protection during storage and transport.
• Interchangeable aluminium rails available in several lengths for flexible configuration.
• Precision slot sizing: 2.5mm wide, 3.0mm deep, 15.3mm pitch.
• RoHS and REACH compliant, meeting IEC‑61340‑5‑1 ESD standards.
• Compatible with Euro containers for easy integration into existing workflows.
• CE approved.

Choose from a Range of Components to Build Your Ideal PCB Storage System:

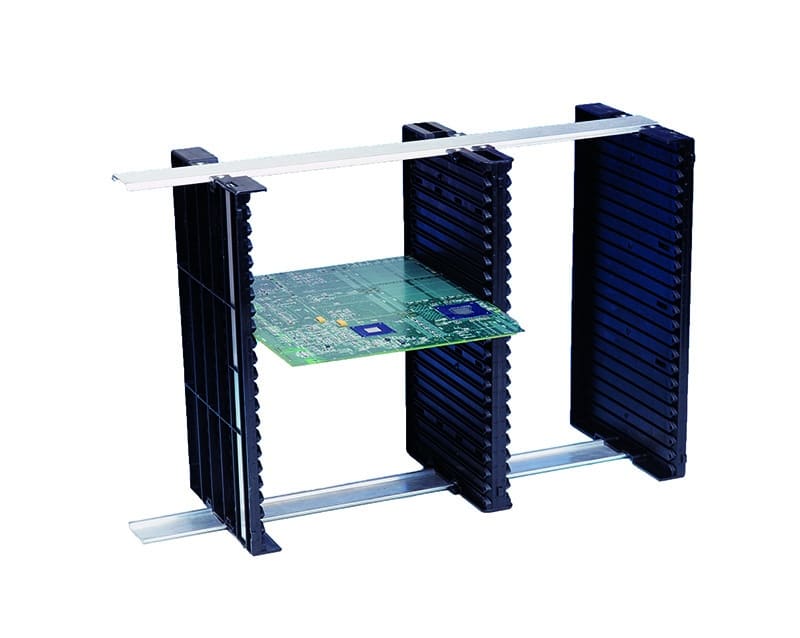

• EL41 — Conductive end wall (350 × 190 × 30mm)
• EL42 — Conductive centre frame (optional) (350 × 190 × 35mm)
• ELF1 — Pair of aluminium rails (53 × 152mm)
• ELF2 — Pair of aluminium rails (53 × 232mm)
• ELF6 — Pair of aluminium rails (53 × 552mm)

All rails are fully interchangeable, allowing you to create a custom conductive PCB rack tailored to your application.

Why Conductive Polypropylene?

Conductive polypropylene is a high‑performance material ideal for ESD‑sensitive environments. It ensures:

• Reliable static dissipation
• Long‑lasting durability
• Safe storage and transport of PCBs and electronic assemblies

This makes it the preferred choice for electronics manufacturing, assembly lines, repair centres, and ESD‑controlled areas.

Ideal For:

• PCB manufacturing and assembly
• Electronics repair and service centres
• ESD‑protected areas (EPAs)
• Safe transport of static‑sensitive components
• Organised storage of multiple PCB sizes

	IEC-61340-5-1 / EN-61340-5-1 compliant		RoHS compliant
	CE approved		REACH compliant

Explore More PCB Storage Solutions

This rack is also available as a Small Conductive PCB Rack for compact PCB handling. Browse the full range of ESD‑safe PCB racks to find the right configuration for your workspace.
