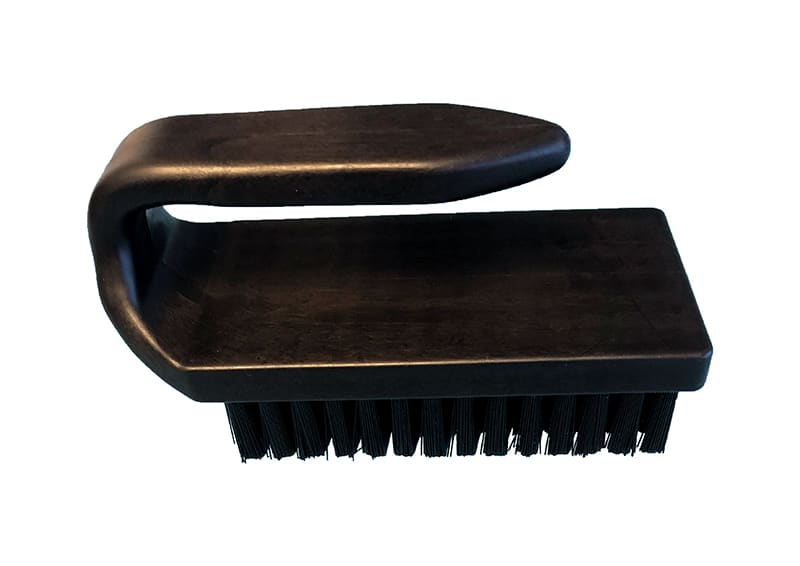

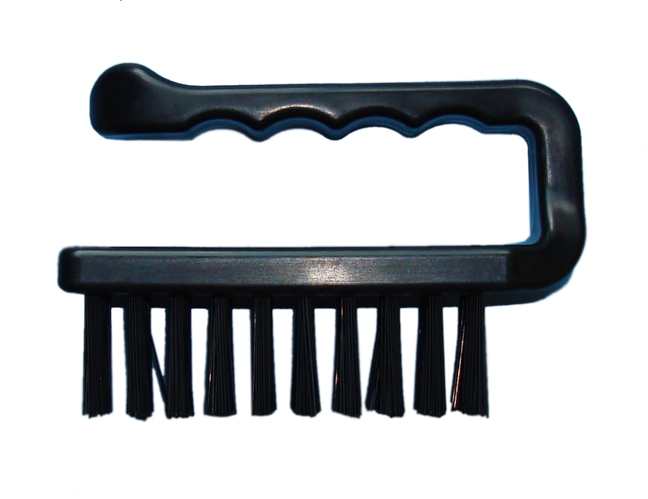

ESD Nail Brush

An easy-to-grip, ESD nail brush available in a standard or large size. Nail brush style gives a grip-style brushing action for the safe cleaning of static sensitive components. The brush has a conductive polypropylene handle and dissipative fibre bristles.

Special Offer

£4.50£5.20 excl. VAT

Description

An ESD nail brush made with dissipative fibre bristles and a strong, conductive polypropylene handle. The KB1 ESD Nail Brush is designed in the form of a nail brush giving a grip-style brushing action. This brush allows the safe cleaning of ESD sensitive assemblies without generating any harmful static charges. Existing charges are reduced more effectively if operators are grounded. Standard and large size nail brushes are available to purchase.

Nail Brush Sizes:

KB1 (Standard)- Brush length: 90mm; Brush width: 40mm; Bristle size: 30 x 65mm; Bristle length: 20mm

KB1L (Large) – Brush length: 120mm; Brush width: 55mm; Handle length: 90mm; Bristle height: 25mm

Product Features:

  • 50 holes in 5 lines (standard size)
  • Strong conductive polypropylene handle
  • Highly conductive PA bristles
  • Ensures no harmful charges build up when brushing
  • Safe for use on static sensitive components and assemblies
  • Uses corona discharge to dissipate charges
  • Nail brush style
  • Grip style brushing action
  • Important tool for any static controlled workstation
  • Black brush handle and bristles
  • Standard and large brush size available

Application:

  • For cleaning delicate components (PC boards and parts, etc.), integrated circuits and workstations surfaces.
  • For both abrasion and residue removal.

Specifications:

  • Polypropylene: 40%, Polyamide: 45%, Carbon Fibre: 15%
  • Conductive handle resistance: 10^(4) Ω ~ 10^(6) Ω
  • Dissipative fibre bristles resistance: 1 x 10^(6) – 1 x 10^(8) Ω
  • Standard compliance: ANSI/ESD S20.20*1999 requirements, EN-61340-5-1 / IEC-61340-5-1

Standards and Regulations Compliance:

ESD safe label - Bondline IEC-61340-5-1 / EN-61340-5-1 compliant bondline RoHS compliant
ESD safe label - Bondline Meets ANSI/ESD S20.20*1999 requirements bondline REACH compliant
CE Icon WEB-min-alt CE approved



View our complete ESD brush range with a variety of brush/bristle sizes to suit your application.

Additional information

Weight N/A
Dimensions N/A
Select a product:

KB1L – Large ESD Brush – Killstat Nail Brush – 120 x 55mm, KB1 – ESD Brush – Killstat Nail Brush – 90 x 40mm

Technical Datasheet

KB1 and KB1L: Technical Datasheet

Contact Us

Our sales and technical team are available to support you with any questions you may have regarding our products, services and more.

To contact our team, please fill in the form below or click here.

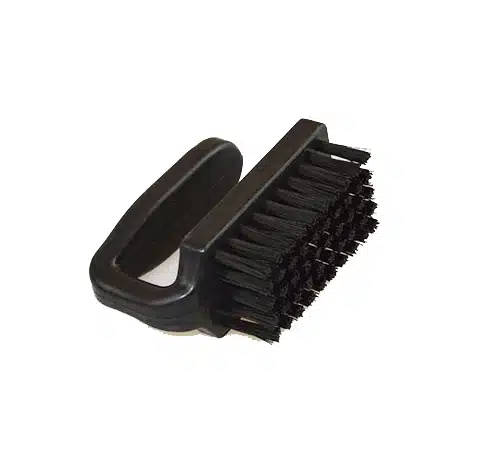

Products related to this one…
