NEW Static Locator

NEW Static Locator developed to detect the electrostatic voltage on the surface of electrostatic objects. Delicate appearance and comfortable handling. Double LED precise positioning and accurate measuring distance. Wide measuring range and high measuring accuracy. User-friendly operating button and easy to use. High-definition, full-scale LCD data display. Full test/calibration certificate and user manual supplied.

£725.00 excl. VAT

Description

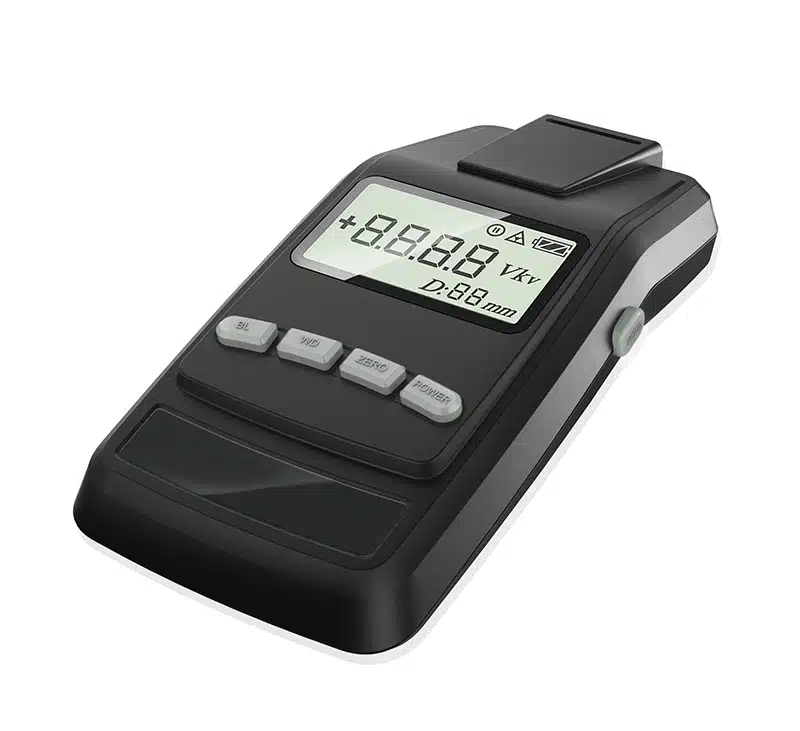

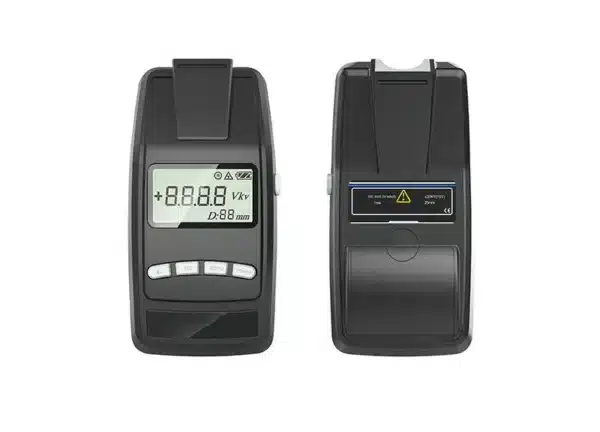

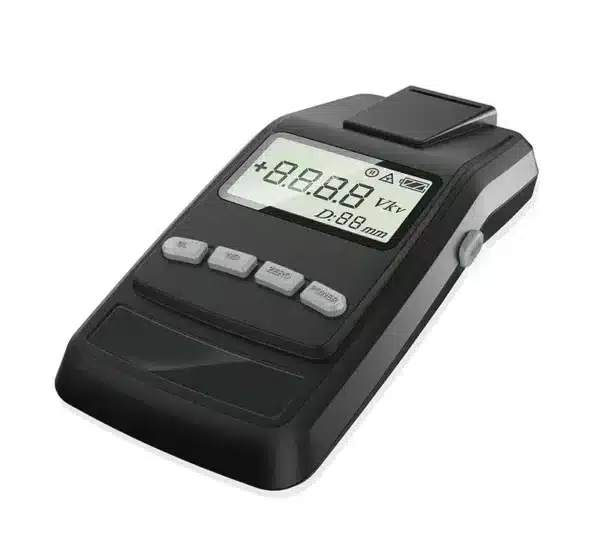

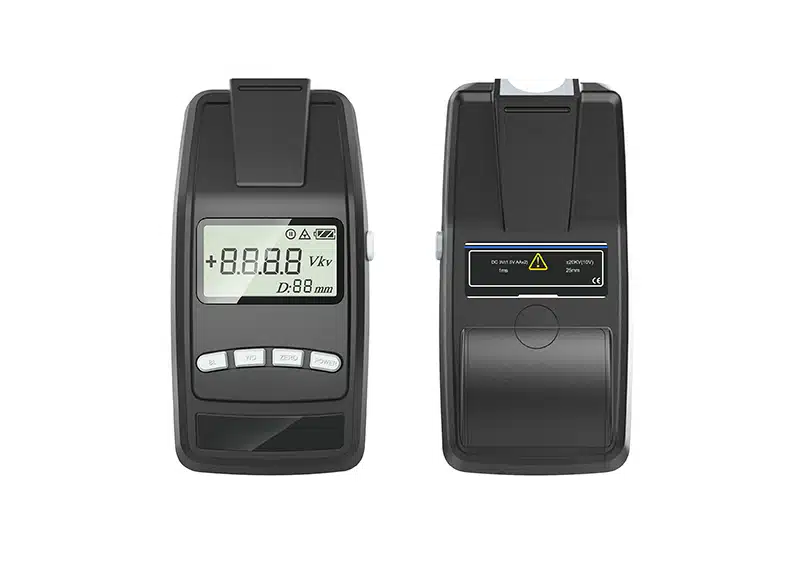

The SL1302 Static Locator is a test instrument developed to detect the electrostatic voltage on the surface of electrostatic objects. It uses non-contact measurement technology to influence the electrostatic field of the surface of the object. Minimised to ensure the accuracy of measurement, the static locator can be widely used in electronics, plastics, chemicals, printing, optoelectronics and other industries. All test instruments are manufactured to the very highest quality allowing qualification to council directives 89/336/EEC.

Application Field:

  • Electronics industry
  • Plastics industry
  • Chemicals industry
  • Printing industry
  • Optoelectronics industry and etc.

Static Locator Features:

  • Delicate appearance and comfortable handling
  • Double LED precise positioning and accurate measuring distance
  • Wide measuring range and high measuring accuracy
  • User-friendly operating button and easy to use
  • High-definition, full-scale LCD data display
  • Can detect static electricity on the surface on any object
  • Full test/calibration certificate and user manual supplied

Specification:

  • Detection range (KV): 0.01-±20.00
  • Exterior colour: Black shell, grey key
  • Detection accuracy: ±10%
  • Detection distance: 25mm±1.0mm
  • Input voltage: DC3V(2*AAA)
  • Working current: <100mA
  • Power off: Press and hold the power button for 3 seconds or 180 seconds to automatically power off
  • Working temperature: -18°C→+50°C
  • Working humidity: 0-85%RH
  • Dimensions: 141 x 71 x 38mm (LxWxH)
  • Net weight: 146g (including: 2 batteries)
  • Gross weight: 359g±20g (including: 4 batteries and packaging accessories)

Standards & Regulations:

ESD safe label - Bondline IEC-61340-5-1 compliant CE Icon WEB-min-alt CE certified
bondline RoHS compliant bondline REACH compliant
UKCA Compliance Icon WEB-min UK Conformity Assessed

View our full range of ESD test instruments

Additional information

Select a product:

SL1302 – Static Locator

Technical Datasheet

Static Locator: Technical Datasheet

Instruction Manual

Static Locator: Instruction Manual
