Description

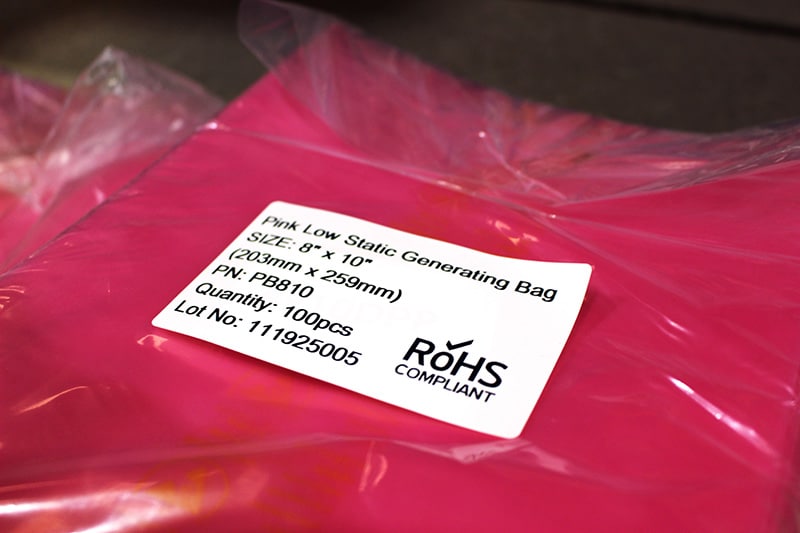

Pink Antistatic Bags provide safe transportation and storage of non-static sensitive items (e.g. nuts, bolts, screws, etc.) into an Electrostatic Protected Area (EPA), without the risk of electrostatic discharge.
Pink anti static bags are made with a flexible, soft-textured polyethylene with an anti-static coating. These bags have the ability to dissipate static charge to ground preventing a build-up of static charge on the packaging or component. The bag’s anti-static coating prevents the bag from charging if rubbed against other materials. Pink anti static bags can be used to package non-static sensitive support or processing materials (like nuts, bolts, washers or screws) that will be used in close proximity to static sensitive electronic components or devices. Please note, these bags have no shielding ability. A static field or static discharge occurring outside the bag can penetrate the bag and can damage electronic components inside. If you require bags with static shielding properties, please see our Static Shielding Bags.
Pink antistatic bags are 60 microns thick and are supplied in packs of 100 pieces. The bags are available in open-top or loc-top resealable in a wide range of sizes. Open top bags are great for easy access of components and can be temporarily closed with an ESD Warning Label. Loc-top resealable bags enable the contents to be quickly and easily sealed via the grip. Option to customise the size, thickness, printing and packaging on request.
Key Features of Pink Antistatic Bags:
- Reliable packaging. All bags are 60 microns thick and are supplied in packs of 100pcs.
- Quality material. Made with a flexible, soft-textured polyethylene with an anti-static coating.
- Will not charge if rubbed against other materials.
- Suitable for packing non-static sensitive items (incl. nuts, bolts, studs, etc.).
- Wide range of sizes available to order.
- Packaging is printed with yellow ESD symbol as standard.
- Open top and loc-top resealable options.
- Loc-top resealable bags are supplied with write-on panels.
- Allows the static charge to dissipate, preventing static charge build up.
- Customisable. Bespoke sizes, thicknesses, printing and packaging solutions can be made on request.
- Bondline is a leading UK supplier and vast stockist of ESD control equipment.
Pink Antistatic Bags Specifications:
- Surface Resistivity / Resistance: >10^(6) <10^(11) ohms/square >10^(6) <10^(11) ohms/square
- Static Decay: < 2 seconds IEC61340-5-2-3:2016
- Charge Retention: <100 volts IEC61340-5-2-3:2016
- Seam Strength: Pass MIL-PRF-81705
- Temperature: 110°C – 150°C
- Time: 0.5 – 3.5 seconds
- Thickness: 0.06mm +/- 10%
- Outgassing: Pass ASTM E595
- Non-Corrosive: Pass FTMS 101 MTH 3005
- Shelf-Life: ≥3 years
ESD Standards & Regulations Compliance:
ESD STM11.31-2006 | EIA541 | ||
MIL81705 | MIL-STD-3010 4046 | ||
IEC61340-5-1 | REACH compliant | ||
RoHS compliant | European Conformity |
Additional Information
For a large volume quantity or a bespoke quotation, please contact us by calling +44 (0)1793 511000 or emailing sales@bondline.co.uk.
For further help and guidance on choosing the right static safe bag, please refer to our Bag Selection Guide.
Browse our full range of static protective bags.
