Description

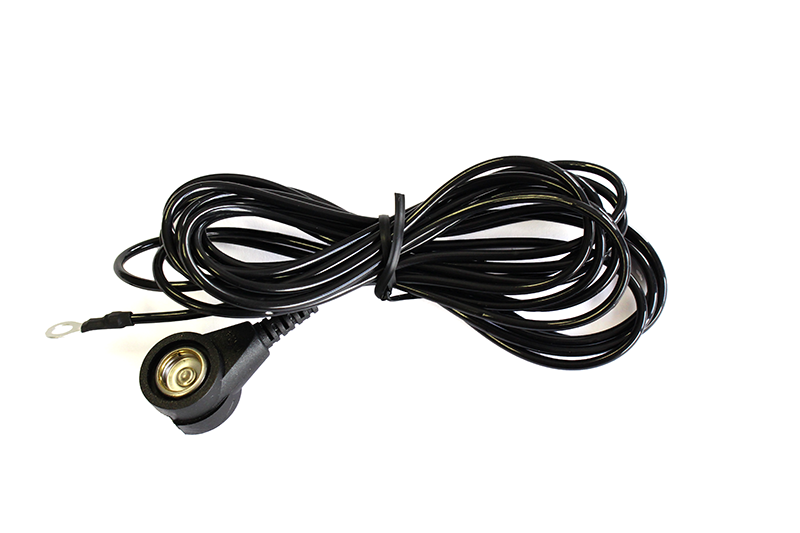

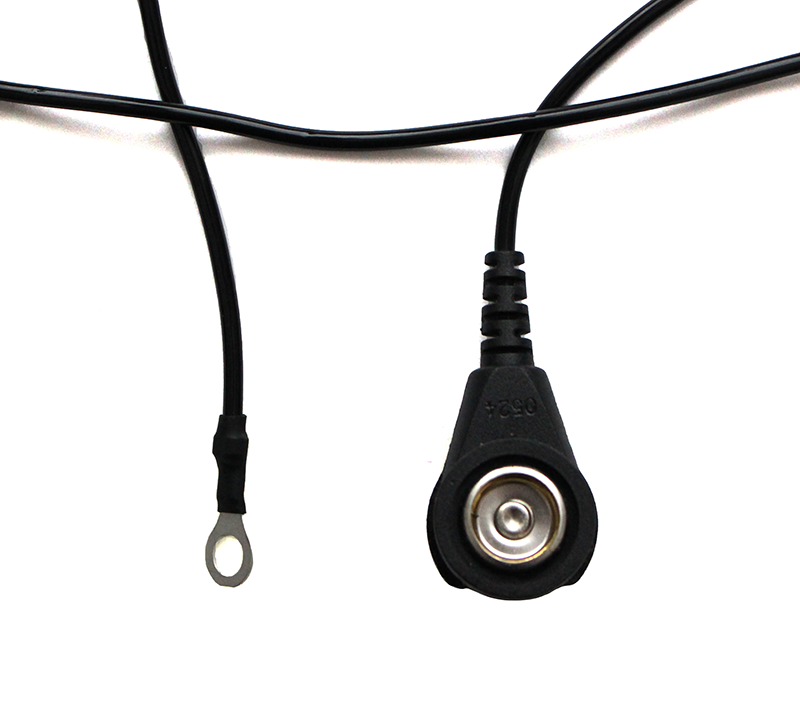

High Profile Common Point Ground Cord (10ft) with M5 eyelet, designed for workstation grounding. The KSHPCGPM510 High Profile Common Point Ground Cord grounds snaps to an ESD bench mat and accepts two ESD wrist straps. The KSHPCGPM510 is equipped with 1 x 10mm female snap, 2 x grounding points via 4mm banana jack sockets, 1 x M5 eyelet connection and 1 x 1 meg-ohm resistor.
Specification of High Profile Common Point Ground Cord:
- 1 x 10mm stud snap on unit can attach to mat surface.
- 2 x grounding points via 4mm banana jack sockets.
- 1 x M5 eyelet connection for easy attachment to ESD ground.
- For secure ground connections for wrist straps.
- Grounds up to two operators at the same time.
- Cord length: 10ft.
- Long life: Made with durable materials for long life.
- Connector type: Two banana jacks.
- Material: PU/PVC.
- Resistor: 1 Meg-Ohm.
- Colour: Black.
ESD Standards & Regulations Compliance:
 |
IEC 61340-5-1 compliant |  |
RoHS compliant |
 |
CE approved |  |
REACH compliant |
For more information about this product, please get in touch on 01793 511000 or sales@bondline.co.uk.
View our full range of Earth Bonding Brackets.
