Description

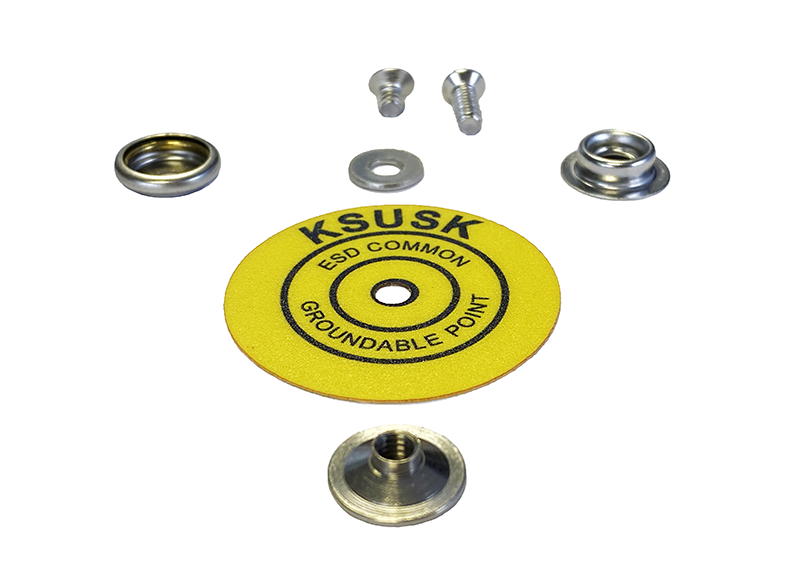

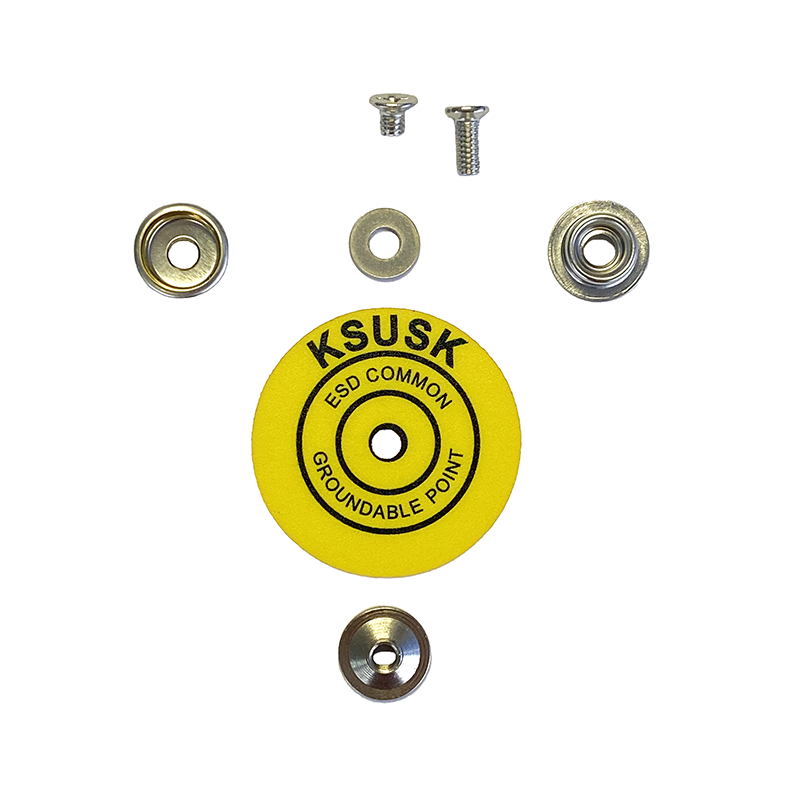

The Universal Snap Mounting Kit includes a 10mm stud, 10mm socket, threaded backing washer, conical nut, long screw, short screw, and ESD common point ground label. Everything needed to field install a stud or socket on all soft materials up to 3/8″ thick. Screws are 6-32 Flat Head machine screws; one 1/4″ long and one 3/8″ long. Simply punch a hole through the mat and screw on the socket or stud, whichever is preferred, using one or the other screw. All that is needed is a screwdriver.
Universal Snap Mounting Kit Materials:
- Screws are made of stainless steel.
- Washer is made of stainless steel.
- Socket is made of brass with nickel plating.
- Conical nut is made of brass with nickel plating.
- Common point ground label is made of polycarbonate.
ESD Standards & Regulations Compliance:
 | IEC 61340-5-1 compliant |  | RoHS compliant |
 | CE approved |  | REACH compliant |
For more information about this product, please get in touch on 01793 511000 or sales@bondline.co.uk.
View our full range of Earth Bonding Brackets.
