Description

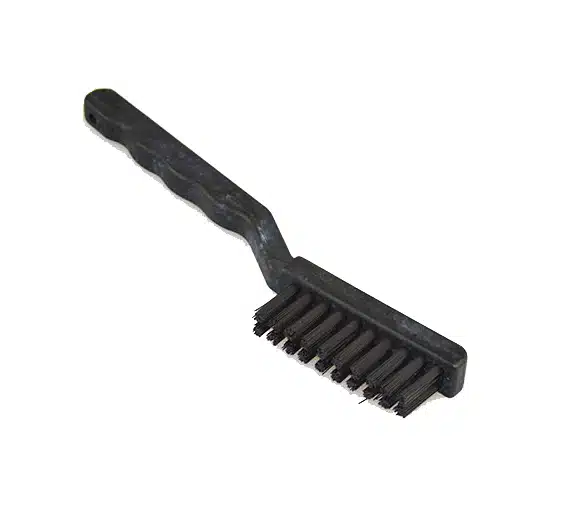

The KB5103 Toothbrush Style ESD Brush 175mm is developed for the safe cleaning of static sensitive components without generating any harmful static charges. The brush has a bristle length of 18mm and row length of 60mm. It features 20 holes in 2 lines and does not produce dust particles when in use. The bristles are made with a conductive nylon material and the handle is made with a strong conductive PP material. The KB5103 Toothbrush Style ESD Brush 175mm features an easy grip handle and a long brush head for PCB cleaning application. See our smaller toothbrush style ESD brush available from Bondline.
If you have any queries regarding ESD brushes, then please do not hesitate to contact one of our experienced sales team on +44 (0)1793 511000 or send us an email to sales@bondline.co.uk.
Product Features:
- 20 holes in 2 lines
- Strong conductive polypropylene handle
- Highly conductive nylon bristles
- Ensures no harmful charges build up when brushing
- Safe for use on static sensitive components and assemblies
- Uses corona discharge to dissipate charges
- Round, toothbrush style
- Easy-to-grip, ergonomic handle for comfort during prolonged use
- Important tool for any static controlled workstation
- Black brush handle and bristles
Application:
- For cleaning delicate components (PC boards and parts, etc.), integrated circuits and workstations surfaces.
- For both abrasion and residue removal.
Specifications:
- Total brush length: 175mm
- Bristle length: 18mm
- Length of row: 60mm
- Conductive handle resistance: 10^(4) Ω ~ 10^(6) Ω
- Dissipative fibre bristles resistance: 1 x 10^(8) – 1 x 10^(10) Ω
- Standard compliance: ANSI/ESD S20.20*1999 requirements, EN-61340-5-1 / IEC-61340-5-1
Standards and Regulations Compliance:
 | IEC-61340-5-1 / EN-61340-5-1 compliant |  | RoHS compliant |
| Meets ANSI/ESD S20.20*1999 requirements |  | REACH compliant |
 | CE approved |
View our complete ESD brush range with a variety of brush/bristle sizes to suit your application.
