Description

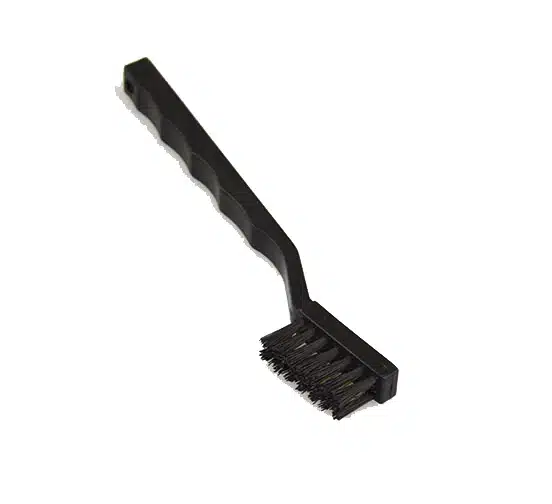

The KB5102 Small Toothbrush Style ESD Brush 175mm is developed for the safe cleaning of static sensitive components without generating any harmful static charges. The brush has a bristle length of 16mm and row length of 35mm. It features 20 holes in 3 lines and does not produce dust particles when in use. The bristles are made with a conductive nylon material and the handle is made with a strong conductive PP material. The KB5102 Small Toothbrush Style ESD Brush 175mm features an easy grip handle and a long brush head for PCB cleaning application.
If you have any queries regarding ESD brushes, then please do not hesitate to contact one of our experienced sales team on +44 (0)1793 511000 or send us an email to sales@bondline.co.uk.
Product Features:
- 20 holes in 3 lines
- Strong conductive polypropylene handle
- Highly conductive nylon bristles
- Ensures no harmful charges build up when brushing
- Safe for use on static sensitive components and assemblies
- Uses corona discharge to dissipate charges
- Round, toothbrush style
- Easy-to-grip, ergonomic handle for comfort during prolonged use
- Important tool for any static controlled workstation
- Black brush handle and bristles
Application:
- For cleaning delicate components (PC boards and parts, etc.), integrated circuits and workstations surfaces.
- For both abrasion and residue removal.
Specifications:
- Total brush length: 175mm
- Bristle length: 16mm
- Length of row: 35mm
- Conductive handle resistance: 10^(4) Ω ~ 10^(6) Ω
- Dissipative fibre bristles resistance: 1 x 10^(8) – 1 x 10^(10) Ω
- Standard compliance: ANSI/ESD S20.20*1999 requirements, EN-61340-5-1 / IEC-61340-5-1
Standards and Regulations Compliance:
 | IEC-61340-5-1 / EN-61340-5-1 compliant |  | RoHS compliant |
| Meets ANSI/ESD S20.20*1999 requirements |  | REACH compliant |
 | CE approved |
View our complete ESD brush range with a variety of brush/bristle sizes to suit your application.
