The Essential Guide to ESD Workbenches

Electrostatic discharge (ESD) is one of the most common, and costly, threats to static-sensitive electronic components. Whether you’re assembling circuit boards, repairing devices, or running a full-scale production line, an ESD‑safe environment isn’t optional. It’s essential. At the heart of every effective ESD Protected Area (EPA) are ESD workbenches: a controlled, grounded workstation designed to keep electronic components safe and operators productive.

This guide breaks down everything you need to know about ESD workbenches, from how they work to how to choose the right one for your facility.

What Is an ESD Workbench?

An ESD workbench is a workstation specifically designed to prevent electrostatic discharge from damaging static-sensitive electronic components. Unlike a standard bench, an ESD workbench incorporates grounded materials, dissipative surfaces, and ESD‑safe accessories to create a controlled path for static electricity to safely discharge to earth.

In short: it’s the operator’s first line of defence against ESD events.

Why ESD Control Matters

Static electricity is invisible, unpredictable, and surprisingly destructive. A discharge as low as 30 volts, far below the threshold a human can feel, can damage microelectronics.

The risks include:

• Immediate component failure
• Latent defects that pass testing but fail later in the field
• Reduced product lifespan
• Costly rework, returns, and warranty claims

Industry standards such as IEC 61340‑5‑1 and ANSI/ESD S20.20 outline strict requirements for controlling static. An ESD workbench is a core part of meeting those standards.

Key Components of an ESD Workbench

A high‑quality ESD workbench is more than a table with a mat on top. It’s a system of interconnected components working together to create a safe, grounded environment.

1. ESD Workbench Matting

• Made from dissipative materials
• Provides a controlled path to ground
• Available in 2‑layer or 3‑layer constructions

2. Earth Bonding Points & Cords

• Connects the mat, wrist strap, and other equipment to earth
• Ensures a consistent, reliable grounding path
• Often mounted directly to the bench for easy access

3. ESD Wrist Straps & Monitors

• Keep the operator grounded at all times
• Continuous monitors provide real‑time assurance
• Essential for preventing charge build‑up on personnel

4. ESD Chairs

• Made from conductive or dissipative materials
• Prevent charge accumulation when seated
• Often overlooked but critical for full protection

5. Shelving, Drawers & Accessories

• Should be ESD‑safe or positioned to avoid charge build‑up
• Metal shelving can be grounded
• Plastic accessories must be ESD‑approved

6. Lighting & Tooling

• Overhead lighting should avoid generating static
• Tools (screwdrivers, cutters, containers) should be ESD‑safe

How an ESD Workbench Works: The Grounding Path

Every component of the bench – mat, operator, tools – must be connected to a single, reliable grounding point. This creates a controlled path to ground, allowing static charges to dissipate safely.

Common grounding mistakes include:

• Using multiple grounding points
• Connecting to unverified earth sources
• Allowing loose or damaged cords
• Forgetting to ground metal accessories

A properly configured bench eliminates these risks.

Setting Up an ESD Workbench Correctly

Well‑designed ESD workbenches are only effective if they’re set up properly. Consider the following steps:

1. Position the Bench Within the EPA

• Ensure clear zoning and signage
• Keep non‑ESD materials outside the protected area

2. Install and Ground the Mat

• Attach the mat to a dedicated bonding point
• Use approved grounding cords
• Test continuity after installation

3. Connect the Wrist Strap System

• Ensure operators can easily plug in
• Use continuous monitors for high‑risk environments

4. Integrate Tools and Equipment

• Ground metal shelving
• Use ESD‑safe containers and tools
• Keep cables tidy to avoid snags and static build‑up

5. Optimise for Workflow

• Arrange equipment logically
• Keep high‑use tools within reach
• Maintain a clutter‑free surface

How to Assemble an ESD Workbench

With the help of Bondline, we can help you assemble an ESD workbench in no time. Take a look at this quick timelapse video where our colleague Ed Shone installs an ESD KS workbench from start to finish.

Maintenance & Testing of ESD Workbenches

ESD control is not a “set it and forget it” process. Regular checks keep your EPA compliant and effective.

Routine tasks include:

• Testing wrist straps daily
• Checking mat surface resistance regularly
• Inspecting cords for wear
• Cleaning mats with approved ESD-safe cleaners
• Replacing equipment when readings drift out of spec

A well‑maintained bench performs better and lasts longer.

How to Choose the Right ESD Workbench

Not all workbenches are created equal. When selecting one, consider:

• Size & Workspace Needs: Will operators need space for tools, monitors, or dual‑operator setups?
• Load Capacity: Heavy equipment requires reinforced frames.
• Modularity: Adjustable shelves, drawers, and lighting improve long‑term usability.
• Compliance: Ensure the bench meets IEC and/or ANSI/ESD standards.
• Customisation: Some environments benefit from bespoke layouts or integrated power rails.

A good ESD bench should support your workflow, not restrict it.

ESD Workbenches From Bondline

We offer a wide range of ESD workbenches, including:

ESD KS Workbenches – A high-quality, fully ESD workbench with 4 types to choose from. Standard and essential range are in-stock to buy online and ready to be dispatched. Classic and supreme range are customisable upon request.

ESD KSHB Workbenches – A cost-effective ESD workbench with one shelf and pair of uprights. Suitable for most industrial tasks and environments.

ESD KSTPB Workbenches – A solid, low-cost, industrial ESD workbench suitable for various tasks, industries, and environments.

Cantilever ESD Workbenches – An ergonomic ESD workbench designed to provide maximum legroom capacity. These workbenches are available for 5-day express delivery on specific configurations only.

Four Leg ESD Workbenches – A sturdy and durable ESD workbench featuring a leg in each corner to provide firm support. Comes with wrist strap sockets for attaching a wrist strap. These workbenches are available for 5-day express delivery on specific configurations only.

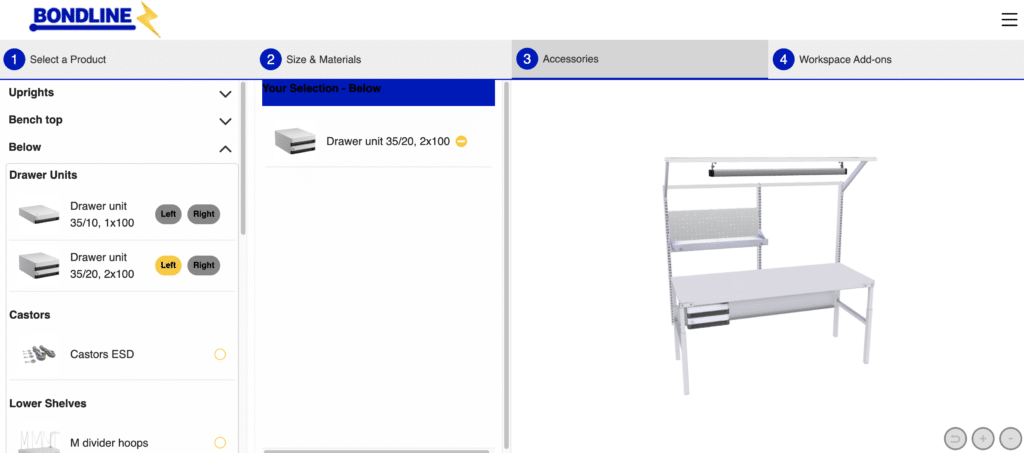

Check out our workbench configurator tool where you can customise your own ESD workbench from scratch.

Common Mistakes to Avoid

Even experienced teams can slip into bad habits. Watch out for:

• Using non‑ESD plastics or packaging
• Wearing non‑ESD clothing or footwear
• Allowing clutter to accumulate
• Forgetting to test equipment
• Mixing grounded and ungrounded tools

Small oversights can lead to big failures.

Best Practices for Daily Use

To keep your EPA running smoothly:

• Ground yourself before touching electronic components
• Keep the bench clean and organised
• Store items in ESD‑safe containers or packaging
• Follow EPA entry procedures
• Train new staff thoroughly
• Encourage a culture of ESD awareness

Consistency is the key to long‑term protection.

Bondline: Your Trusted Partner in ESD Control

With decades of experience in ESD protection, Bondline supplies high‑quality ESD workbenches, mats, grounding equipment, and accessories trusted across manufacturing, aerospace, defence, and electronics repair.

Why Choose Bondline?

• Fully compliant, high‑performance materials
• Custom bench builds available
• Expert guidance from our technical team
• Comprehensive range of ESD workbench accessories
• Reliable UK manufacturing and supply
• 40 years of experience in ESD

Whether you’re upgrading a single workstation or designing a full EPA, Bondline provides the expertise and equipment to keep your environment safe, compliant, and efficient.
