Earthing Point (1 x 10mm stud, NO RESISTOR)

UK manufactured Single Earthing Point with 1 x 10mm male stud and no resistor. Designed specifically for use on racks, cabinets, panels, and trolleys etc. Used for the grounding personnel, typically for those who need to be mobile or on cabinets for use by Field Service Engineers. Small dimensions, 25mm x 35mm allows it to be used where space is limited. Connects to known good Earth via solder tag.

Special Offer

Original price was: £3.47.Current price is: £2.85. excl. VAT

Description

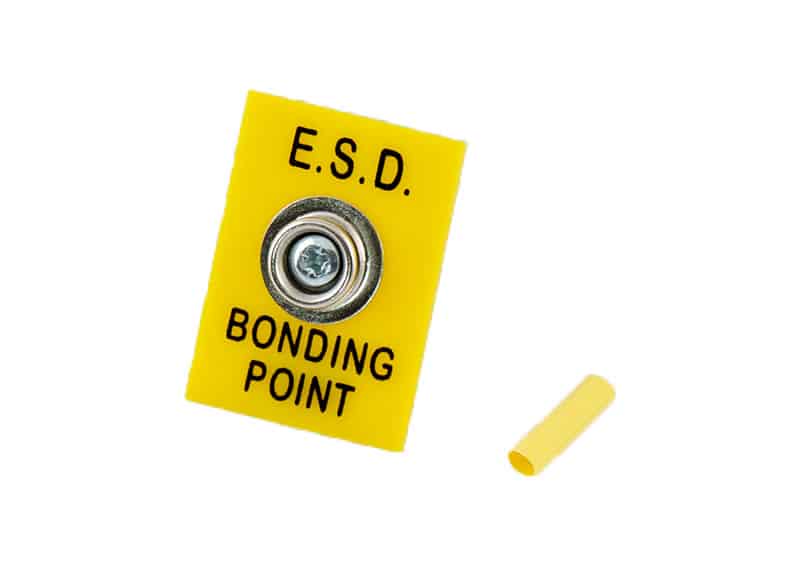

UK manufactured ESD Earthing Point supplied with a single 10mm male stud and NO RESISTOR.

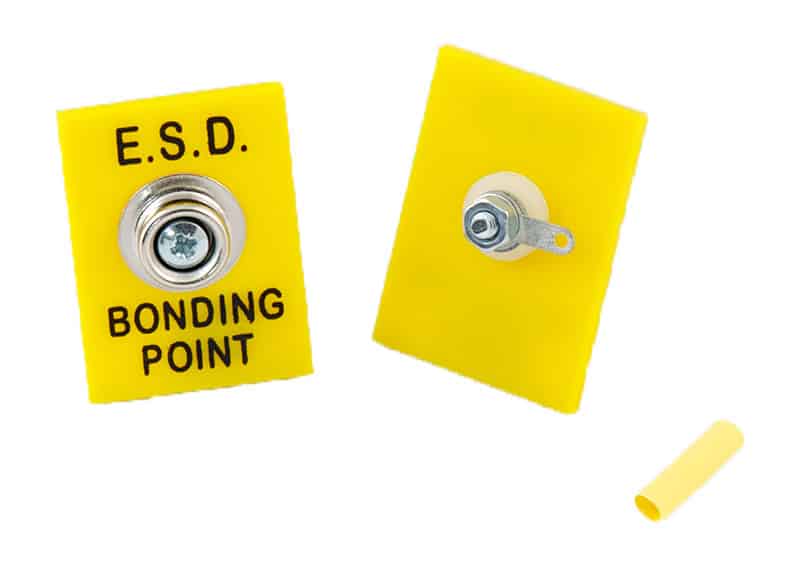

This Earthing point unit distinguishes between Earth facility and Earth bonding point. It provides a grounded fixture to which equipment in an Electrostatic Protected Area may be linked or bonded via a grounding cord. This Earthing point is supplied with a single 10mm male stud for easy connection and printed with black text on a bold yellow background for high visibility. The text clearly states “E.S.D. BONDING POINT”.

This Single Earth Bond Point is made from a robust, impact resistant ABS (Acrylonitrile Butadiene Styrene) material, ensuring durability, reliability and longevity. The ESD Bonding Point is compact in size, measuring 25mm x 35mm, allowing it to be used where space is limited.

An Earth facility (EF) usually distributes the electrical mains Earth or a dedicated ESD Earth, (protective Earth) within an EPA. An Earth bonding point (EBP or common ground point) ties together several elements of an EPA such as a bench surface, floor mat or wrist strap. In this manner, all are kept at the same electrical potential. In an EPA there may be several Earth bonding points (EBP) but there must be only one Earth facility (EF).

Key Features of Earthing Point:

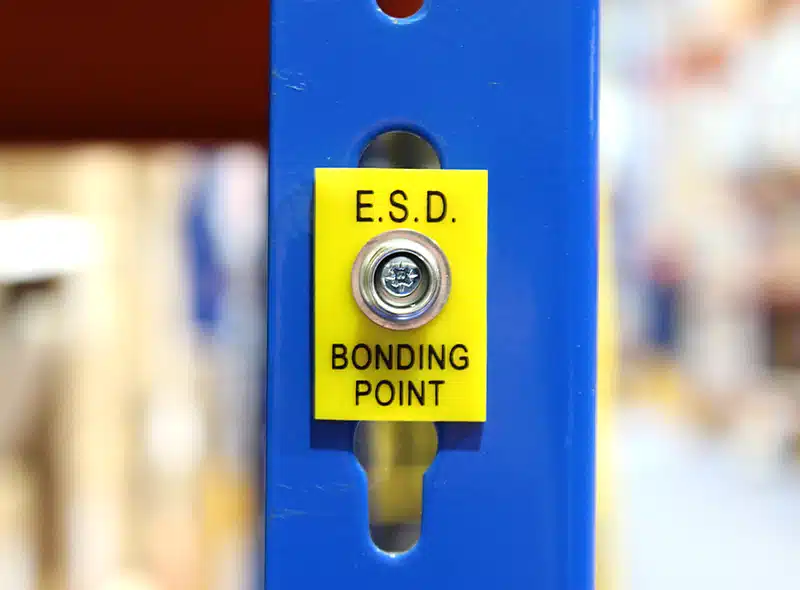

  • Designed specifically for use on racks, cabinets, panels, and trolleys, etc.
  • Used for the grounding personnel, typically for those who need to be mobile or on cabinets for use by Field Service Engineers
  • Compact in size, measuring 25mm x 35mm, allowing it to be used where space is limited
  • Practical choice for a range of setups
  • Ideal for ensuring safety and compliance in areas where ESD needs to be controlled

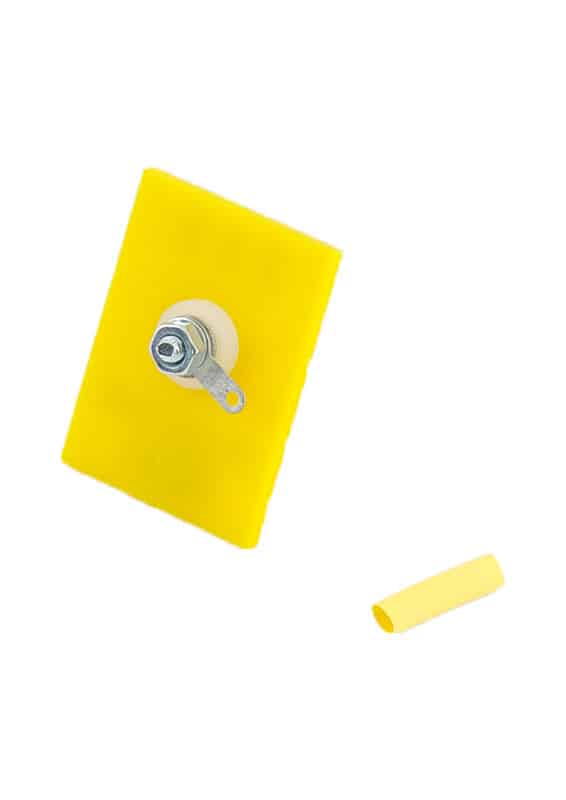

  • Connects to known good Earth via solder tag
  • ESDP has 1 x 10mm male stud and no resistor
  • Made from impact resistant ABS (Acrylonitrile Butadiene Styrene) for longevity
  • Text printed in black stating “E.S.D. Bonding Point”
  • To be used with our range of ESD grounding cords
  • Yellow coloured background to visually stand out
  • Compliant according to the IEC 61340-5-1 International Standard
  • RoHS and REACH compliant
  • CE approved
Made in the UK logo UK Manufactured

ESD Standards & Regulations Compliance:

ESD safe label - Bondline IEC-61340-5-1 CE Icon WEB-min-alt CE approved
bondline RoHS compliant bondline REACH compliant

We supply a vast UK and European Earth bonding plug and point range to fit all requirements, each enhancing safety in ESD applications by providing a secure Earth grounding point for the handling of electrostatic sensitive devices and equipment.

See our full range of Earth Bonding Points.

Additional information

Weight N/A
Select a product:

ESDBP – With 10mm Stud – No Resistor

Technical Datasheet

Earthing Point – Technical Datasheet
