Interlocking Industrial Floor Tiles

Used by hundreds of businesses worldwide, the non-ESD Interlocking Industrial Floor Tile is an excellent choice for industrial and heavy-duty applications. Interlocking Industrial Floor Tiles can simply be installed directly over an existing floor without adhesives, damp-proof membranes or screed. Tiles are 100% recyclable and have an expected lifespan of 20+ years. Suitable for trucks, HGVs and heavy-duty applications. Improves safety with an R10 slip rating and Bfl-S1 fire rating. Made in Britain.

Get a free, no-obligation quote from our experts today.

£9,999.00 excl. VAT

Description

Loose-lay, NON-ESD Industrial Interlocking Floor Tiles for industrial applications.

Interlocking Industrial Floor Tiles are available in two interlocking dovetail joint designs, T-joint as standard. Our 7mm tiles are a popular solution for most applications, including warehouses, garages and factories. The tiles easily withstand repetitive use by forklifts, pallet trucks, heavy foot traffic, aisle pickers and pump trucks. They can improve workplace safety with an R10 slip rating and Bfl-S1 fire rating. The tiles are available in a variety of colours including light grey, dark grey, graphite, black, dark blue, yellow, green and red as standard. Raised disk tiles are only available in black, dark blue and graphite. These colours can be mixed to create walkways and colour-coded zones. The tiles have a good resistance to most commonly used chemicals. Available in smooth or raised disk. Used by hundreds of businesses worldwide, the Interlocking Industrial Floor Tile is an excellent choice for industrial applications. ESD version available.

Easy to Install. Simple to Repair if You Ever Need to.

Interlocking Industrial Floor Tiles are protective subfloors that are both cost-effective and hassle-free.

With Interlocking Industrial Floor Tiles, repair costs of damaged and worn concrete are eliminated for good. The tiles are easy to install. They can be simply installed directly over an existing floor without adhesives, damp-proof membranes or screed; hassle-free! Tile installation can be completed by our professional installation team, or they can be installed by yourself.

Unlike other floor coverings, our Interlocking Industrial Floor Tiles are simple to repair and extend. The tiles can be easily lifted and replaced by yourself. If your business is scaling or changing, you can adapt the floor layout to suit.

Perfect for Businesses Who Cannot Afford to Stop.

Interlocking Industrial Floor Tiles can be fitted in sections, allowing you to continue operation during installation. The tiles are ready to use immediately, without the curing or drying times associated with resin, screed or paint.

Recyclable and Long-Lasting.

Our long-lasting products are designed to help you reduce costs and environmental impact. Once the tiles reach the end of their useful 20+ year lifespan, they can be recycled.

Guaranteed Quality.

Made in the UK logo

Interlocking Industrial Floor Tiles are proudly made in Britain by our supplier. Each and every floor tile is manufactured to the highest quality standards and every element of the product composition is strictly controlled.

Key Features:

  • NON-ESD
  • Tiles are 7mm thick
  • Suitable for trucks, HGVs and heavy-duty applications
  • Impact and chemical resistant
  • Flame retardant (Class Bfl-S1)
  • Excellent abrasion and slip-resistant (R10 Rated)
  • Reduces worker fatigue
  • Withstands tight turning circles
  • Smooth and raised disk options
  • Ideal for uneven or damp floors
  • Expected lifespan of 20+ years

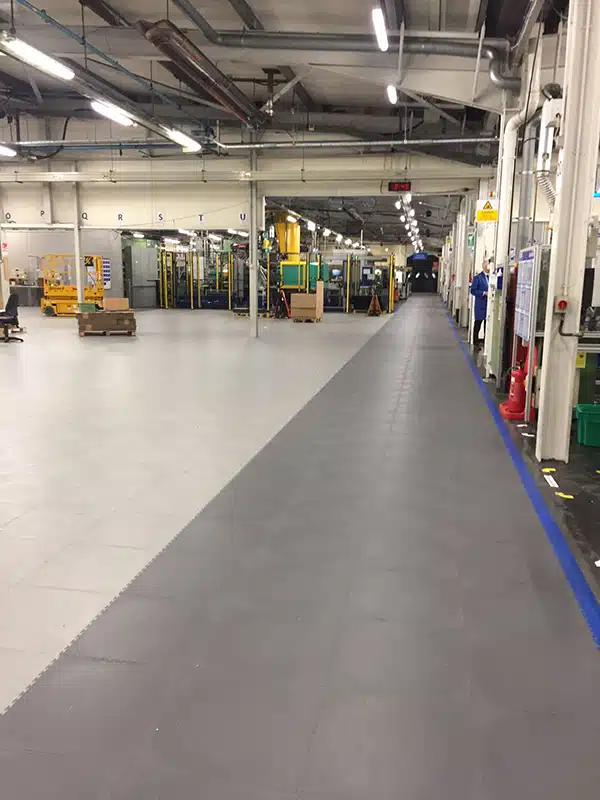

  • Create coloured zoning and walkways
  • Easy to clean and maintain
  • Dovetail joint – T-joint as standard
  • Hassle-free installation – Install without downtime
  • Exceptionally durable
  • Noise reduction of up to 46db
  • No damp proof membrane, screed or adhesives required
  • Reduces dust and insulates the floor from cold
  • 10 year warranty
  • No curing times required
  • No additional toxic chemicals, 100% recyclable
  • CE approved
  • RoHS and REACH compliant



Call +44(0)1793 511000 or email sales@bondline.co.uk to get a free, no-obligation quote.

If you’d like our install team to lay the floor tiles for you, let us know when discussing your quote.

Additional information

Select a product:

Interlocking Industrial Floor Tiles – Custom

Applications

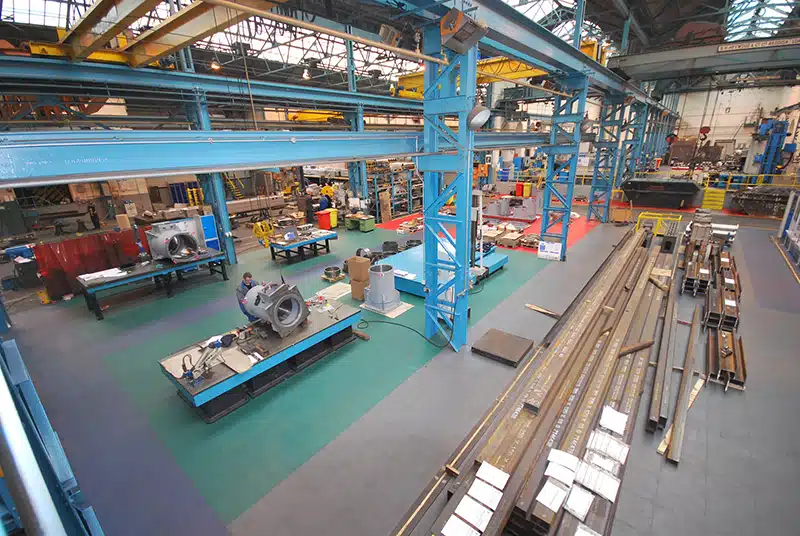

  • Factories & Warehouses
  • Railway Stations & Airports
  • Shops & Offices
  • Schools & Colleges
  • Garages & Workshops
  • Exhibitions & Point of Sale
  • Sports & Leisure Facilities
  • Prisons, Police & Fire Stations

Colours

(Please note: Raised disk tiles are only available in black, dark blue and graphite.)

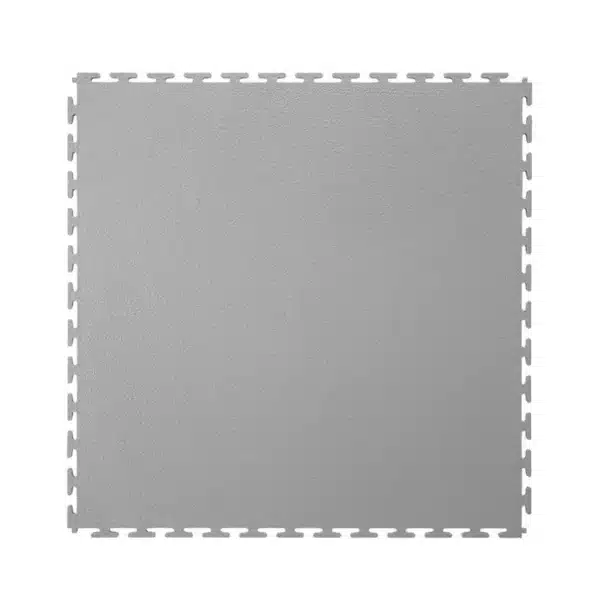

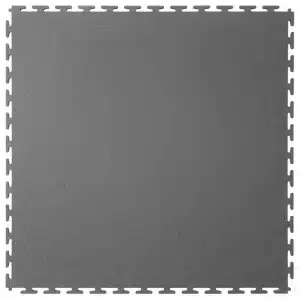

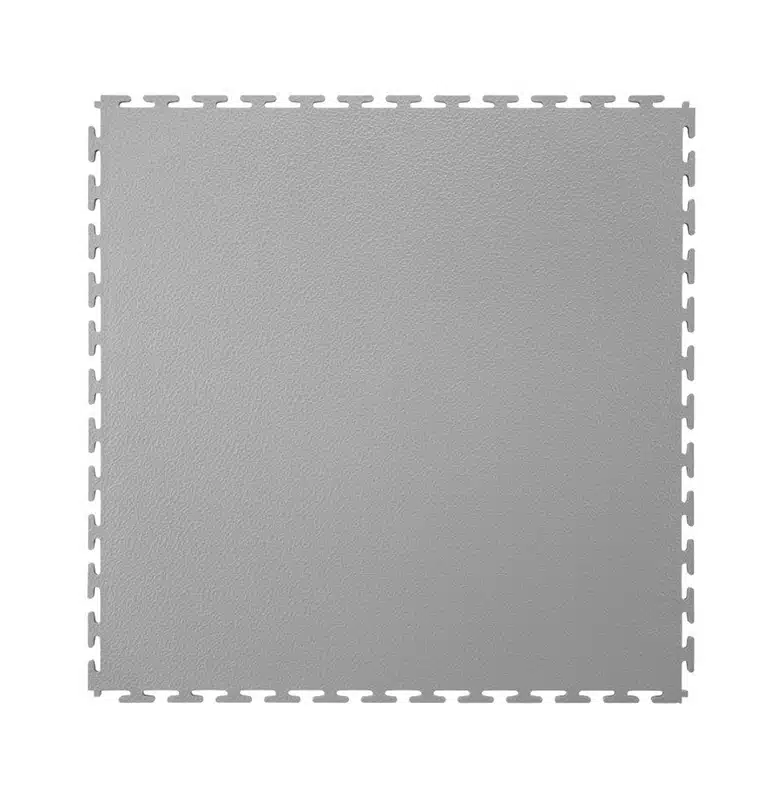

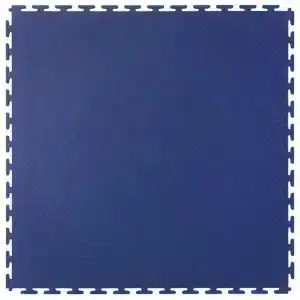

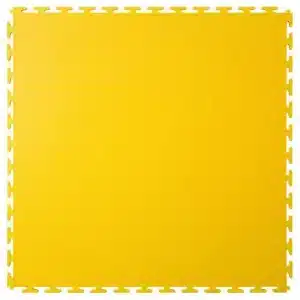

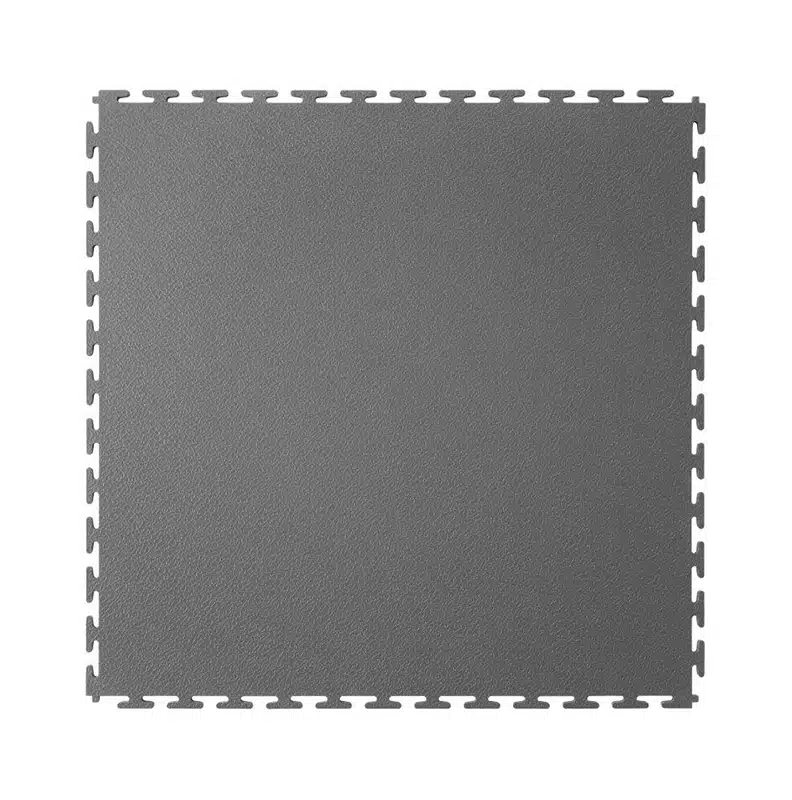

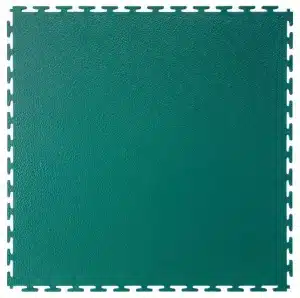

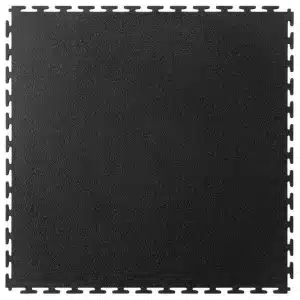

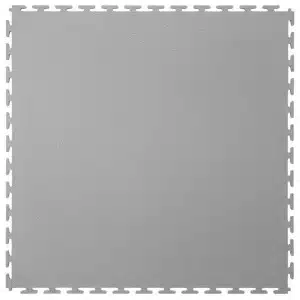

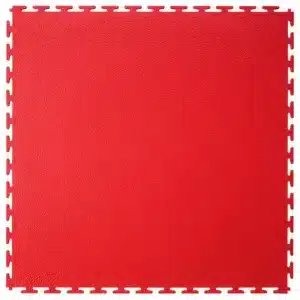

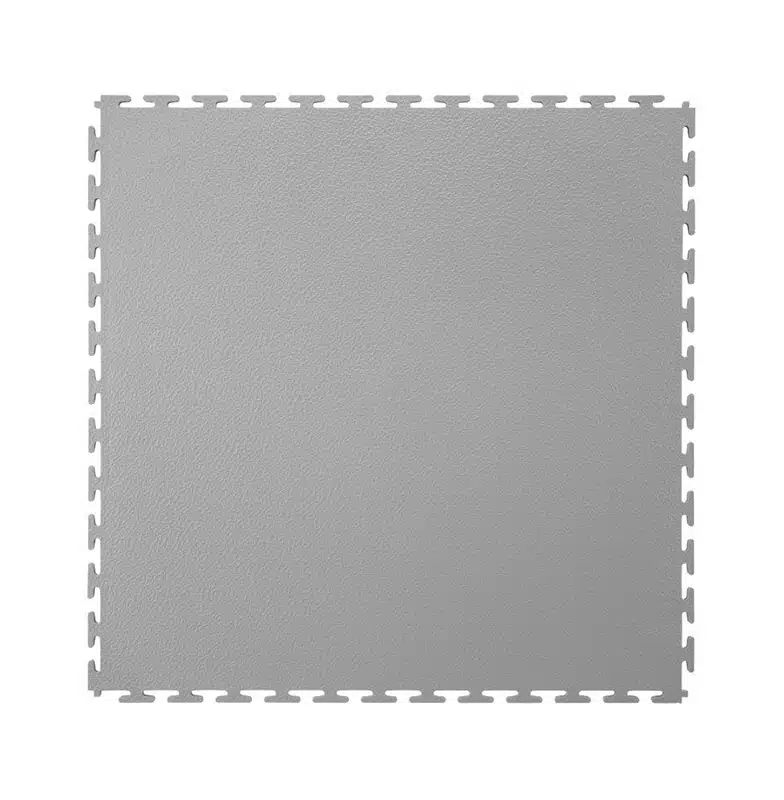

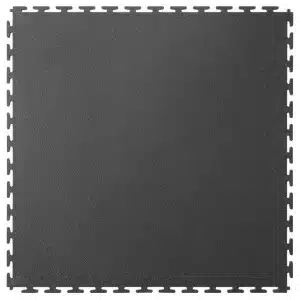

Interlocking industrial floor tile in black. Dovetail joint. Available at Bondline. Interlocking industrial floor tile in dark blue. Dovetail joint. Available at Bondline. Interlocking industrial floor tile in green. Dovetail joint. Available at Bondline. Interlocking industrial floor tile in red. Dovetail joint. Available at Bondline. Interlocking industrial floor tile in yellow. Dovetail joint. Available at Bondline.Interlocking Industrial Floor Tile in light grey. Bondline. Interlocking Industrial Floor Tile in dark grey. Bondline.Interlocking industrial floor tile in graphite. Dovetail joint. Available at Bondline.

Specifications

Material: PVC

Dimensions: 500mm x 500mm

Thickness: 7.6mm variations +/- 0.3mm

Weight: 9kg/m2

Hardness: 90-92 Shore A

ESD Version: Yes

Thermal Insulation Properties: R Value – 1.58

Sound Insulation Properties: Up to 46db

Fire Rating: Bfl-S1

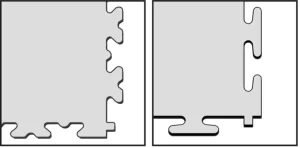

Joint: T-Joint (right image) as standard. X-Joint (left image) can be requested.
Interlocking Industrial Floor Tile Joints - X-Joint and T-Joint illustration. Bondline.

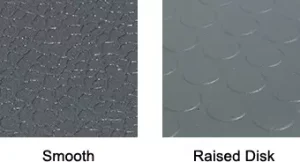

Finish: Smooth or Raised Disk (Raised Disk only available in T-Joint design)


Installation

Self-Install

To install the floor tiles by yourself, please see our instruction guide.

Professional Installation Service

Bondline can offer a complete supply, deliver and install package for all floor tiles on our website. With over 35 years of experience, our professional installation team can install all types of flooring at your site from interlocking floor tiles to raised access floor panels.

With our expertise, our team will ensure the chosen flooring solution is fitted to a high standard and works alongside your designated area. Our team are always on hand to answer any questions you may have throughout the whole process.

As part of our installation service, our team will establish your requirements, conduct a full site survey and offer their advice on the best type of solution for your requirement.

If you would like our install team to lay the floor tiles for you, please let us know on +44 (0)1793 511000 or sales@bondline.co.uk when discussing your quote.

Technical Datasheet

Interlocking Industrial Floor Tiles – Technical Datasheet
