A Trusted UK Supplier Of ESD Control Products Since 1986

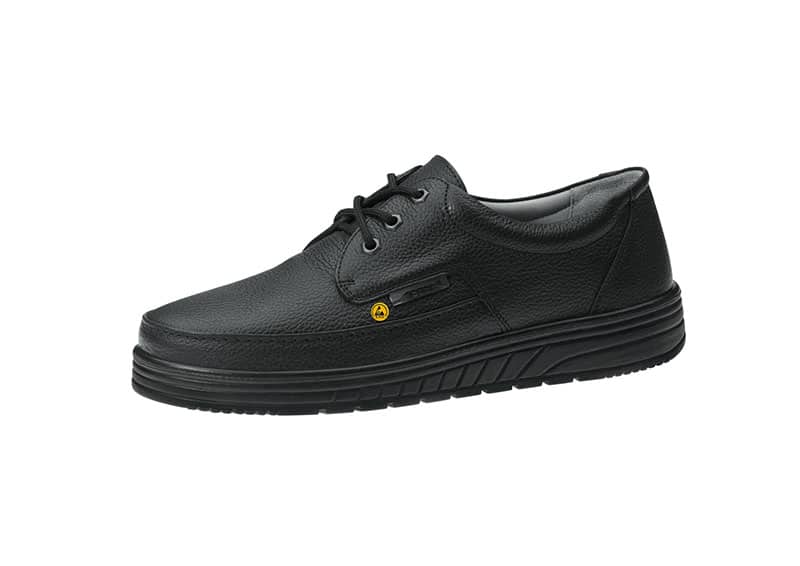

ESD-Occupational Lace-Up Shoes in the colour black. Specially developed with air cushion technology to provide ultimate comfort for all day wear. The ‘ESD Black Lace-Up Shoe 32610’ is available in multiple sizes (European size 35-47) or (UK size 2.5-12). Suited for operators and managers who are on their feet for long periods of time. Please contact us for a detailed quotation or for a catalogue of the full range. See description for its special properties.
£9,999.00 excl. VAT

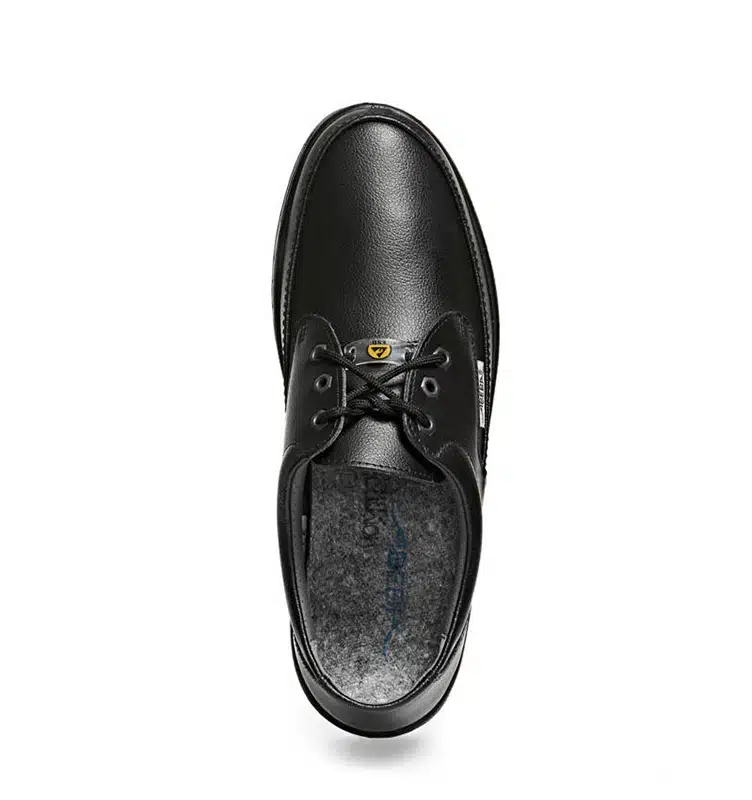

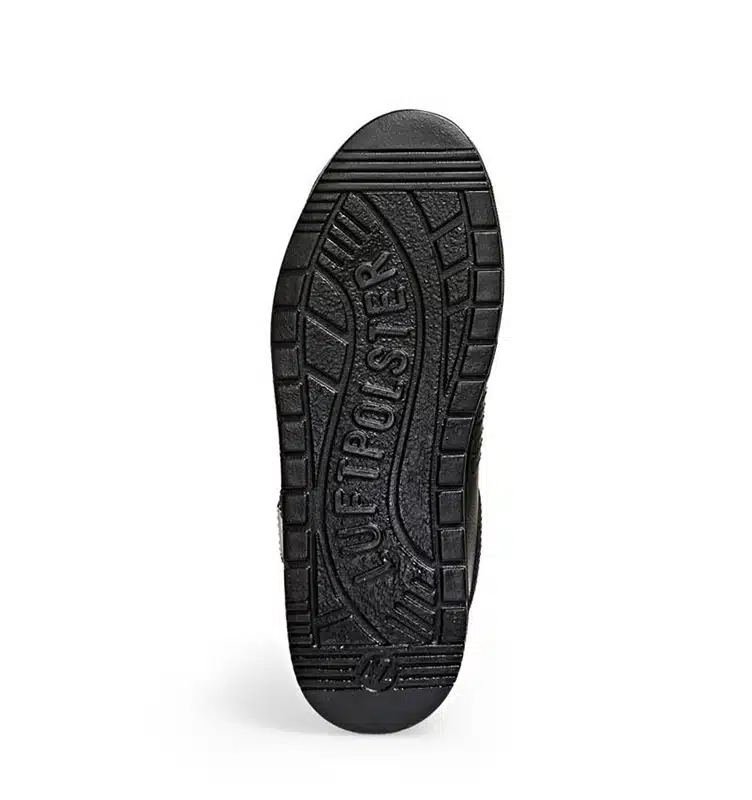

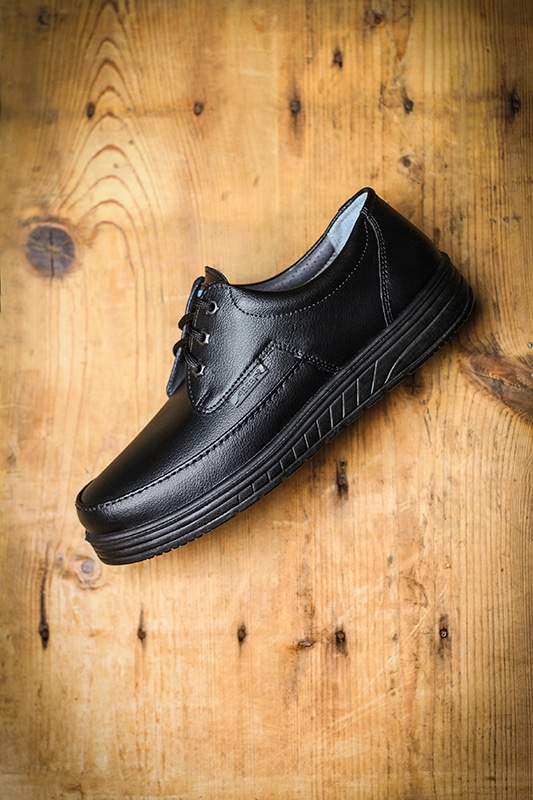

Bondline’s ESD Black Lace-Up Shoe is made with a grain leather upper, a respiration absorbing microfibre lining, and a fabric insole. The air cushion technology ensures comfort for operators who are on their feet for long periods of time. The shoes are easy to fasten and have a good heel gradient to relieve strains on joints. The ideal footwear solution for managers who require static protection.
ABEBA is one of the largest and most modern shoe manufacturers in Europe with customers in more than 30 countries worldwide. Their shoes are specially designed to provide ultimate protection, lightness, full control, a healthy foot climate and best wearing comfort for an every day use.
Please contact us for a complete list of our range.
| Select a product: | ESD Black Shoe – 32610 |
|---|
All ESD shoes are certified in keeping with EN61340-4-3, climate class 1. The climate classes generally stand for the electrostatic behaviour of the shoes.
The classification is based on electrical measurements performed under precisely defined conditions that we have listed for you in the table below.
| Climate Class | Pre-treatment | Conditioning | Measurement |
|---|---|---|---|
| 1 | 1 96 (+10) h (40 +/- 3) °C RH < 15 % |
96 (+10) h (23 +/- 2) ° C (12 +/- 3) % RH |
(23 +/- 2) °C (12 +/- 3) % RH |
| 2 | 2 96 (+10) h (23 +/- 2) °C (25 +/- 3) % RH |
(23 +/- 2) °C (25 +/- 3) % RH |
|
| 3 | 3 48 (+ 5) h (23 +/- 2) °C (50 +/- 5) % RH |
(23 +/- 2) °C (50 +/- 5) % RH |
h = duration in hours, °C = temperature, % RH = relative humidity
The differences between the various climate classes 1, 2 and 3 are mainly based on the relative air humidity of the test environment, with the air humidity affecting the tested shoes‘ electrostatic discharge behaviour. This is why shoes are tested in an environment with 50 % air humidity to establish their suitability for climate calls 3, and at an air humidity of 25 % for climate class 2. Inclusion in climate class 1 is achieved by successfully passing the test at 12% air humidity. All the tests are meanwhile applied at a temperature of 23°C.
As a general rule, the higher the air humidity is in the environment, the greater will the shoes‘ discharge capacity be. Accordingly, a shoe certified as climate class 1 is best suited for discharging electrostatic charges to the earth ground potential. These shoes even possess the discharge capacity required to avoid electrostatic discharges in very low air humidity and with dry materials. All the other environmental factors capable of affecting electrostatic discharges, such as an insulating floor or insulating deposits on the outer soles of the shoes, should also be taken into account, however.
Our sales and technical team are available to support you with any questions you may have regarding our products, services and more.
To contact our team, please fill in the form below or click here.
|
|
On selected products if ordered before 1pm
Dedicated account manager to help your ordering process
Great value on premium quality products
Bondline Electronics Ltd are a leading manufacturer and supplier of static control products within the ESD industry. Products such as Flexible and Rigid Packaging, Bench Matting, Wrist Straps, Heel Grounders and Shoes, ESD Protective Clothing and Gloves, Test and Measurement Equipment along with many storage and handling solutions.
Bondline products are all qualified and compliant according to IEC-61340-5-1 International Standard.
