Anti-Fatigue ESD Matting

Static dissipative, PVC, anti-fatigue ESD matting is designed to protect the operator from static build-up and provide comfort underfoot. Anti-fatigue matting can reduce the health dangers of standing for long periods of time; especially on hard, cold floors. This matting is generally used around machinery where static build up is common.

£9,999.00 excl. VAT

Description

Anti-fatigue ESD matting can help to reduce the health dangers of standing for long periods of time at work; especially on hard, cold floors. Anti-fatigue matting can help to increase blood flow and improve circulation. In the absence of appropriate flooring, prolonged standing can lead to musculoskeletal disorders such as pain in the lower back, legs, feet, and joints, etc. As well as providing comfort underfoot to reduce aches and pains from standing at work, anti-fatigue matting can also help to prevent static build-up with its excellent static dissipative properties.

Anti-fatigue ESD matting is made with a PCV foam (polyvinyl chloride), offering good durability and excellent resistance to a wide range of chemicals. The matting comes with a 10mm male stud for grounding the mat to Earth. The matting should be used in conjunction with already grounded flooring for optimum ESD protection. Anti-fatigue matting is commonly used around machinery where static build-up is common. It is not to be used in high voltage areas exceeding 240 volts or to be used with electrical switchboard matting.

Anti-fatigue ESD matting is grey in colour with a pebble surface finish. It is tested to EN14041 standards and has a resistance of 1 x 10^(9) ohms to 1 x 10^(10) ohms. Suitable for dry indoor requirements. The recommended method to install anti-fatigue matting is to loose lay.

Please note: IPA wipes, normal cleaners or general anti-bacterial products are not recommended to be used for cleaning the ESD matting.

Key Features:

  • PCV foam (polyvinyl chloride)

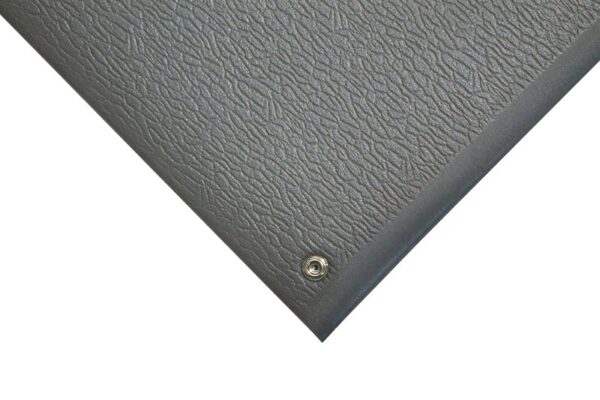

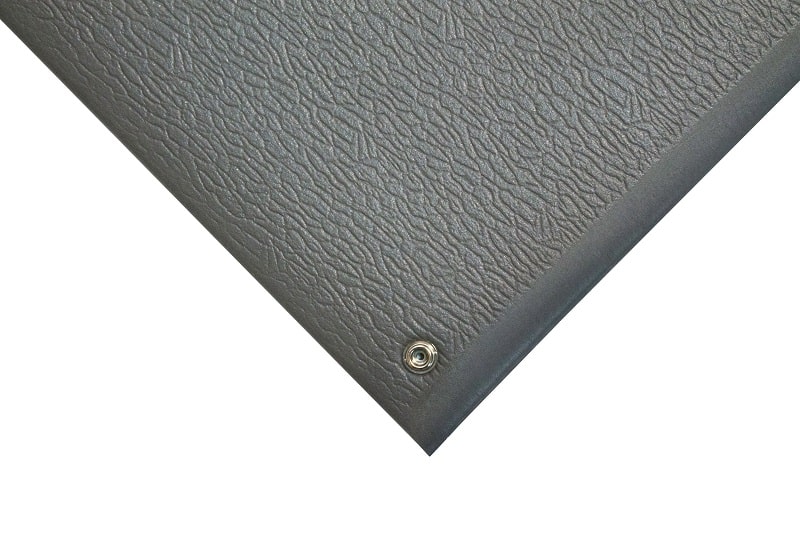

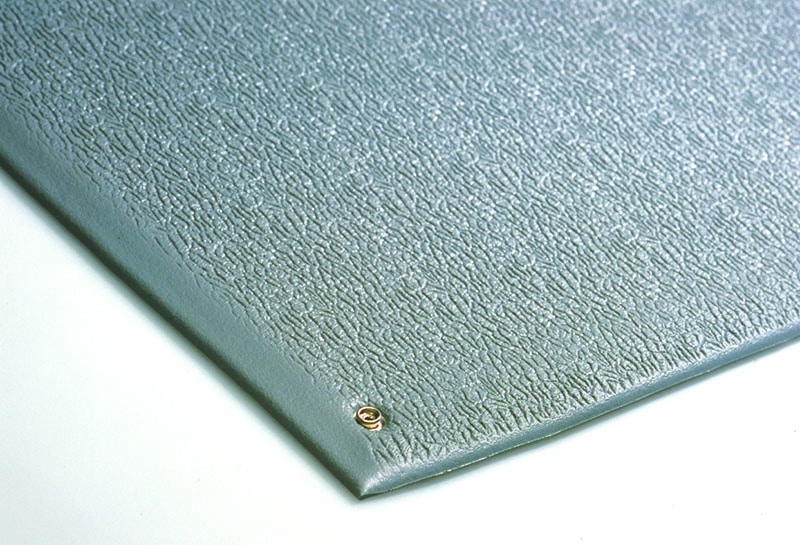

  • Pebble surface finish
  • Standard colour is grey
  • Select from a range of sizes including: 0.6 x 0.9m, 0.9 x 1.5m and 0.9 x 18.3m
  • Option to customise the length on request: 0.9x per linear meter
  • Durable with excellent resistance to most chemicals
  • Improves underfoot comfort
  • Grounded via a 10mm male stud fitted to the matting
  • Resistance of 1 x 10^(9) ohms to 1 x 10^(10) ohms
  • Reduces health dangers of standing for long periods of time
  • Prevents static build-up with its static dissipative properties
  • Tested to EN14041 standards

Specification:

  • Material: Virgin closed cell PVC foam (homogenous).
  • Thickness: 9mm.
  • Surface Finish: Pebble.
  • Operating Temperature: 0-+60°C.
  • Resistance to Chemicals: PVC is resistant to many different chemicals, alkalis and general industrial chemicals. Resist alcohol, aliphatic hydrocarbons, oils, weak acids, strong mineral acids and alkalis. Resists oil and grease if properly cleaned.
  • Environmental Resistance: Suitable for dry indoor requirements.
  • Typical Applications: Around machinery where static build up is common. Not to be used in high voltage areas exceeding 240 volts or to be used with electrical switchboard matting.
  • Installation Method: Loose lay.
  • Cleaning Method: Brush or mop the top surface.
  • Flame Retardancy: Conforms to FMVSS302, will not burn after the ignition source is removed. When forced to burn, carbon monoxide, carbon dioxide and hydrogen chloride fumes are emitted.

ESD Standards & Regulations Compliance:

ESD safe label - Bondline IEC-61340-5-1 CE Icon WEB-min-alt CE approved
bondline RoHS compliant bondline REACH compliant

*Due to variations in computer monitor displays, colour shown may not be exact.*

*All bespoke cut mat sizes will have a +/-10% manufacturing tolerance dependent on size.*

Browse our full range of ESD floor matting.

Additional information

Weight 55 kg
Select a product:

AFL – Anti-Fatigue Matting – 900mm x 18.3m, AFM – Anti-Fatigue Matting – 900mm x 1.5m, AFS – Anti-Fatigue Matting – 900mm x 600mm

Customisation

If you would like to customise the size or studding of our anti-fatigue ESD matting, please get in touch with our sales team on 01793 511000, sales@bondline.co.uk or enquire below.

Please note, all bespoke cut mat sizes will have a +/-10% manufacturing tolerance dependent on size.

Technical Datasheet

Anti-Fatigue ESD Floor Matting: Technical Datasheet

Contact Us

Our sales and technical team are available to support you with any questions you may have regarding our products, services and more.

To contact our team, please fill in the form below or click here.
