Piergiacomi Cutters

Bondline offer a wide variety of Piergiacomi Cutters to suit all requirements and applications. Cutters are available in a range of sizes and shapes. Piergiacomi Cutters all have ergonomic dissipative handles except TRE03NB. Clearance price valid while stocks last.

Special Offer

£9.95£9,999.00 excl. VAT

Description

Full range of Piergiacomi Cutters, all have ergonomic dissipative handles except TRE03NB.

RoHS and REACH compliant. Meets IEC-61340-5-1 International Standard.

Full product specifications for choosing the best cutter for your requirement

About Piergiacomi

The Piergiacomi Sud s.r.l. was founded in 1979 thanks to the intuition and experience gained by the founder members in the company they inherited from their parents, a company that was founded in 1923. This company, still operating, occupies an important place in the supply of industrial equipment and raw materials. The intention of the new company was to develop an idea that was born about three years earlier. The founders were convinced that certain tools, used in the new sector of electronics applied to musical instruments – a very important one for the economy of the area – could be made with other materials and techniques, with enormous advantages, above all as far as cost was concerned, with respect to those used at the time and imported from Switzerland, Germany and the U.S.A. From that time Piergiacomi has developed widely, becoming the leader in its field in the manufacture of hand tools, in shearing, in electronics and in parts, in the electro-technical field. In fact, no other manufacturer has a range of tools as wide as Piergiacomi: more than 400 different types of tools, well known and sought after by the industrial electronics market worldwide under the name of “Piergiacomi Quality Hand tools”.

Cutter Options

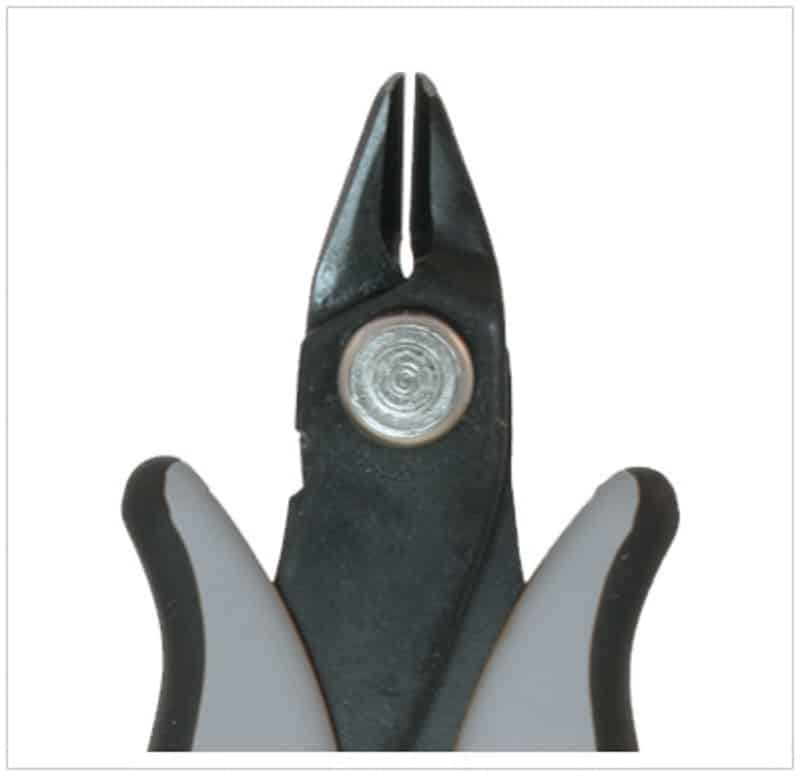

TR30D

Medium series. Tool for a flush cut.
Tool length 138mm.

Cutting Force (Kg)     Copper Wire (ø mm)     Copper Wire (awg)
5.5                                       1.30                                          16

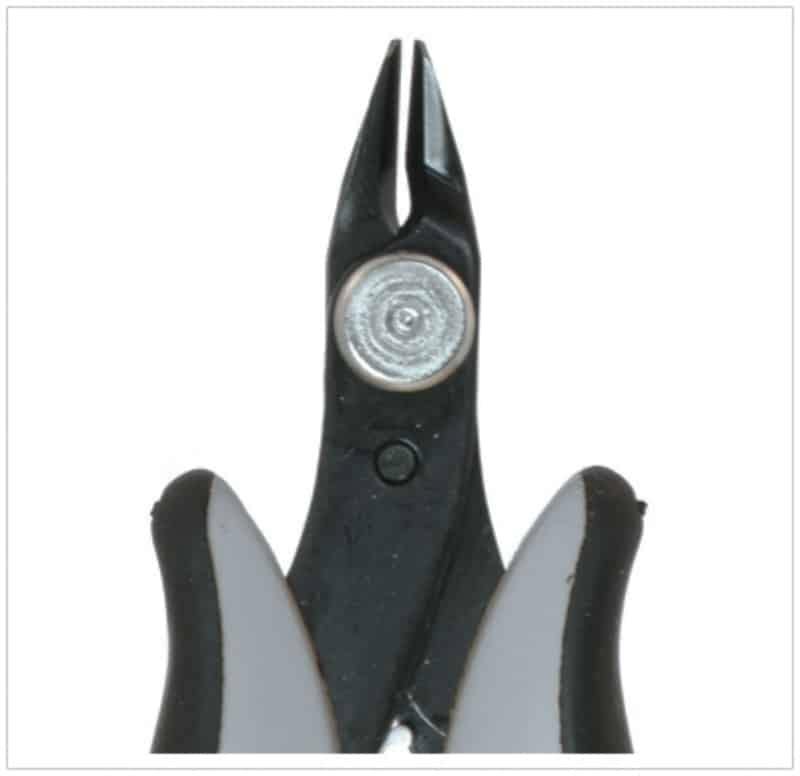

TR20MD

Micro series. Tool for a flush cut. The reduced head’s dimension and its pointed shape, allow access to difficult to reach areas.
Tool length 132mm.

Cutting Force (Kg)     Copper Wire (ø mm)     Copper Wire (awg)
3                                          0.81                                          20

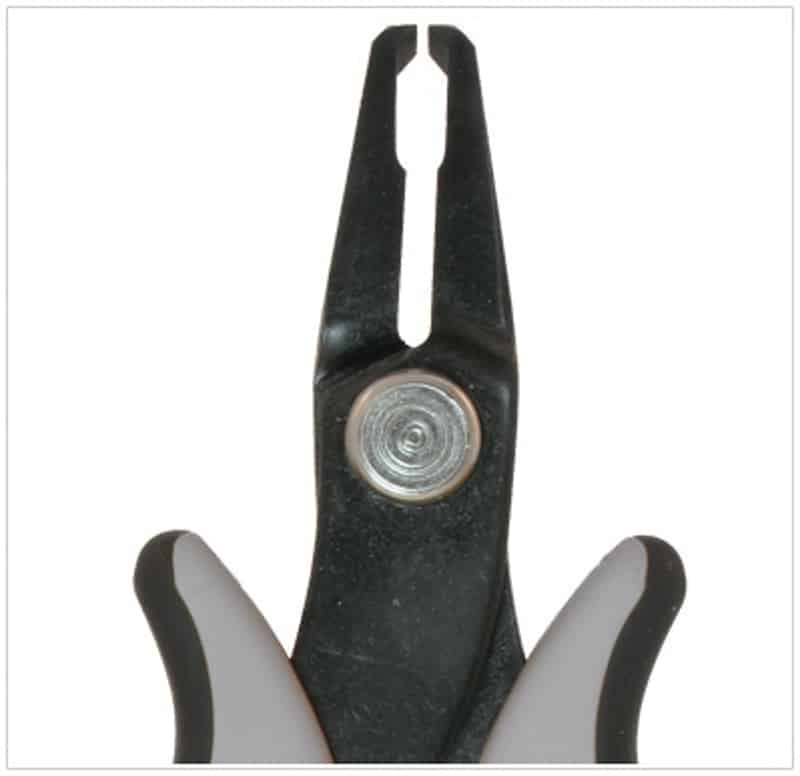

TR30VD

Medium series. Tool for a clean, flush cut. The special 60° angle permits the tool to be easily used in difficult to reach areas.
Tool length 144mm.

Cutting Force (Kg)     Copper Wire (ø mm)     Copper Wire (awg)
3                                          1.02                                          18

TR3058D

Medium series. Tool for a chamfered cut. The special treatment of blades make this tool particularly suitable for the cutting of ferrous material.
Tool length 138mm.

Cutting Force (Kg)     Copper Wire (ø mm)     Copper Wire (awg)
8.5                                       1.63                                          14

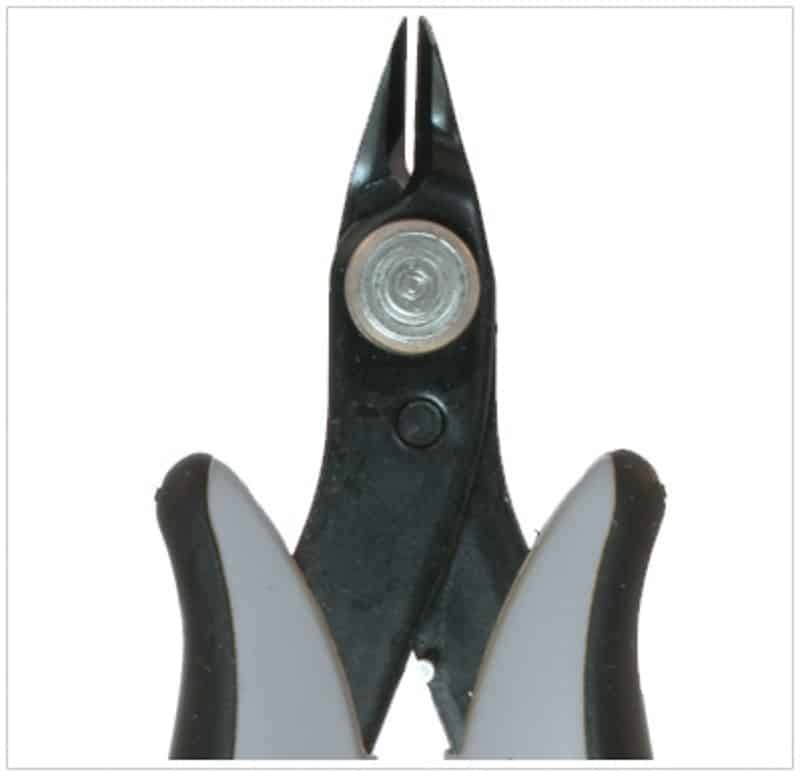

TR25PD

Micro series. Tool for a flush cut. With very sharp cutting edges, it is ideal for very delicate work in electronics, allowing access to difficult to reach areas.
Tool length 133mm.

Cutting Force (Kg)     Copper Wire (ø mm)     Copper Wire (awg)
3.5                                       1.02                                          18

TRR58GD

Macro series. Very strong tool for a flush cut, suitable for general assembly.
Tool length 160mm.

Cutting Force (Kg)     Copper Wire (ø mm)     Copper Wire (awg)
1.5                                       2.59                                          10

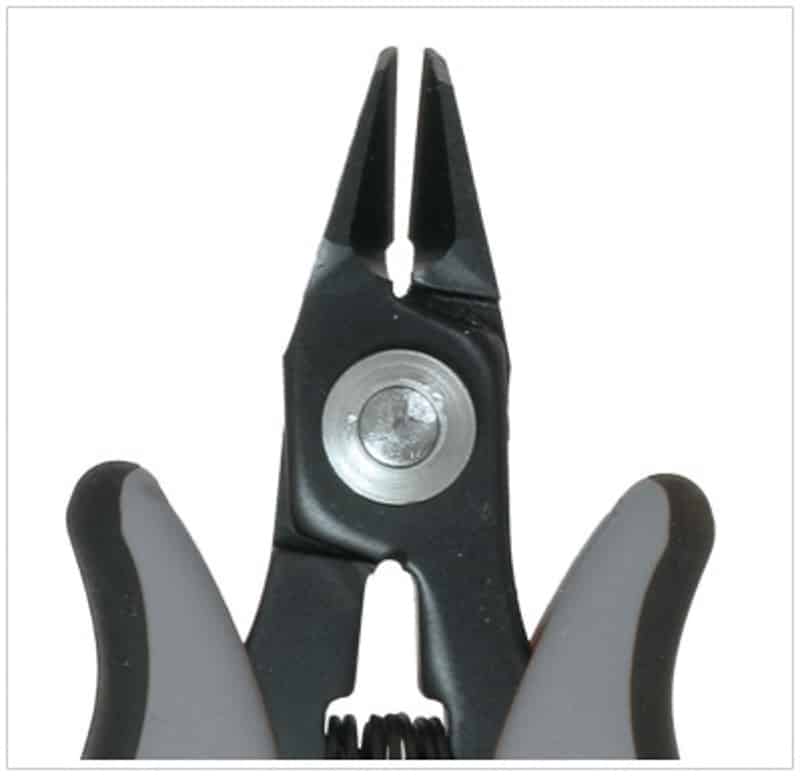

TR5000PD

Macro series. Strong tool for a chamfered cut with pointed cutting blades.
Tool length 138mm.

Cutting Force (Kg)     Copper Wire (ø mm)     Copper Wire (awg)
8                                          1.63                                          14

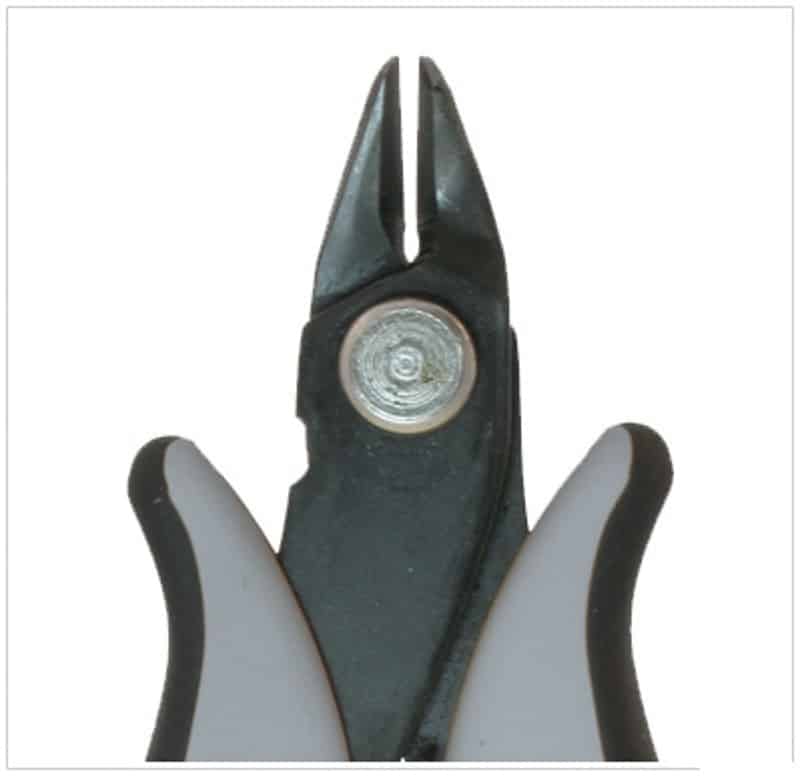

TR3058RD

Medium series. Tool for a flush cut. Due to the special treatment of the blades, it is suitable for cutting ferrous material.
Tool length 138mm.

Cutting Force (Kg)     Copper Wire (ø mm)     Copper Wire (awg)
6.5                                       1.63                                          14

Full range of ESD Hand Tools

Additional information

Weight N/A
Select a product:

CLEARANCE TR25PD – Steel Thickness 2.5mm – Tool Length 133mm, CLEARANCE TR3058D – Steel Thickness 3.0mm – Tool Length 138mm, CLEARANCE TR5000PD – Steel Thickness 5.0mm – Tool Length 138mm, CLEARANCE TRR58GD – Steel Thickness 3.0mm – Tool Length 160mm

Downloads

Click here for the full product specifications for choosing the best cutter for your requirement.

Contact Us

Our sales and technical team are available to support you with any questions you may have regarding our products, services and more.

To contact our team, please fill in the form below or click here.
