Conductive Universal Panel Carrier

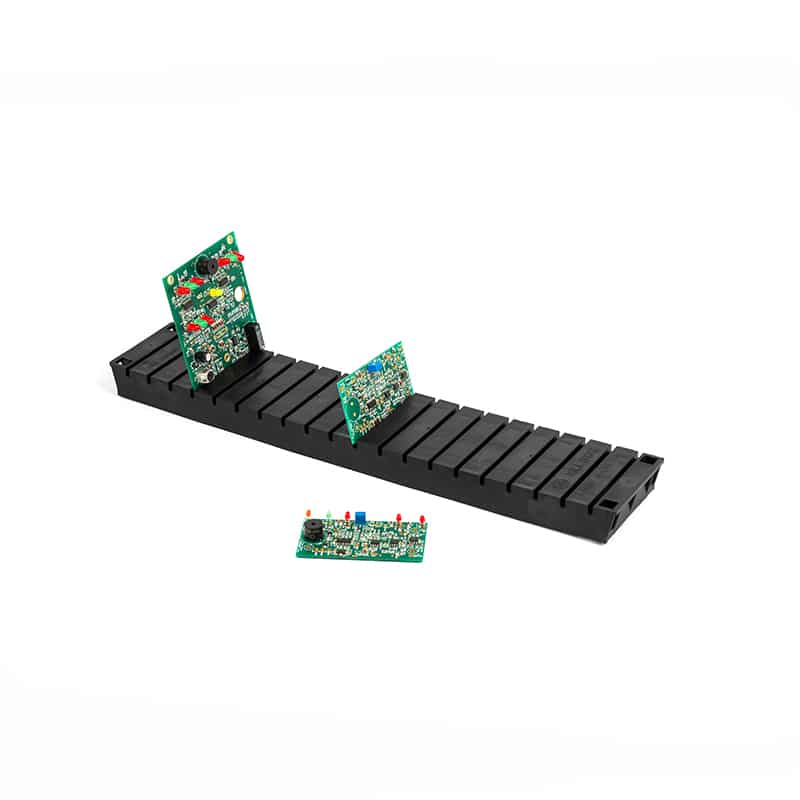

UK manufactured moulded conductive universal panel carrier from Bondline, now only £6.25! Offers a very convenient method of storing and shipping components in an assembly area. For safe use in static controlled areas. Universal panel carriers are 400 x 77mm in size. They feature 20 slots and have a maximum board thickness of 3.0mm wide. Clearance price valid while stocks last.

£6.25 excl. VAT

Description

UK manufactured conductive universal panel carrier from Bondline, now only £6.25! These robust, moulded conductive universal panel carriers offer a very convenient method of storing and shipping components in an assembly area. The universal panel carriers are moulded with black conductive polypropylene, carbon loaded for the safe protection of CMOS assembled boards. Made with a rigid carbon infused material, these conductive universal panel carriers are also stackable for space saving. For use in static controlled areas where the racks provide a conductive path to ground.

Product Features:

  • Maximum board thickness 3.0mm wide
  • Dimensions: 400 x 77mm – 20 slots
  • Electrical resistance RV: 10^(3) to 10^(5) Ω
  • Strong rigid construction
  • Stackable for space saving storage
  • Recommended maximum operating temperature is 75°C
  • Moulded from black conductive polypropylene
  • Ideal for the transportation or storage of PCBs
  • Manufactured in the United Kingdom
  • Compliant according to IEC-61340-5-1 International Standard
  • RoHS and REACH compliant
Made in the UK logo UK Manufactured

Application:

  • Storage of PCBs or CMOS assembled boards
  • Holding components during maintenance and repair
  • Transporting components (within assembly areas)

Standards and Regulations Compliance:

ESD safe label - Bondline IEC-61340-5-1 / EN-61340-5-1 compliant bondline RoHS compliant
CE Icon WEB-min-alt CE approved bondline REACH compliant



Discover our full PCB Rack range.

Additional information

Select a product:

CLEARANCE UPCKS – Conductive Universal Panel Carrier

Technical Datasheet

PCB Racks: Technical Datasheet
