Description

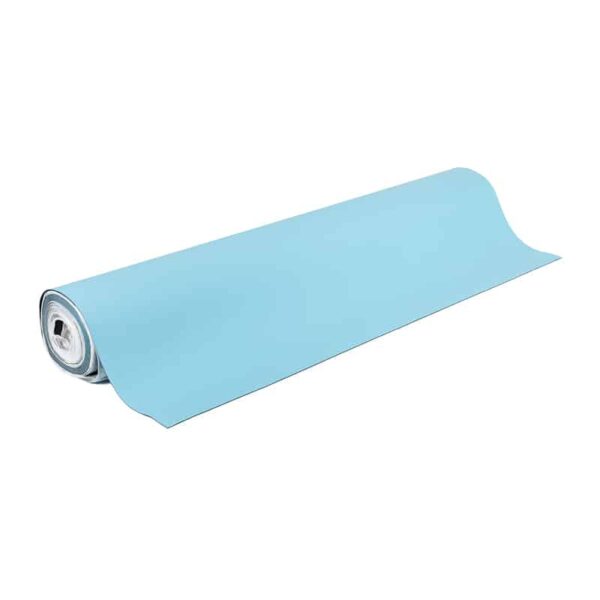

Mid-range, ESD Bench Mat 4 x 2ft in light blue, now only £14.95! A 4 x 2ft Light Blue ESD Bench Mat with textured, scratch resistant surface. Made with a thick synthetic rubber material, comprised of two layers: a static dissipative top and black conductive backing. Ideal for electronics manufacturing environments, providing excellent static protection.

The dissipative top layer of the mat is resistant to abrasion, heat, solders flux and most commonly used solvents. The mat’s black conductive backing provides a superior and consistent ground path to Earth. The mat is 2mm thick and 4 x 2ft in size (1.20m x 610mm).

The ESD Bench Mat allows static electricity to transfer safely to ground while protecting the surface of the static sensitive components during production and assembly. Certified for RoHS and REACH regulations and compliant according to IEC-61340-5-1 International Standard.

Product Features:

• 4ft x 2ft (1.20m x 610mm)
• Light blue
• Durable, synthetic rubber material, 2mm thick

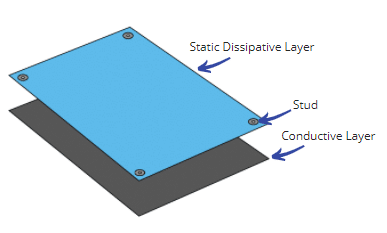

• 2-layers: static dissipative top, conductive backing
• Typical resistance to ground = 10⁶ – 10^{8 ohms}
• Scratch resistant, heat resistant and UV resistant
• Textured surface prevents the sliding of components
• Easy to clean with Staticide Mat and Table Top Cleaner
• Can be loose-laid at the workbench, no adhesives required

Standards and Regulations Compliance:

	RoHS compliant		European Conformity
	REACH compliant		IEC-61340-5-1 / EN61340-5-1 / US ESD Associations ANSI S4.1 and S20.20

Please note: Images are for illustration purposes, colours may vary between different manufacturing batches.
