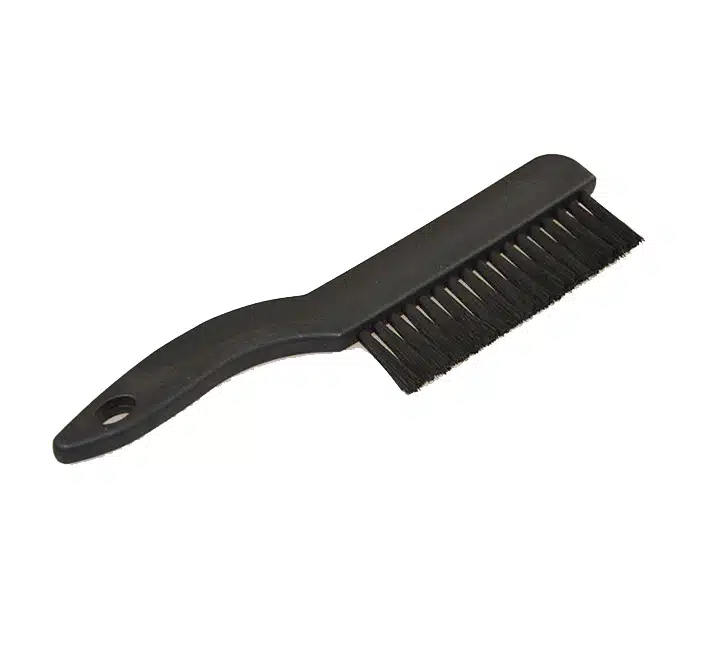

Large Toothbrush Style ESD Brush 252mm

£12.40 excl. VAT

A large, toothbrush style ESD brush measuring a total length of 252mm. Features a long, narrow brush head, perfect for PCB cleaning application. The brush has a conductive polypropylene handle and soft conductive nylon fibre bristles. The multi-use brush allows for the safe cleaning of ESD sensitive assemblies without generating any harmful static charges. Bristle length: 32mm. Length of row: 130mm. 17 holes in 1 line.

SKU: N/A Categories: ,

Description

The KB5106 Large Toothbrush Style ESD Brush 252mm is developed for the safe cleaning of static sensitive components without generating any harmful static charges. The brush has a bristle length of 32mm and row length of 130mm. It features 17 holes in 1 line and does not produce dust particles when in use. The bristles are made with a conductive nylon material and the handle is made with a strong conductive PP material. The KB5106 Large Toothbrush Style ESD Brush 252mm features a long, narrow brush head for PCB cleaning application.

If you have any queries regarding ESD brushes, then please do not hesitate to contact one of our experienced sales team on +44 (0)1793 511000 or send us an email to sales@bondline.co.uk.

Product Features:

  • 17 holes in 1 line
  • Strong conductive polypropylene handle
  • Highly conductive nylon bristles
  • Ensures no harmful charges build up when brushing
  • Safe for use on static sensitive components and assemblies
  • Uses corona discharge to dissipate charges
  • Long, narrow brush head
  • Important tool for any static controlled workstation
  • Black brush handle and bristles

Application:

  • For cleaning delicate components (PC boards and parts, etc.), integrated circuits and workstations surfaces.
  • For both abrasion and residue removal.

Specifications:

  • Total brush length: 252mm
  • Bristle length: 32mm
  • Length of row: 130mm
  • Conductive handle resistance: 10^(4) Ω ~ 10^(6) Ω
  • Dissipative fibre bristles resistance: 1 x 10^(8) – 1 x 10^(10) Ω
  • Standard compliance: ANSI/ESD S20.20*1999 requirements, EN-61340-5-1 / IEC-61340-5-1

Standards and Regulations Compliance:

ESD safe label - Bondline IEC-61340-5-1 / EN-61340-5-1 compliant bondline RoHS compliant
ESD safe label - Bondline Meets ANSI/ESD S20.20*1999 requirements bondline REACH compliant
CE Icon WEB-min-alt CE approved



View our complete ESD brush range with a variety of brush/bristle sizes to suit your application.

Additional information

Select a product:

KB5106 – Large Toothbrush Style ESD Brush – 252mm

Technical Datasheet

Large Toothbrush Style ESD Brush 252mm: Technical Datasheet
